Passenger-Side Air Bag Module Connector End View

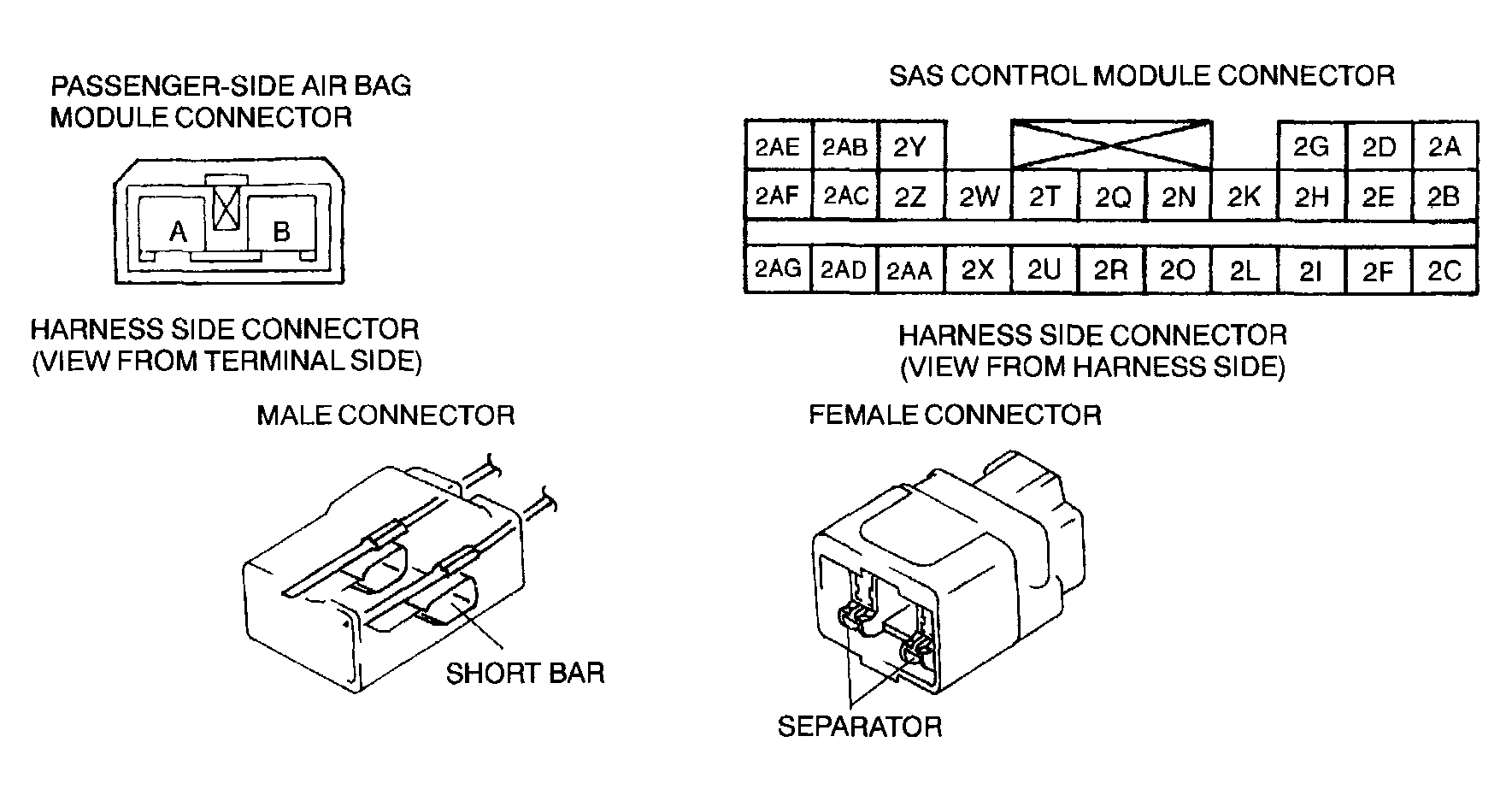

Fig 1: Passenger-Side Air Bag Module Connector End View
G04329034Courtesy of MAZDA MOTORS CORP.


Fig 1: Passenger-Side Air Bag Module Connector End View
G04329099Courtesy of MAZDA MOTORS CORP.


Fig 1: Passenger-Side Air Bag Module Connector End View
G04329095Courtesy of MAZDA MOTORS CORP.
