Rear Door Glass And Guide Removal/Installation

1. Lower or raise the rear door glass so that the distance from the top of the rear door glass at the rear end to the upper part of the front beltline molding is 260 mm {10 in}.
   Fig 1: Rear Door Glass Distance From Beltline Molding

   Courtesy of MAZDA MOTORS CORP.
2. Disconnect the negative battery cable.
3. Remove the sliding door trim. (See SLIDING DOOR TRIM REMOVAL/INSTALLATION .)
4. Remove the rear beltline molding. (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION .)
5. Remove in the order indicated in Fig 2.
6. Install in the reverse order of removal.

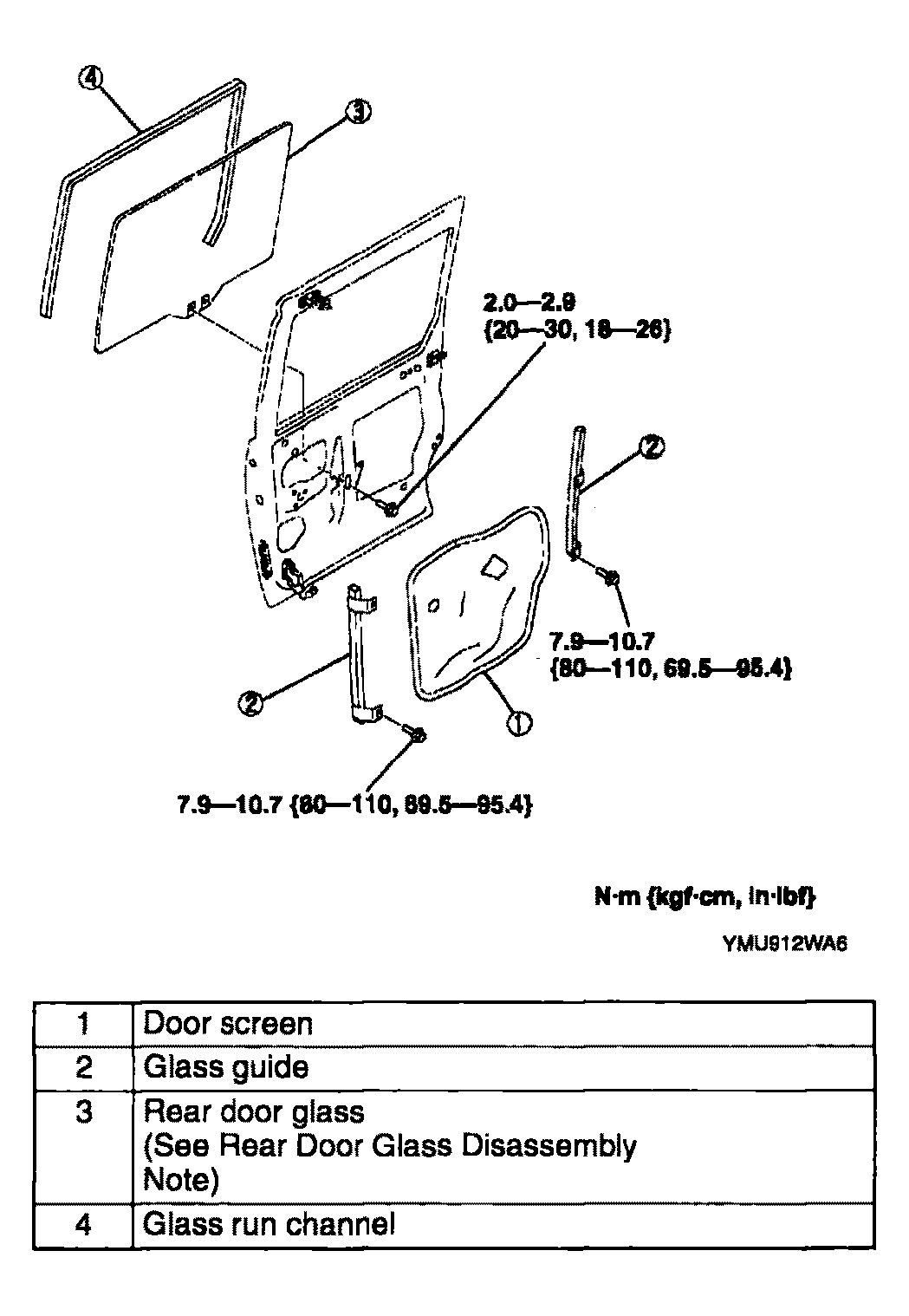

Fig 2: Rear Door Glass And Guide With Torque Specifications

Courtesy of MAZDA MOTORS CORP.
