Second-Row Seat Disassembly/Assembly

  1. Disassemble in the order indicated in Fig 1
  2. Assemble in the reverse order of disassembly.

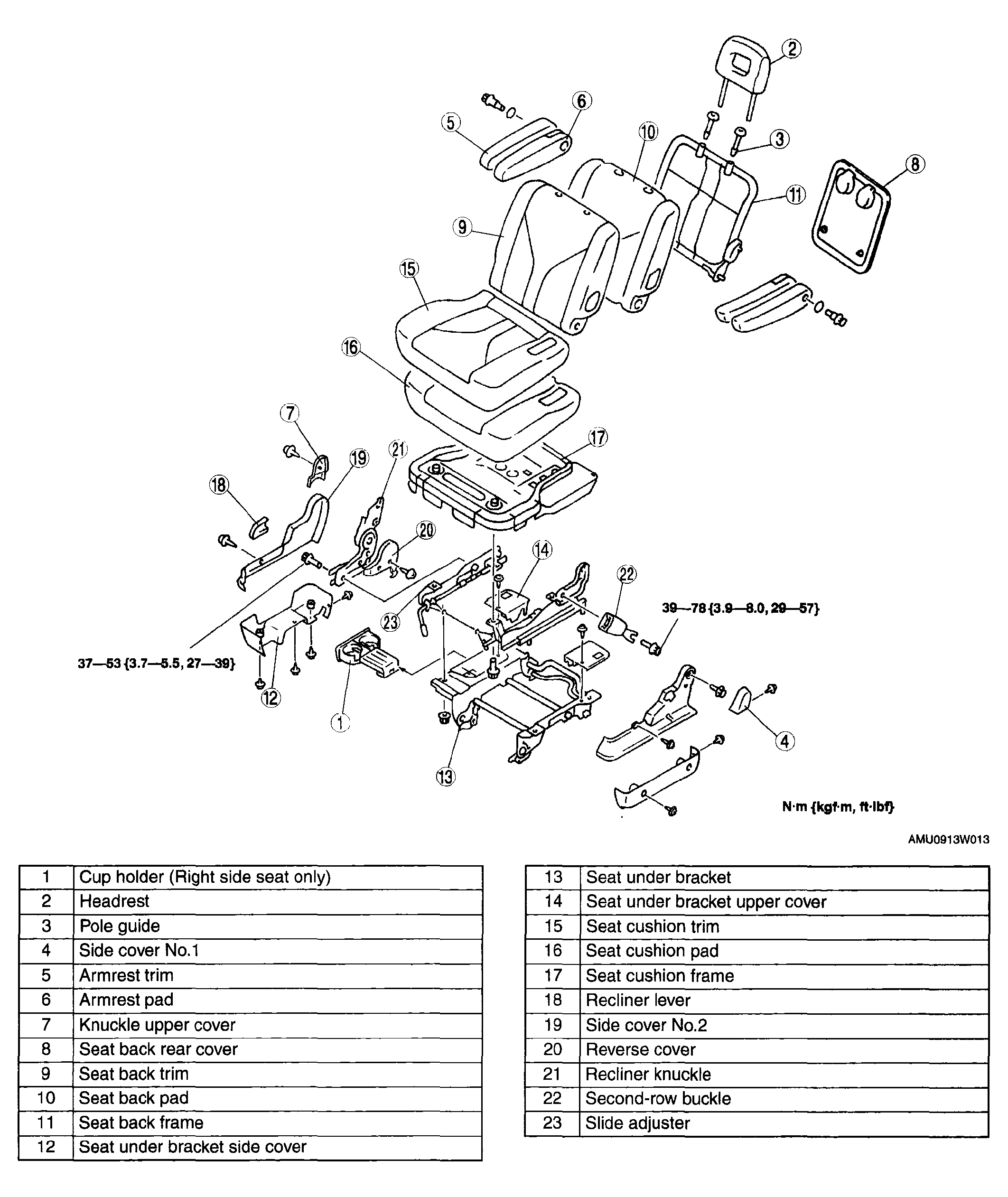

    Fig 1: Exploded View Of Second-Row Seat With Torque Specifications
    G04329496Courtesy of MAZDA MOTORS CORP.
