Liftgate Upper Trim Removal/Installation

1. Pull the liftgate upper trim forward to disengage clips A, pins B and pin C from the body, and remove the liftgate upper trim.
2. Install in the reverse order of removal.

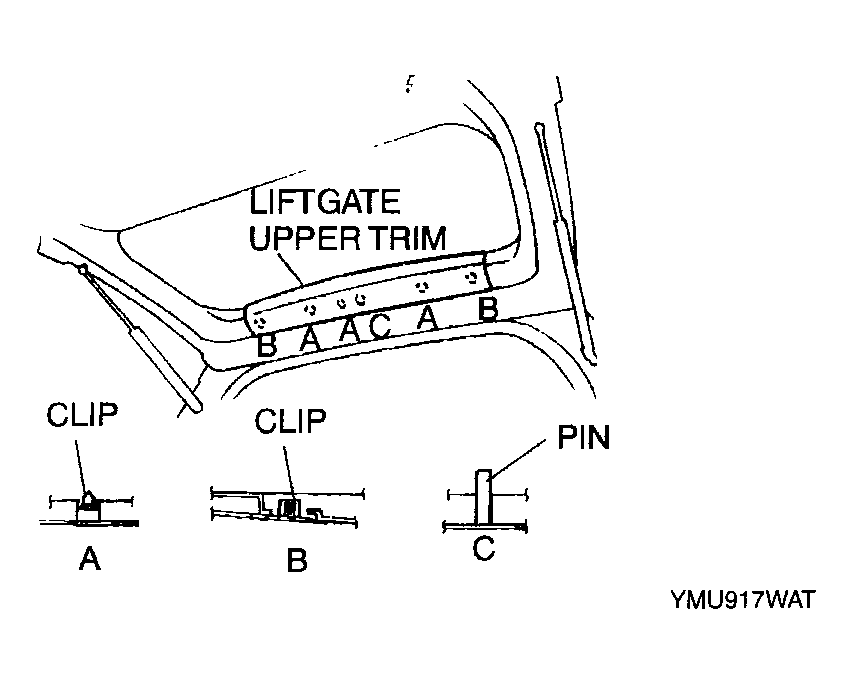

Fig 1: Identifying Liftgate Upper Trim

Courtesy of MAZDA MOTORS CORP.
