TCM Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the floor mat of passenger seat.
  3. Remove in the order indicated in Fig 1.
  4. Install in the reverse order of removal.
  5. Install the floor mat of passenger seat.
  6. Connect the negative battery cable.

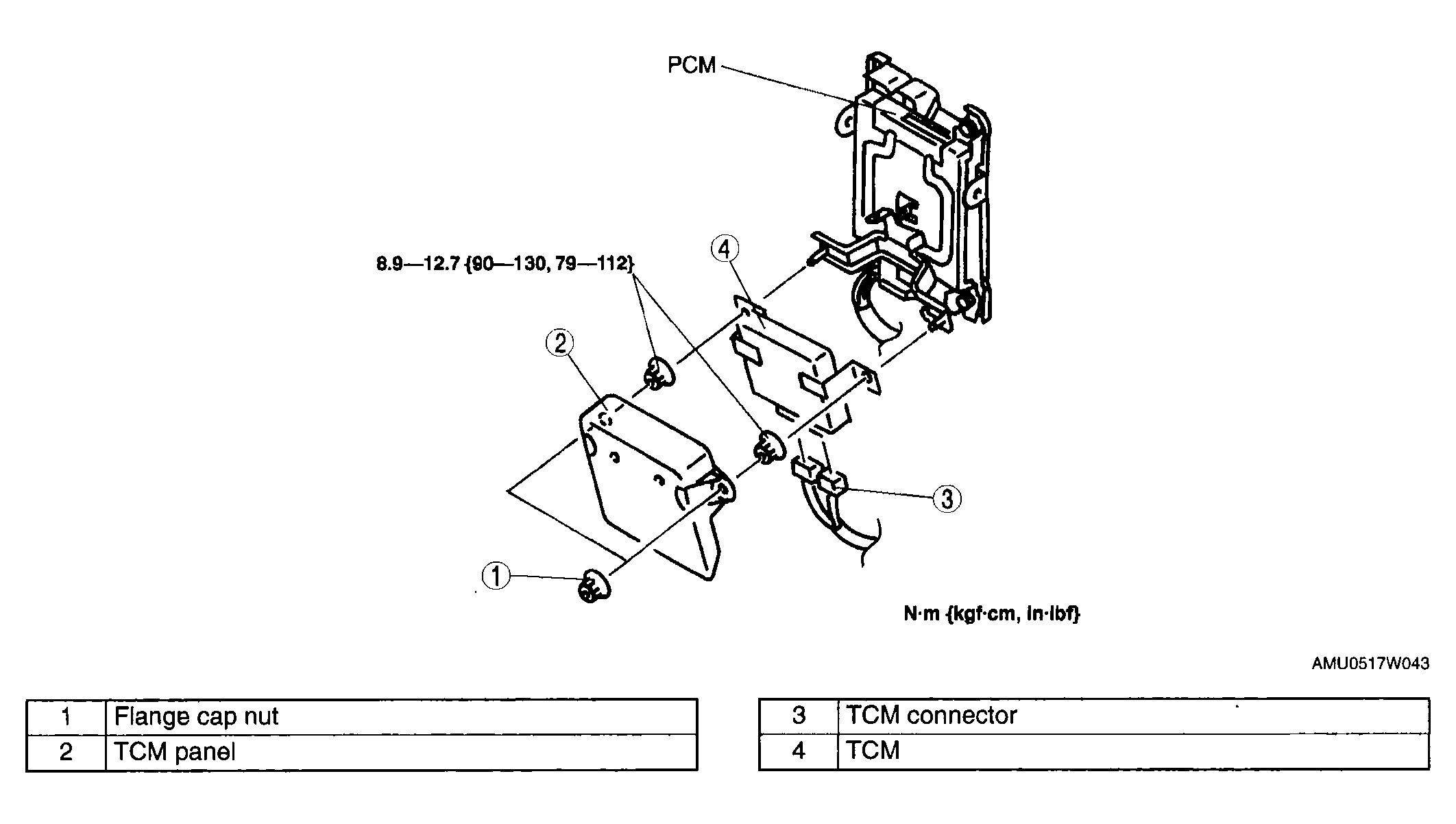

Fig 1: Exploded View Of TCM Components With Torque Specifications
G04328770Courtesy of MAZDA MOTORS CORP.
