Steering Shaft Installation Note

CAUTION:
  • Do not apply a shock in the axial direction of the shaft.
  1. Tighten bolt A.
  2. Tighten bolt B from the left side temporarily.
  3. Tighten bolt C.
  4. Tighten bolt B.
  5. Tighten nut D.

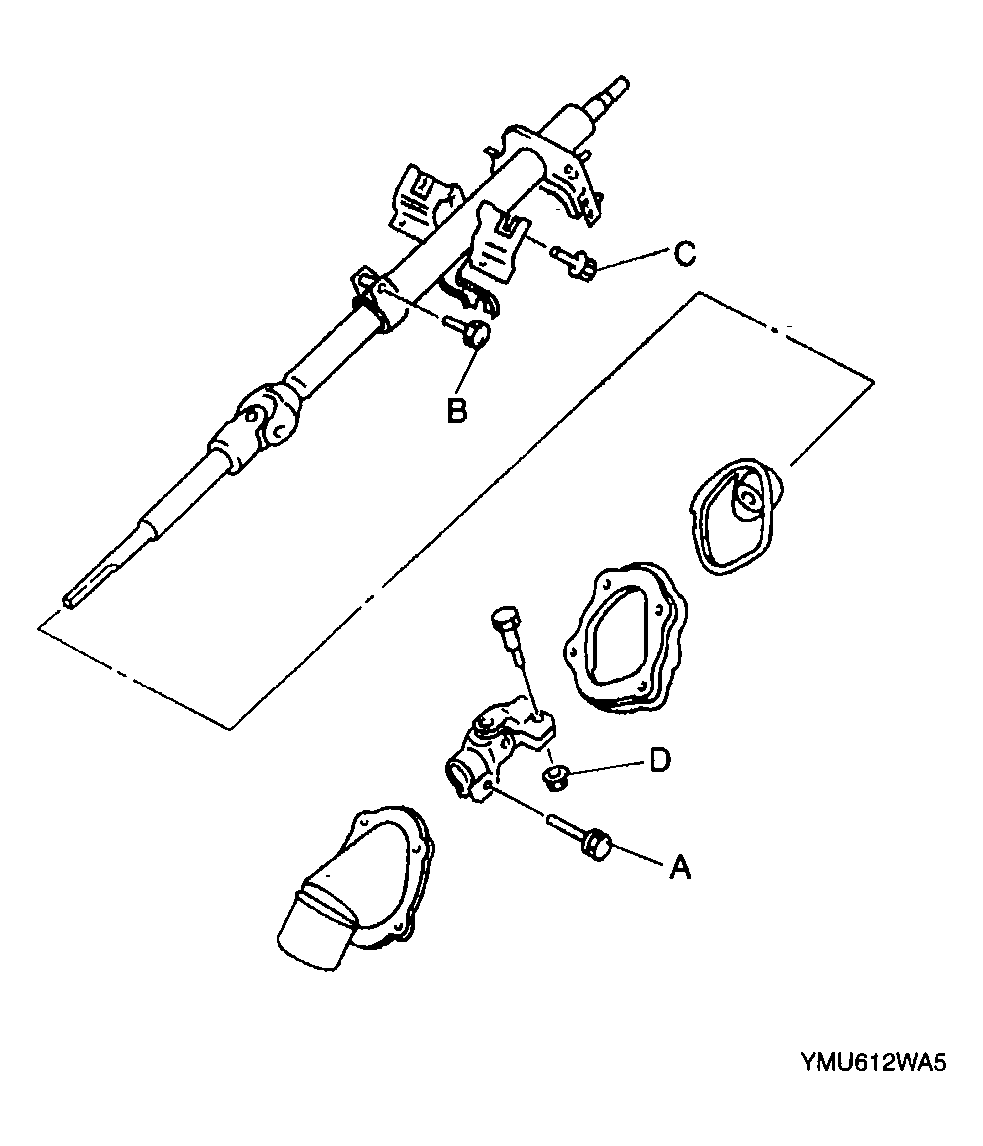

Fig 1: Identifying Steering Shaft Components
G04328846Courtesy of MAZDA MOTORS CORP.
