Steering Gear And Linkage Removal/Installation: Notes

CAUTION:

• Performing the following procedures without first removing the ABS wheel-speed sensor may possibly cause an open circuit in the harness if it is pulled by mistake. Before performing the following procedures, remove the ABS wheel-speed sensor (axle side) and fix it to an appropriate place where the sensor will not be pulled by mistake while servicing the vehicle.

1. Remove in the order indicated in Fig 1.
2. Install in the reverse order of removal.
3. After installation, inspect the toe-in. (See FRONT WHEEL ALIGNMENT .)

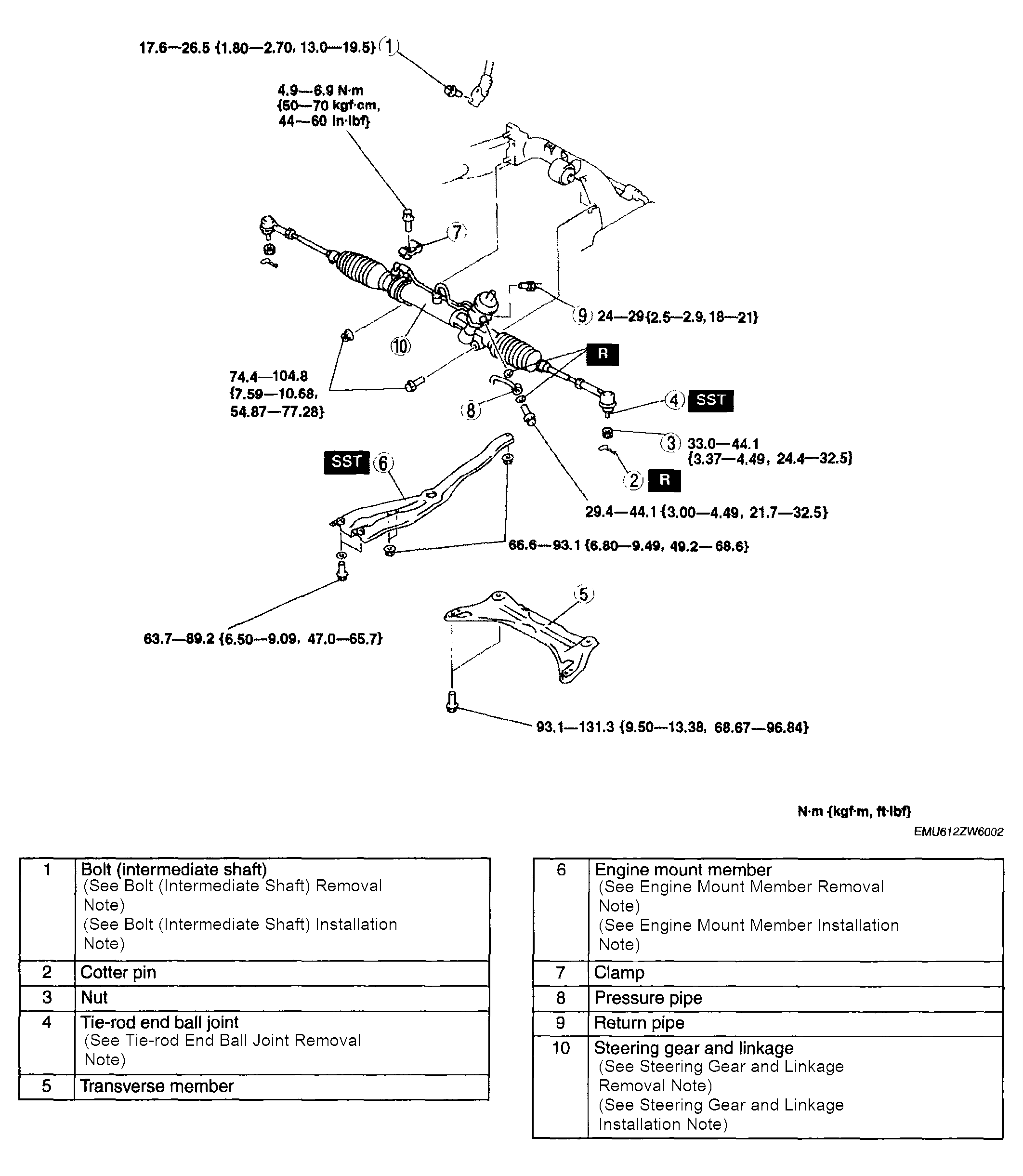

Fig 1: Steering Gear And Linkage Replacement Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.
