Seal Ring Assembly Note

  1. Assemble the seal rings to the pinion shaft component.
  2. Pull the SST  over the pinion shaft component from both directions. This will correctly shape the seal ring.

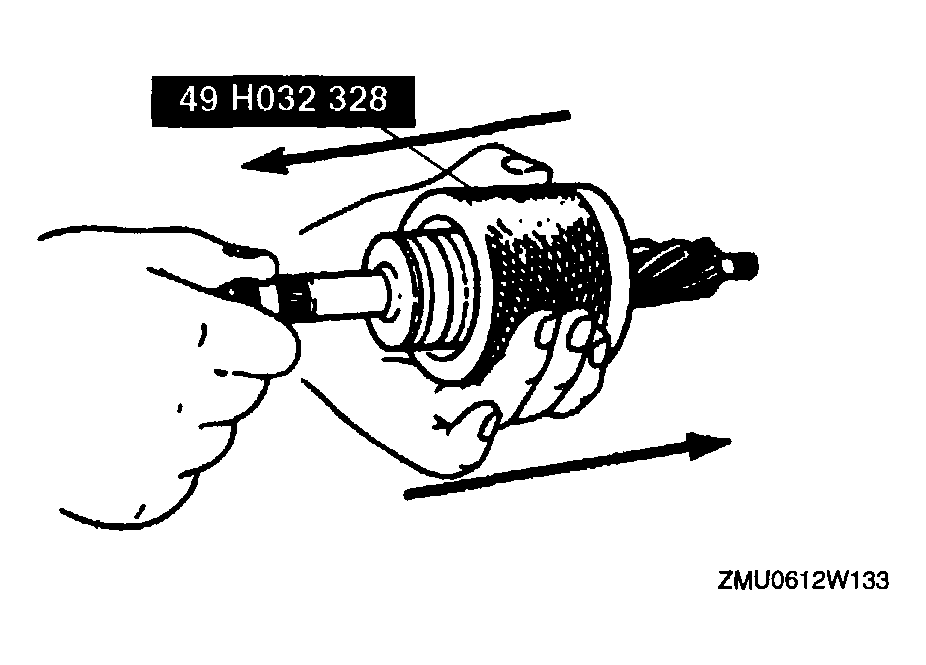

    3. Fig 1: Shaping Seal Ring
    G04328881Courtesy of MAZDA MOTORS CORP.
  3. Install the oil seal from the pinion shaft gear side.
