Locknut (Housing Cover) Assembly Note

  1. Temporarily attach the tie rod to the steering rack.
  2. Tighten the locknut.

    Tightening Torque 20-29 N.m {2.1-2.9 kgf.m, 15-21 ft.lbf}

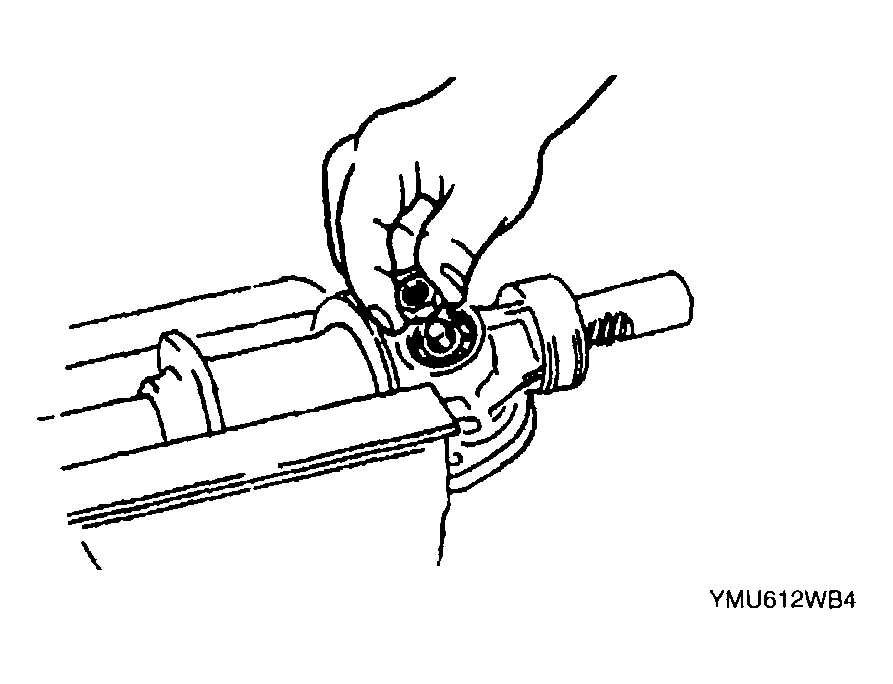

Fig 1: Tightening Housing Cover Locknut
G04328884Courtesy of MAZDA MOTORS CORP.
