Total Toe-in Adjustment
WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Adjust the toe-in before adjusting the camber.
- Loosen the front and/or rear cam nuts.

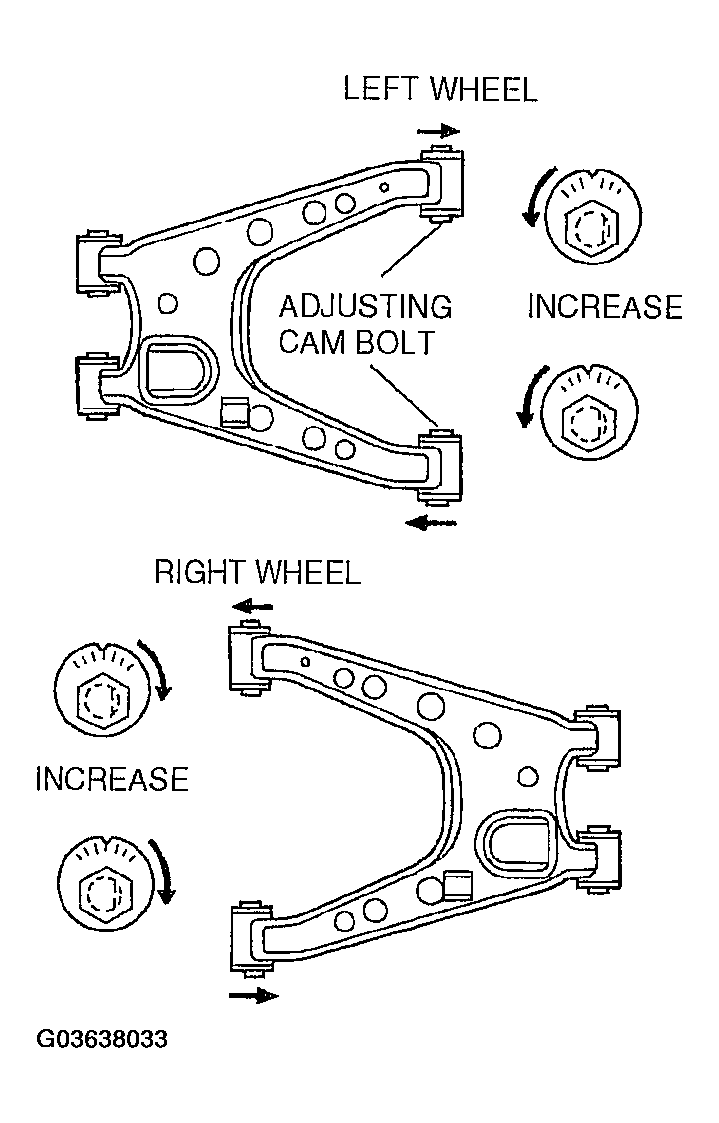

- Turn the front rear adjusting cam bolts equally to provide the correct toe-in.
Courtesy of MAZDA MOTORS CORP.
TOE-IN SPECIFICATIONSToe-in Left wheel Right wheel Front cam Rear cam Front cam Rear cam Increase Counterclockwise Counterclockwise Clockwise Clockwise Decrease Clockwise Clockwise Counterclockwise Counterclockwise NOTE:- Turning the front cam one graduation changes the toe-in about 2.3 mm {0.1 in} and the camber about 13'. Turning the rear cam one graduation changes the toe-in about 2.3 mm {0.1 in} and the camber about 8'.
- Adjust the camber.
