Rear Toe Adjustment

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Jounce the vehicle to make sure that the suspension is in its normal resting position.

Check the toe setting using suitable wheel alignment equipment.

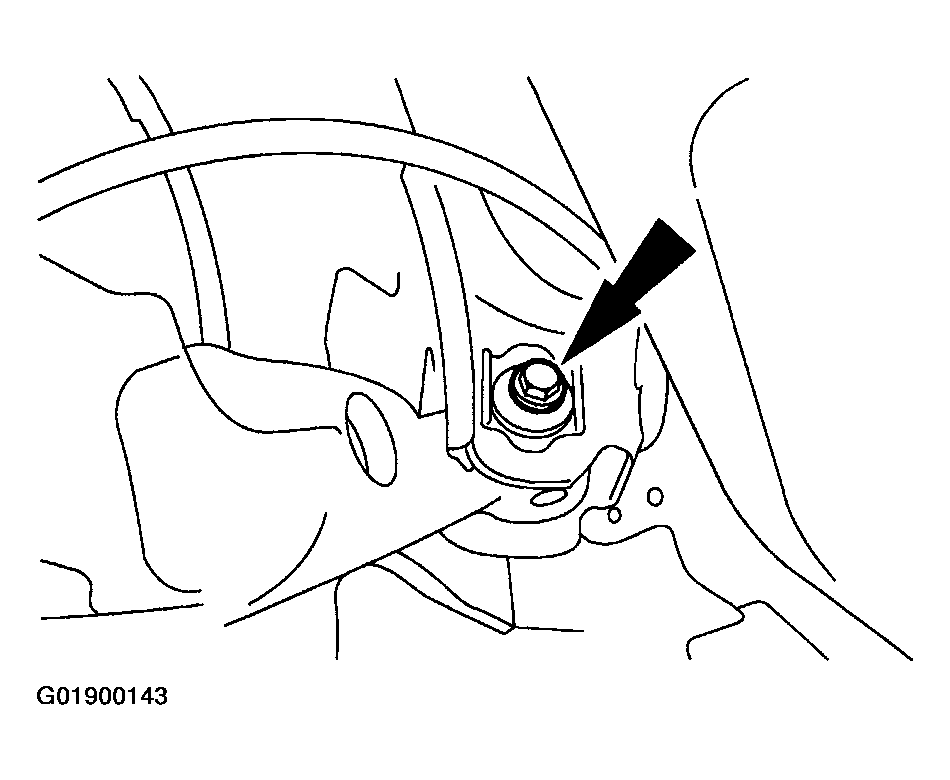

Fig 1: Loosening LH And RH Rear Suspension Trailing Arm And Bushing Bolt
Courtesy of MAZDA MOTORS CORP.
Loosen the LH and RH rear suspension trailing arm and bushing bolt.

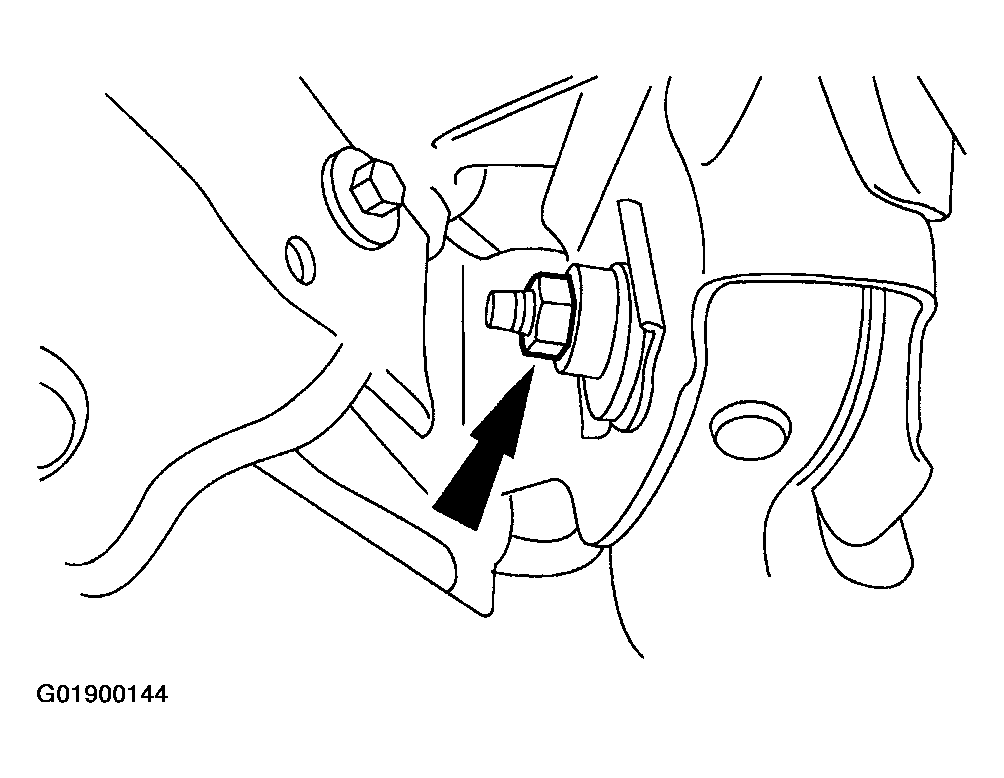

Fig 2: Turning LH And RH Adjusting Cams
Courtesy of MAZDA MOTORS CORP.
Turn the LH and RH adjusting cams simultaneously until the toe is within specification.

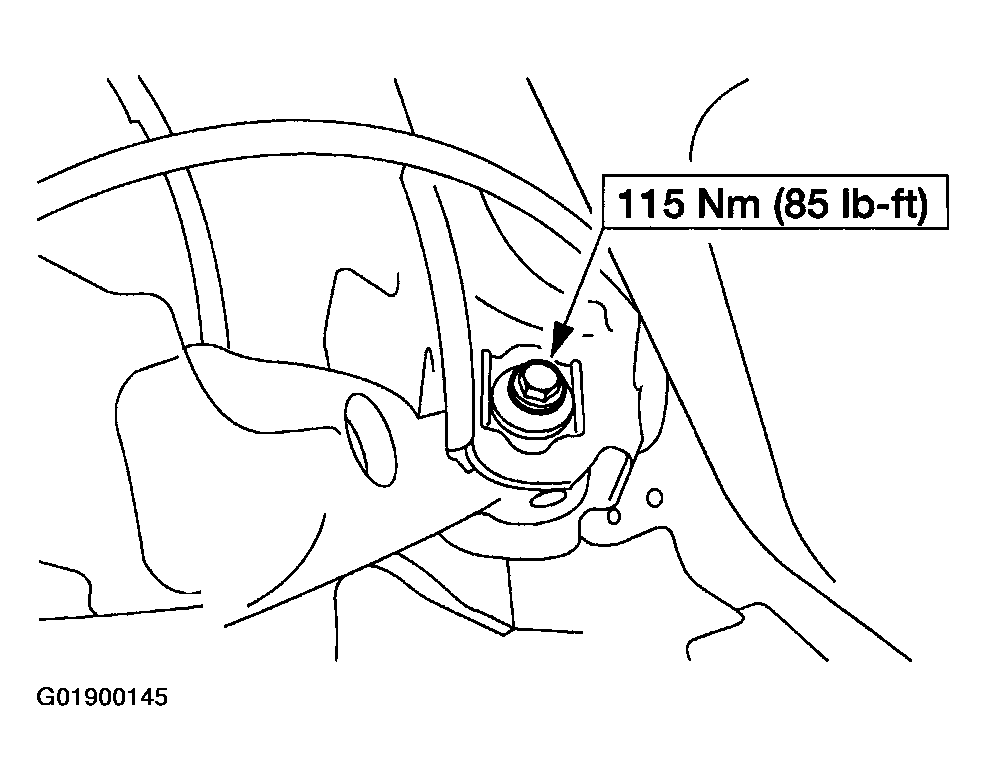

Fig 3: Tightening LH And RH Rear Suspension Trailing Arm And Bushing Bolts
Courtesy of MAZDA MOTORS CORP.
Tighten the LH and RH rear suspension trailing arm and bushing bolts.
