Wheel Hub Bolt Replacement

  1. Remove the hub bolt using the SSTs.
    NOTE:
    • If the dust cover interferes with the wheel hub bolt and the wheel hub bolt cannot be removed, tap the part shown in the figure with a chisel lightly and bend the processing point back to the steering knuckle side.
  2. Install the hub bolt into the wheel hub and install a washer and hub nut on the hub bolt.
  3. Tighten the hub nut while holding the wheel hub using a brass bar.

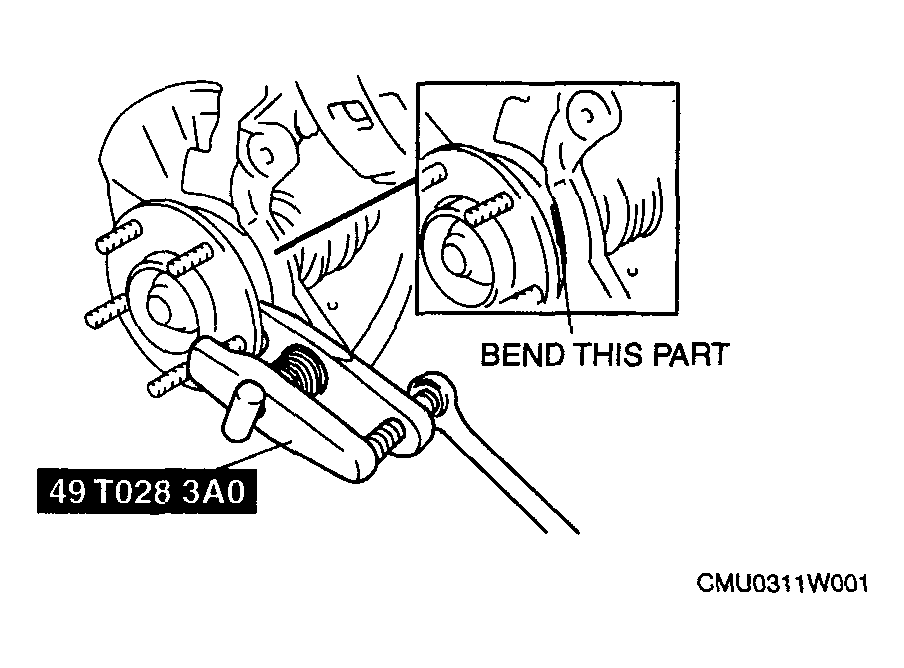

Fig 1: Removing Hub Bolt Using SST
G04328447Courtesy of MAZDA MOTORS CORP.
Fig 2: Holding Wheel Hub Using Brass Bar Tightening Hub Nut
G04328448Courtesy of MAZDA MOTORS CORP.
