Third-Row Seat Removal/Installation: Seat

  1. Remove the headrests.
  2. Remove the bolt. (LH)
    Fig 1: Removing Bolt (LH) With Torque Specifications
    G04329498Courtesy of MAZDA MOTORS CORP.
  3. Stow the third-row seat.
  4. Open the cover (LH)
  5. Remove the bolts and then remove the third-row seat.
  6. Install in the reverse order of removal.

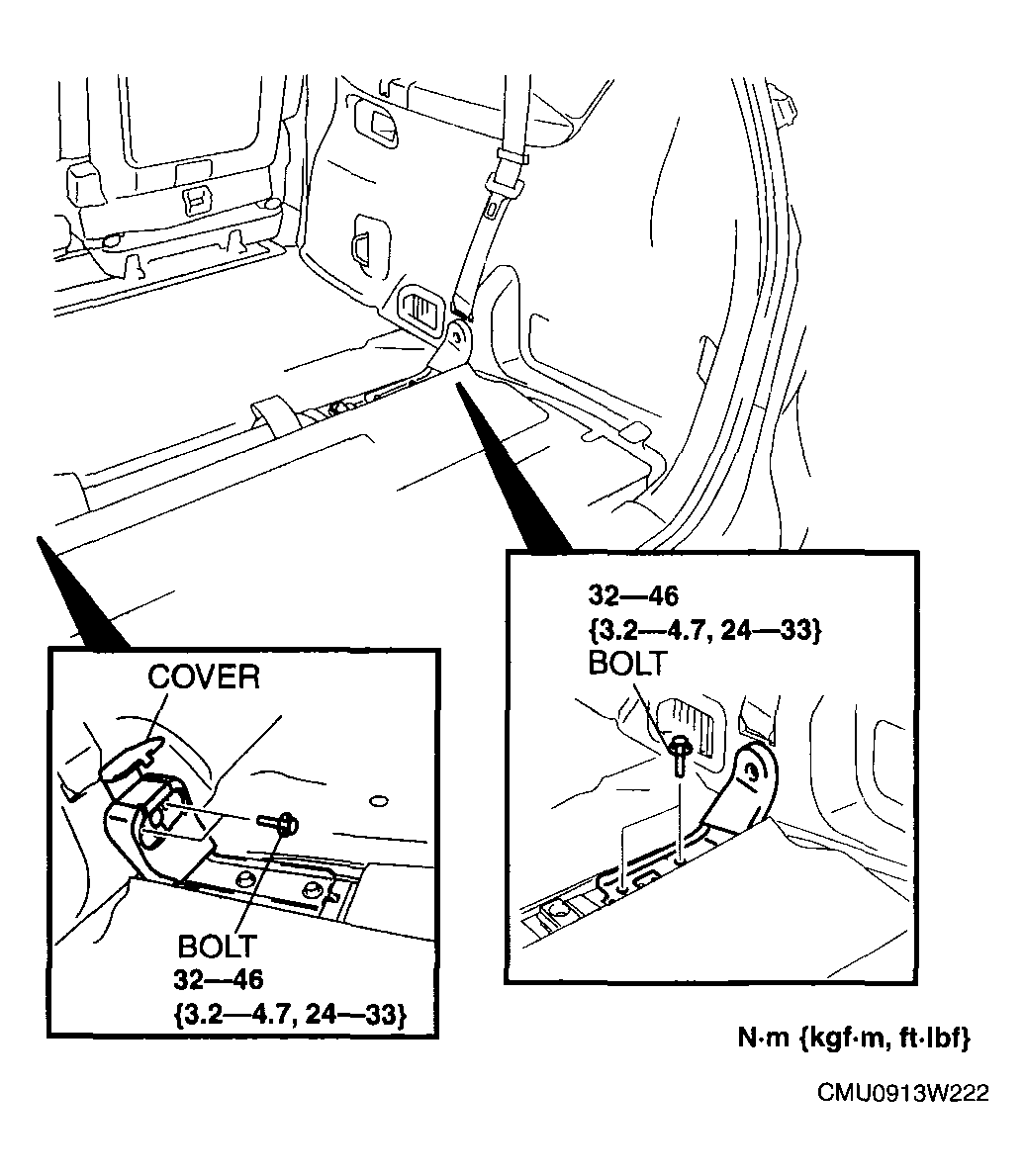

    Fig 2: Removing Third-Row Seat With Torque Specifications
    G04329499Courtesy of MAZDA MOTORS CORP.
