Rear Tilt Motor Inspection

  1. Disconnect the rear tilt motor connector.
  2. Inspect the rear tilt motor operation when B+ is applied to the terminals as shown.
    • If not as specified, replace the rear tilt motor.
    REAR TILT MOTOR REFERENCE CHART

    Motor operation Connection
    B+ GND
    Up A B
    Down B A

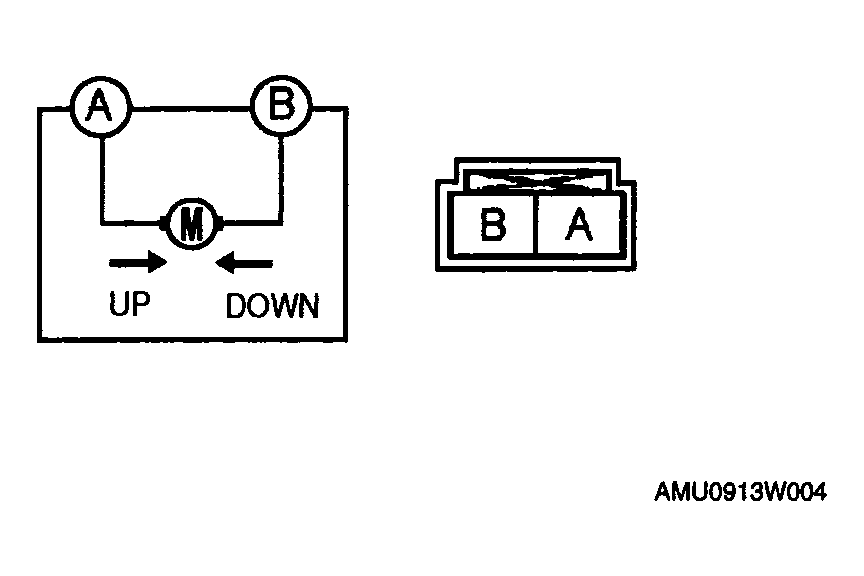

    Fig 1: Rear Tilt Motor Connector Terminals
    G04329488Courtesy of MAZDA MOTORS CORP.
