Door Locks
>>
Security System And Locks System
>>
Keyless Entry System Wiring Diagram
Keyless Entry System Wiring Diagram

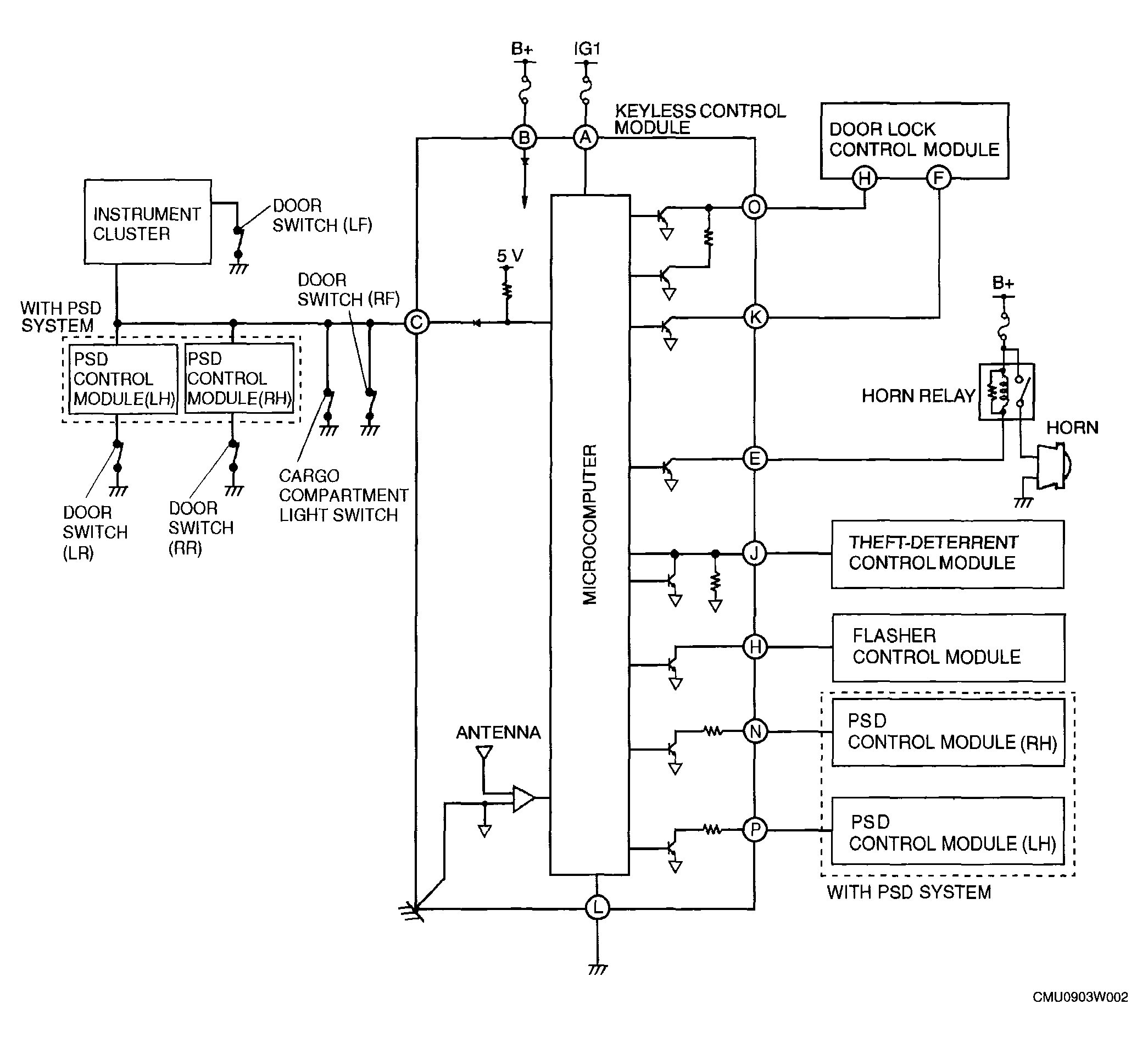

Fig 1: Keyless Entry System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
