Front Door Lock-Link Switch Inspection

NOTE:

• The front door lock-link switch is together with the front door lock actuator.

1. Disconnect the front door lock actuator connector.
2. Inspect for continuity between the front door lock-link switch terminals using an ohmmeter.

• If not as specified, replace the front door lock actuator.

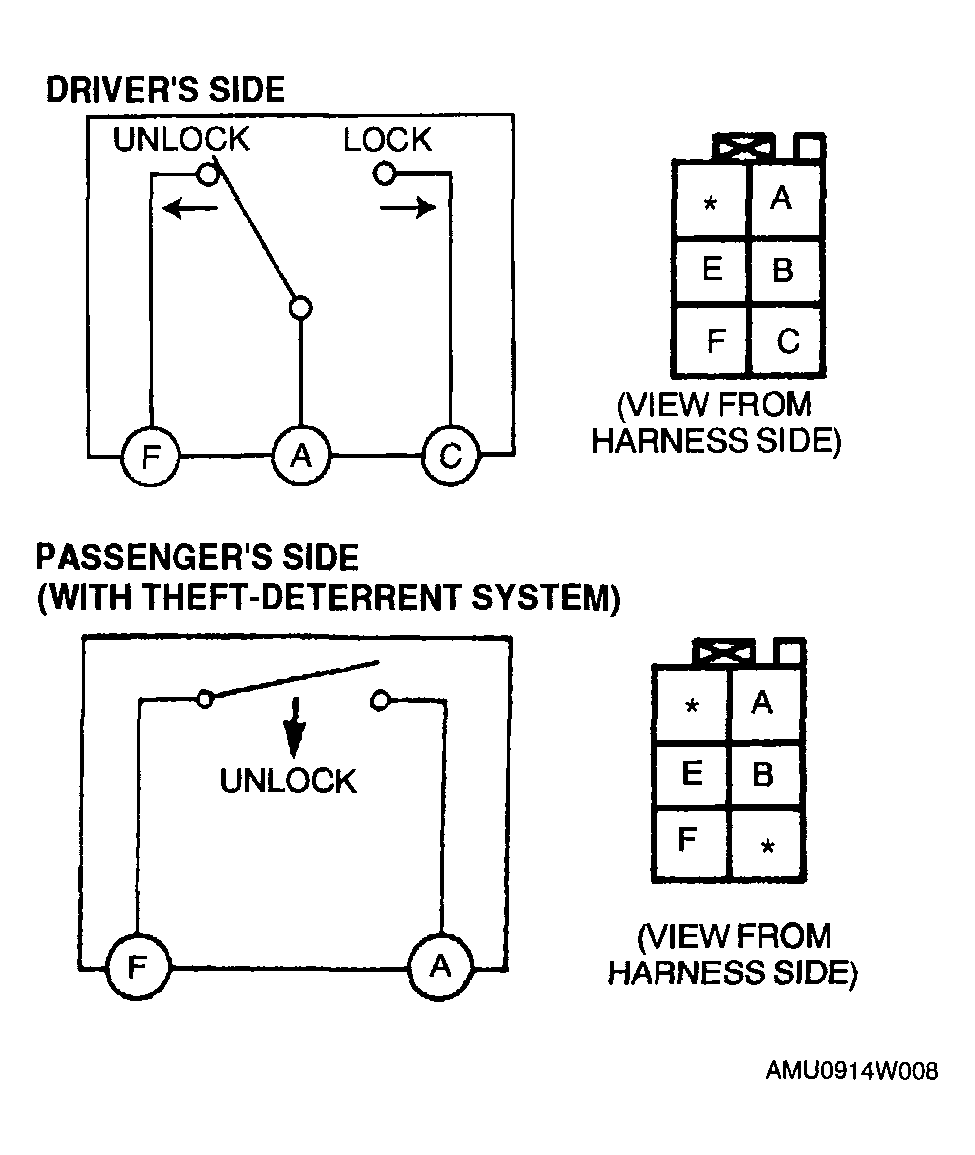

Fig 1: Drivers & Passengers Door Lock Link Switch Connector Terminals

Courtesy of MAZDA MOTORS CORP.

Fig 2: Drivers Door Lock Link Switch Continuity Chart

Courtesy of MAZDA MOTORS CORP.

Fig 3: Passenger's Side (With Theft-Deterrent System) Door Lock Link Switch Continuity Chart

Courtesy of MAZDA MOTORS CORP.
