Without Sliding Sunroof: Notes

  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in Fig 1.

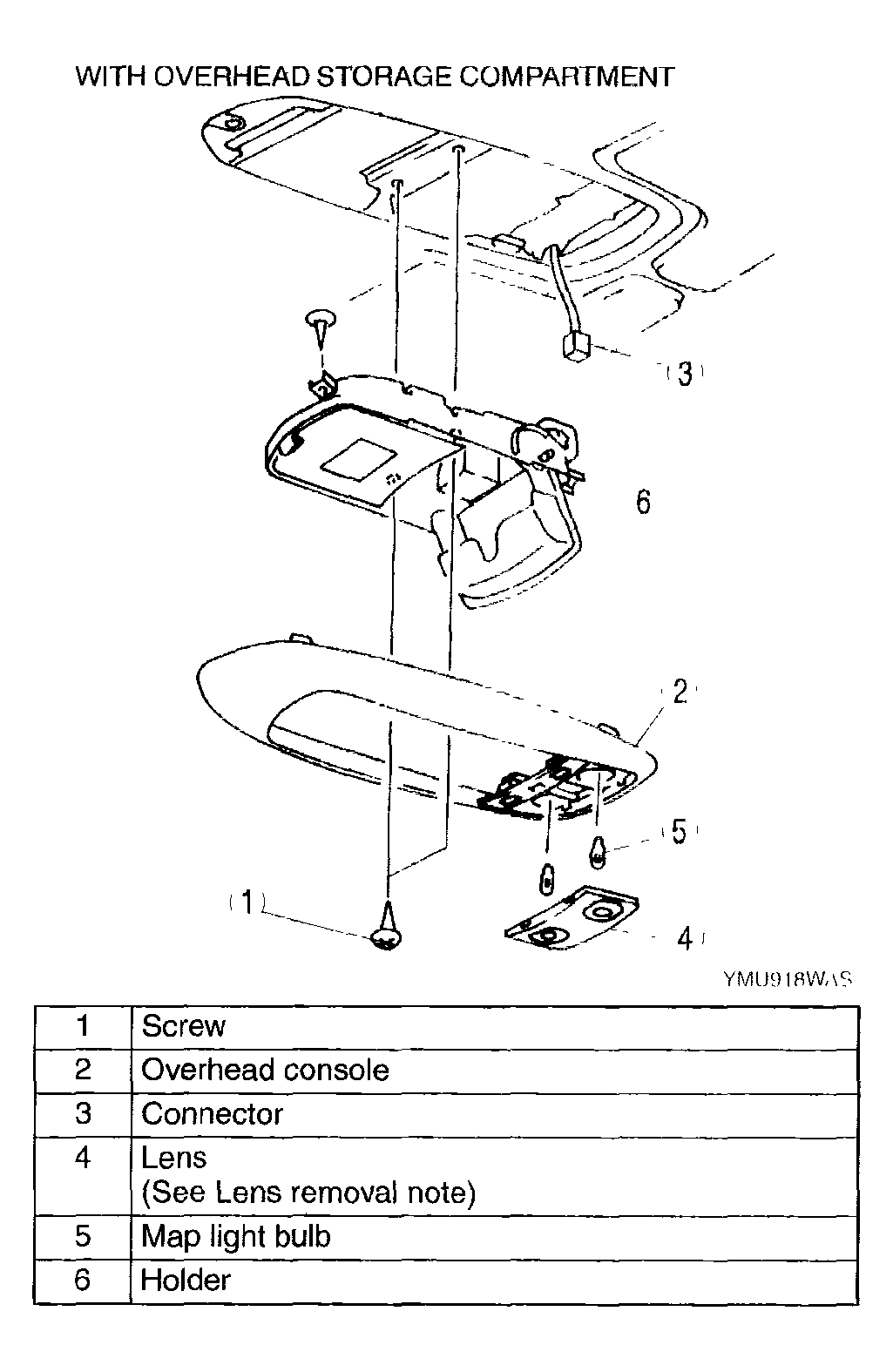

    Fig 1: Removing/Installing MAP Light - With Overhead Storage Compartment (Without Sliding Sunroof)
    G04329707Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.

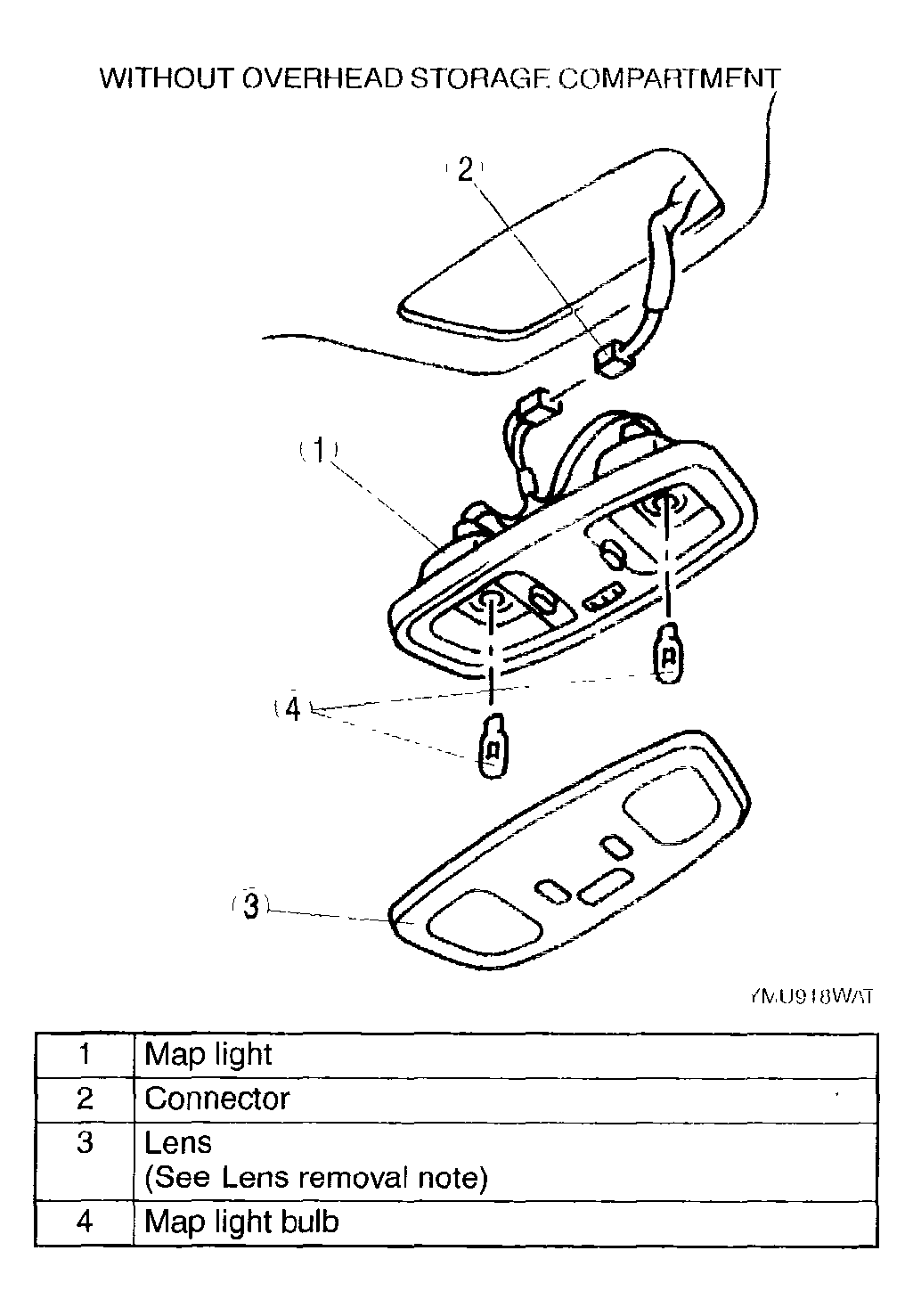

Fig 2: Removing/Installing MAP Light - Without Overhead Storage Compartment (Without Sliding Sunroof)
G04329708Courtesy of MAZDA MOTORS CORP.
