Home >> Mazda >> 2006 >> MPV ES >> Repair and Diagnosis >> Accessories & Equipment >> Headlights >> Lighting System >> Map Light Removal/Installation >> With Sliding Sunroof >> Notes

With Sliding Sunroof: Notes

  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in Fig 1.
  3. Install in the reverse order of removal.

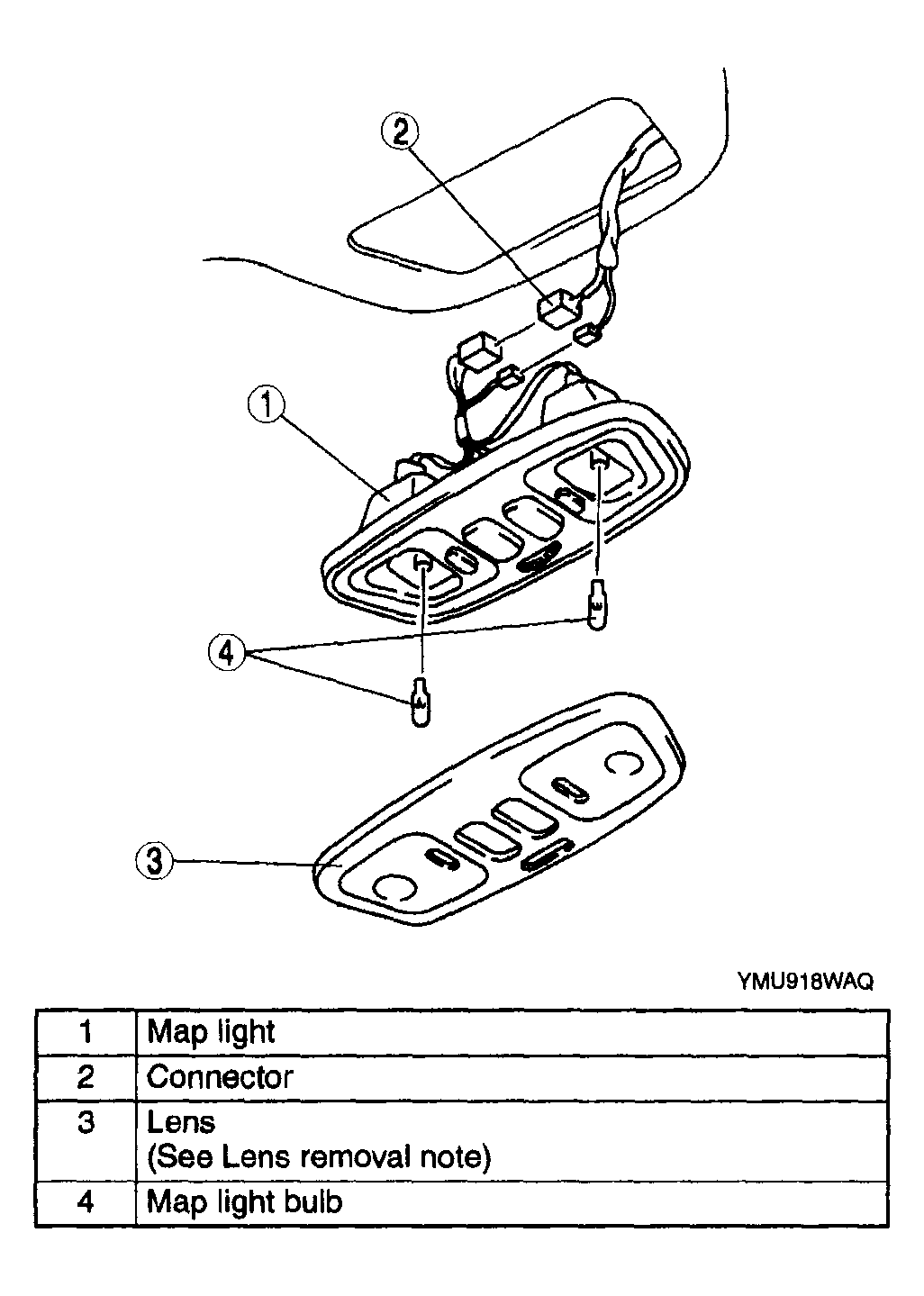

Fig 1: Removing/Installing MAP Light (With Sliding Sunroof)
G04329705Courtesy of MAZDA MOTORS CORP.
