Light Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in Fig 1.
  4. Install in the reverse order of removal.

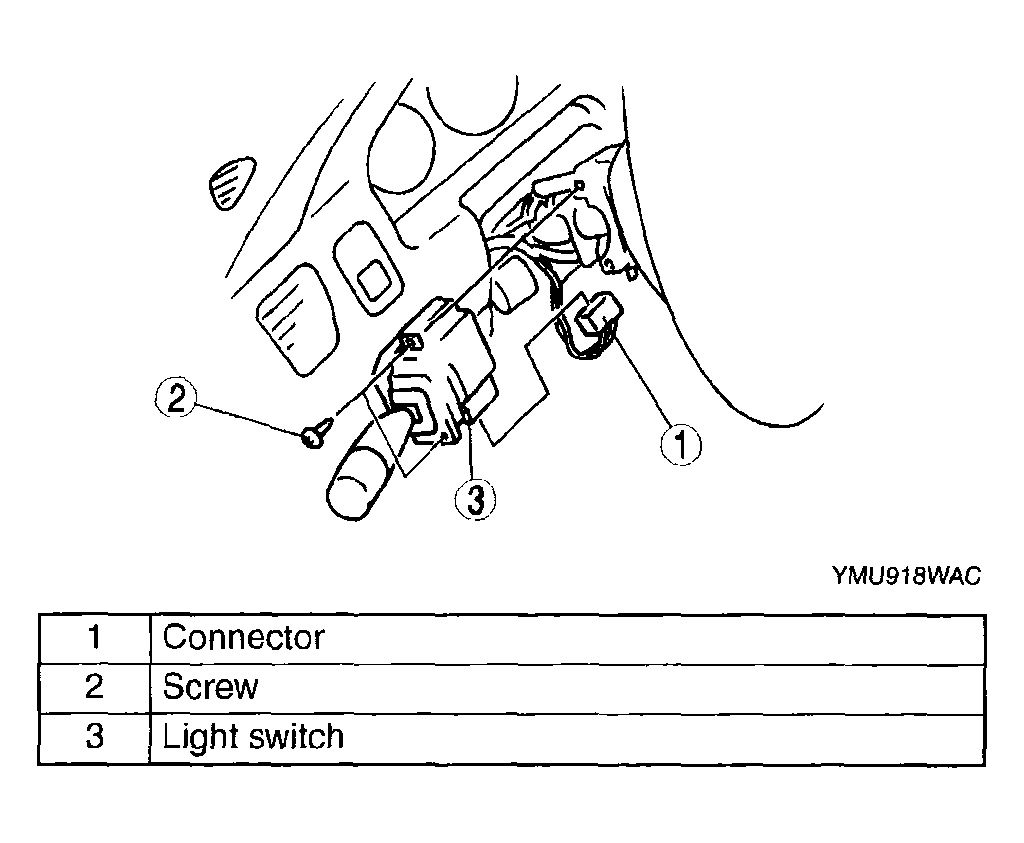

    Fig 1: Removing/Installing Light Switch
    G04329690Courtesy of MAZDA MOTORS CORP.
