License Plate Light Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in Fig 1.
  3. Install in the reverse order of removal.

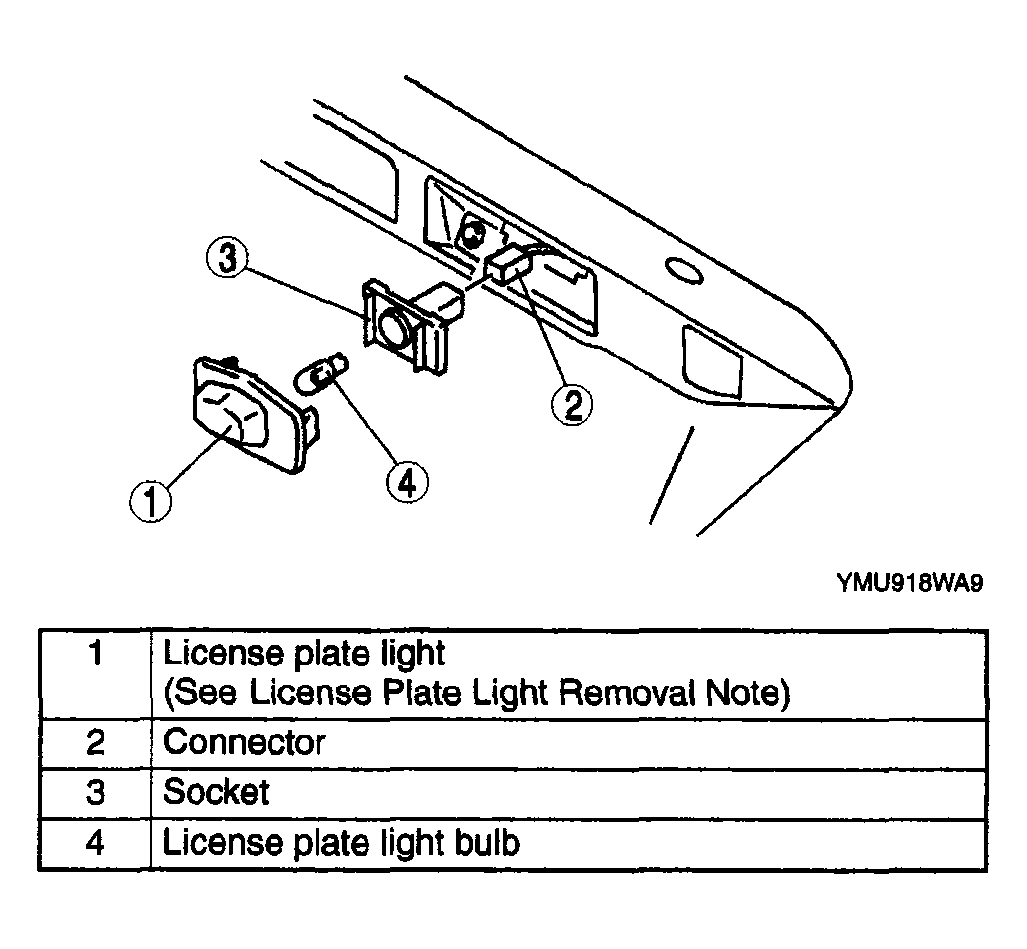

    Fig 1: Removing/Installing License Plate Light
    G04329686Courtesy of MAZDA MOTORS CORP.
