Hazard Warning Switch Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the meter hood. (See METER HOOD REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in Fig 1.
  4. Install in the reverse order of removal.

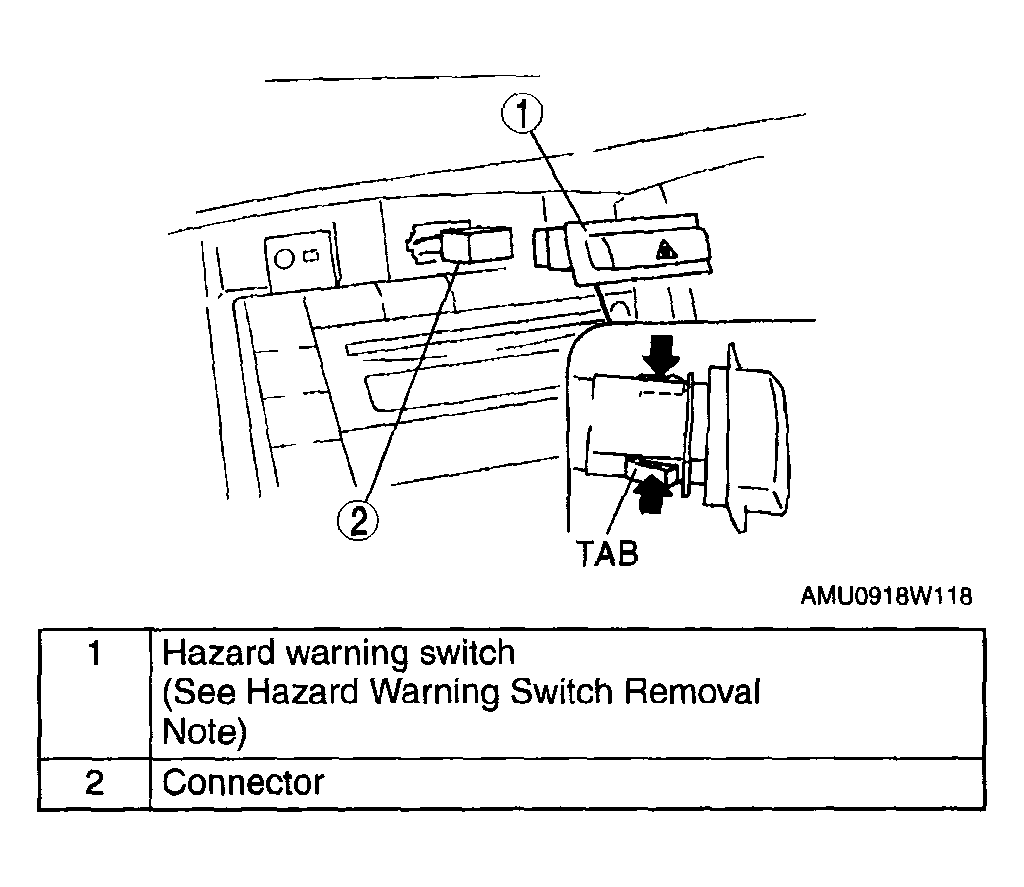

    Fig 1: Removing/Installing Hazard Warning Switch
    G04329697Courtesy of MAZDA MOTORS CORP.
