Woofer Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the driver-side rear side trim. (See REAR SIDE TRIM REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in Fig 1.
  4. Install in the reverse order of removal.

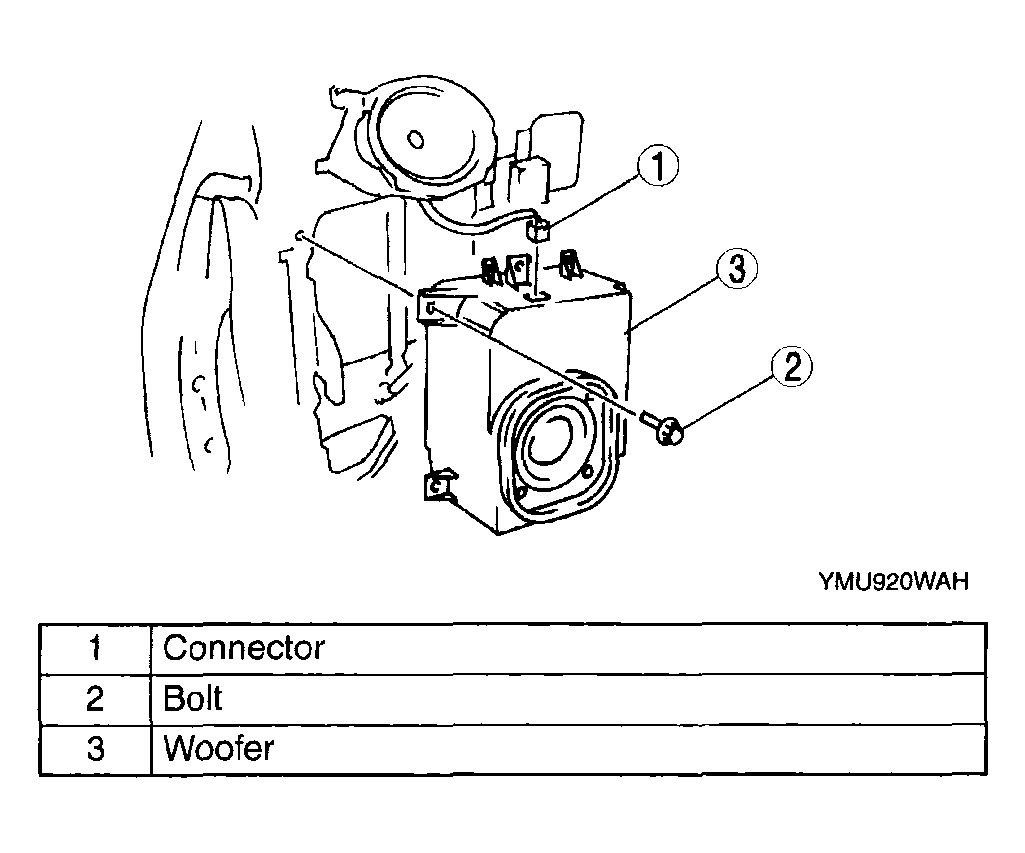

Fig 1: Identifying Woofer
G04329800Courtesy of MAZDA MOTORS CORP.
