Audio Unit Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the meter hood. (See METER HOOD REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in Fig 1.
    CAUTION:
    • Make certain that the wiring harness and antenna feeder are not caught between the unit and dashboard. If the harness or the antenna feeder is caught between the unit and dashboard, it may cause trouble or malfunctions.

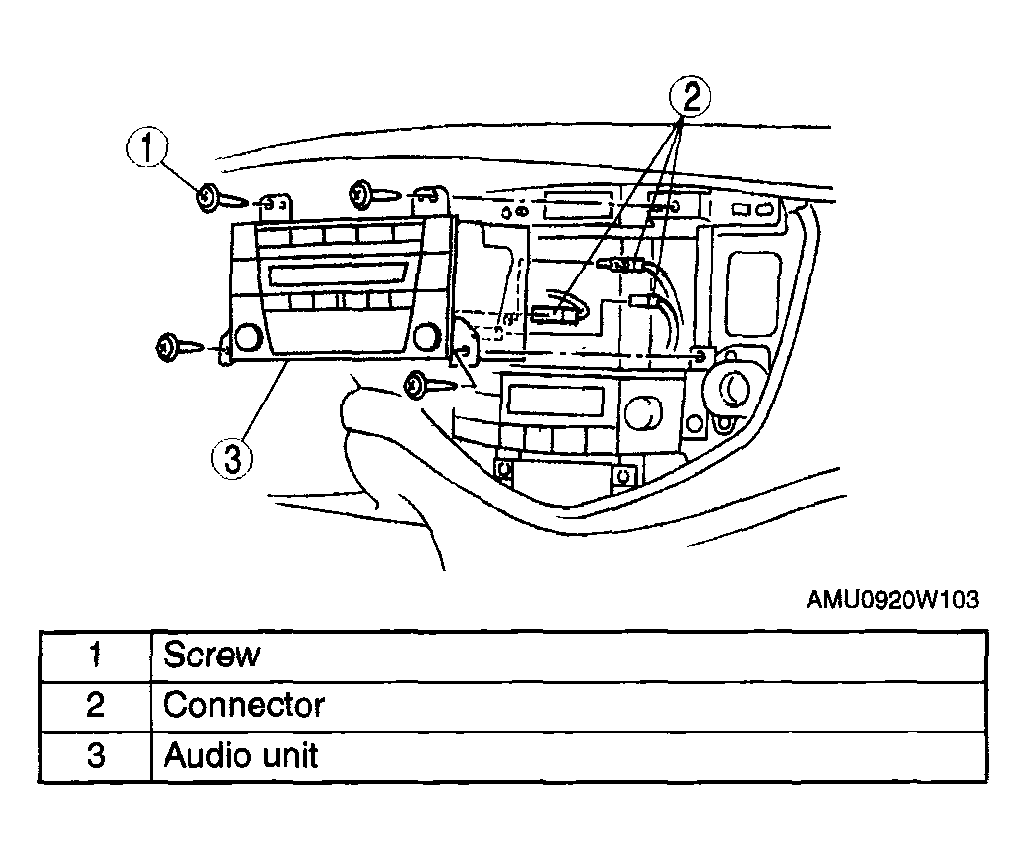

    Fig 1: Audio Unit
    G04329806Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
