DTC Table [Two-Step Deployment Control System]

DTCs are common for present and past malfunction diagnosis.

NOTE:

When DTCs not shown in the DTC table are displayed, replace the SAS control module.
If the air bag system warning light does not illuminate or remains illuminated when the ignition switch is turned to the ON position, inspect and repair the air bag system warning light circuit, and then confirm that the air bag system warning light is operational.
The air bag system warning light flashes the DTC pattern for five cycles, and then remains illuminated until the ignition switch is turned to the LOCK position.
If the SAS control module configuration is performed while the SRS air bag system circuit has a malfunction, the air bag system warning light flashes. Verify that the warning light goes out approx. 15 s after the system circuit malfunction is solved.

DTC & SYSTEM MALFUNCTION DESCRIPTION

DTC				System malfunction location
WDS display	Air bag system warning light

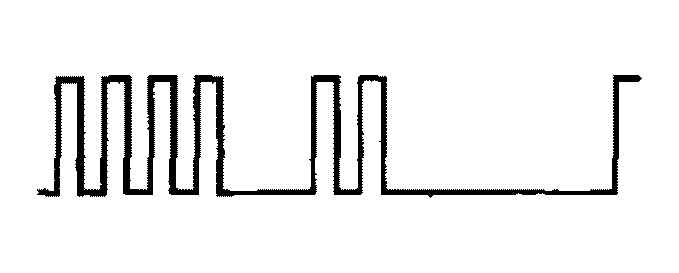

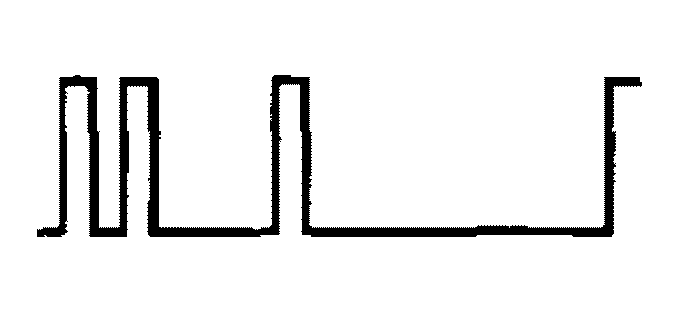

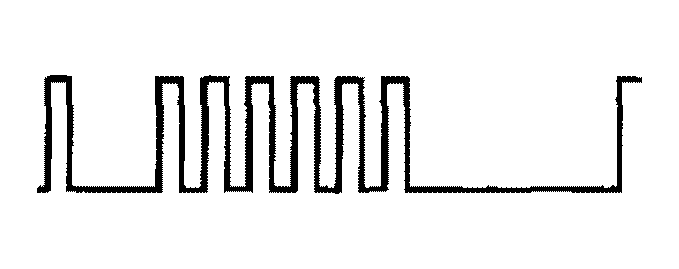

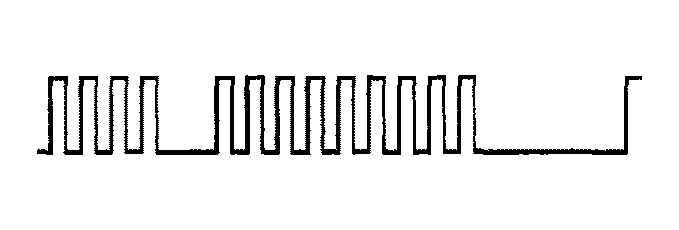

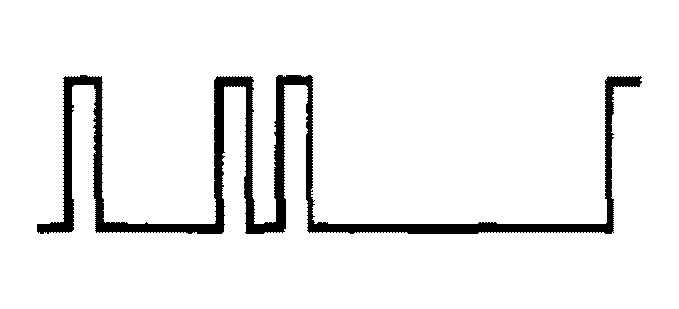

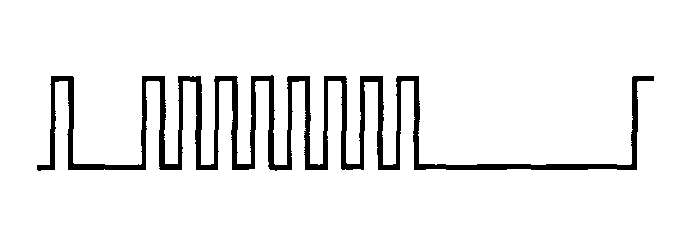

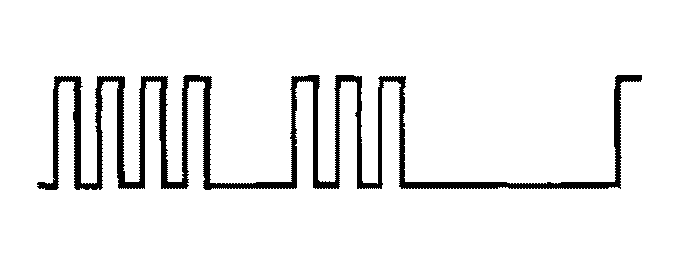

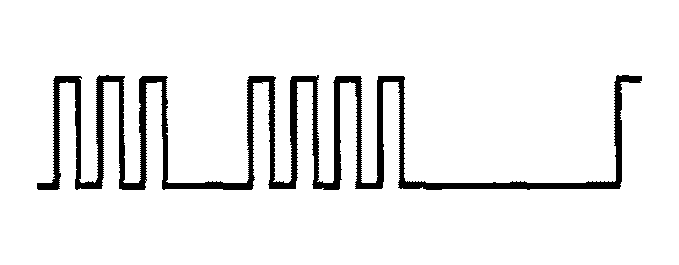

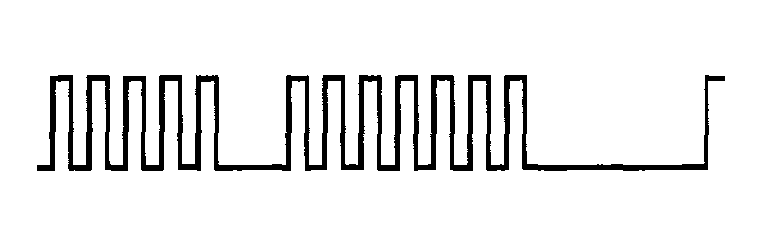

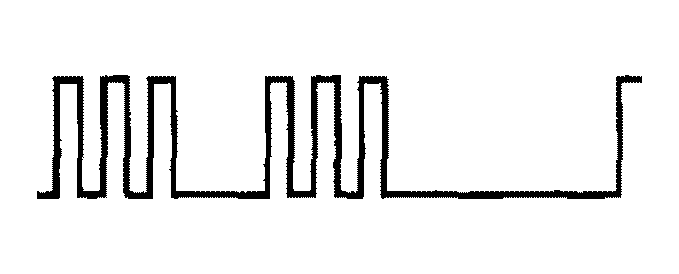

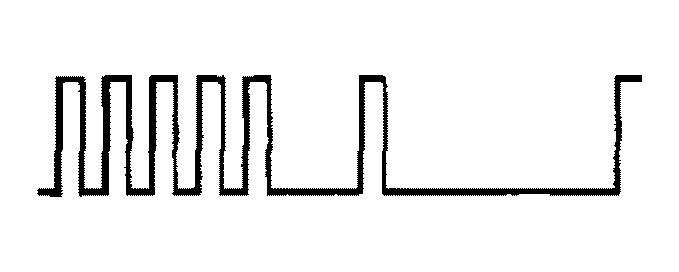

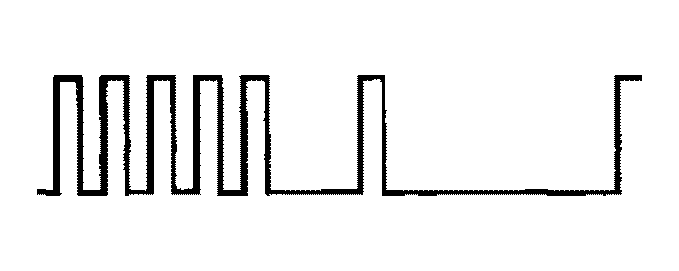

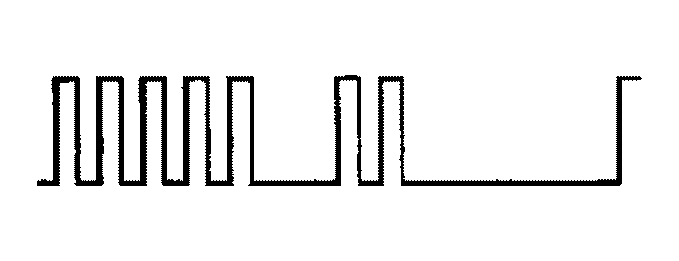

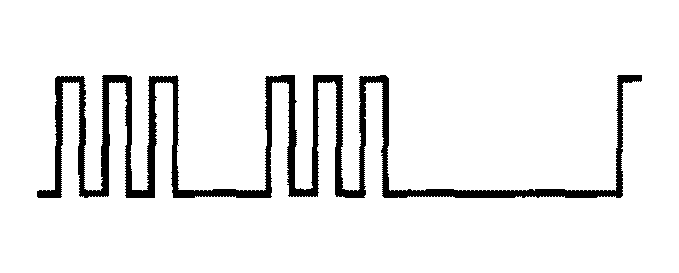

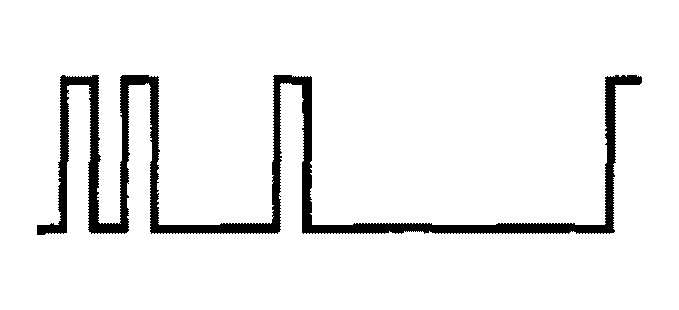

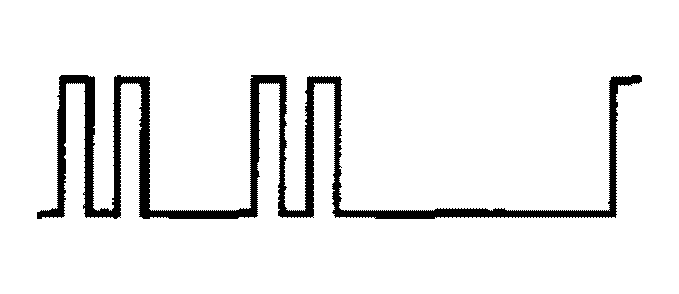

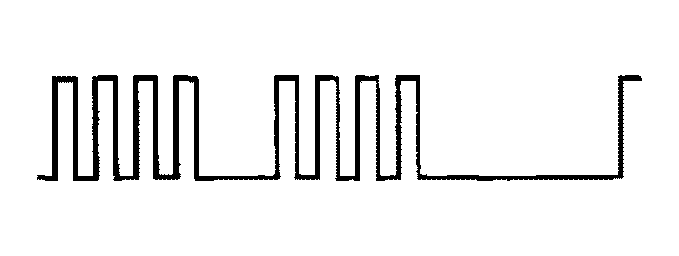

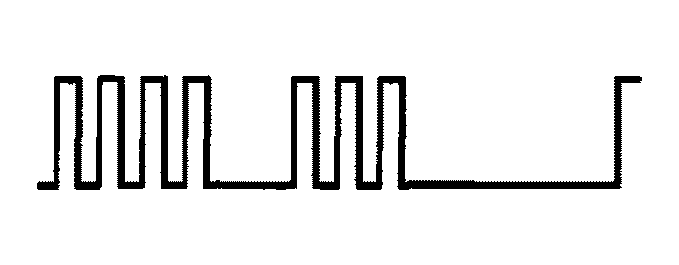

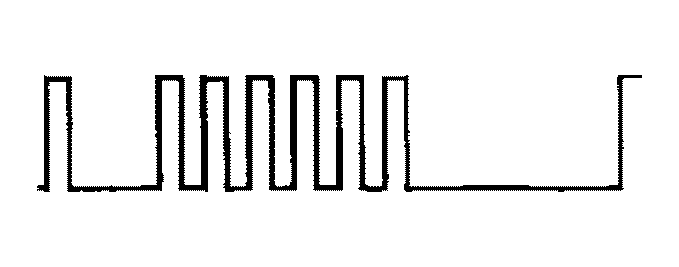

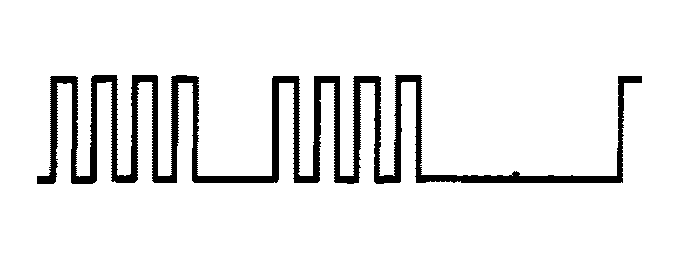

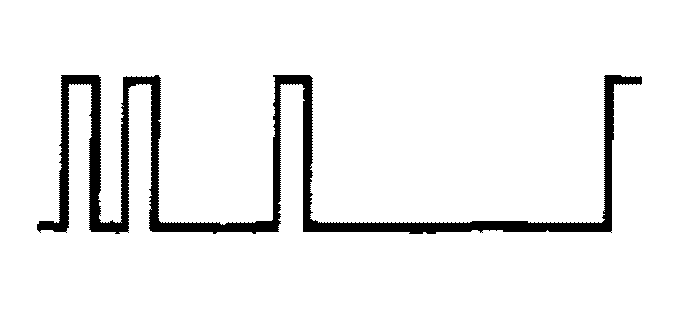

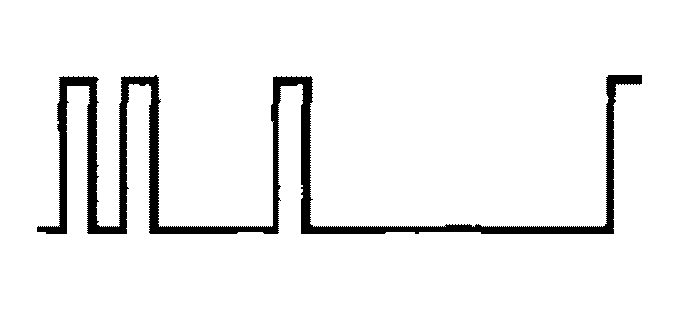

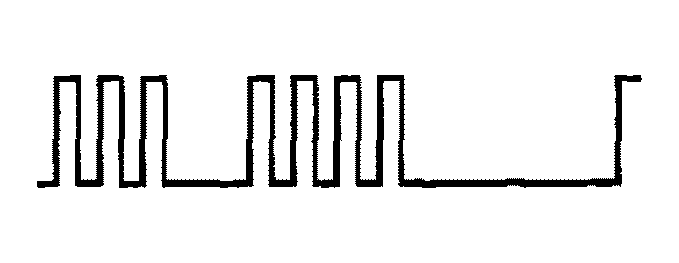

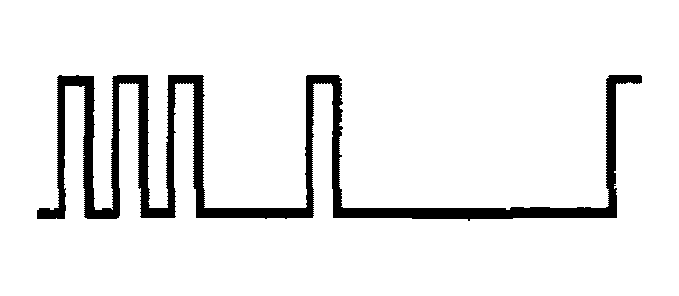

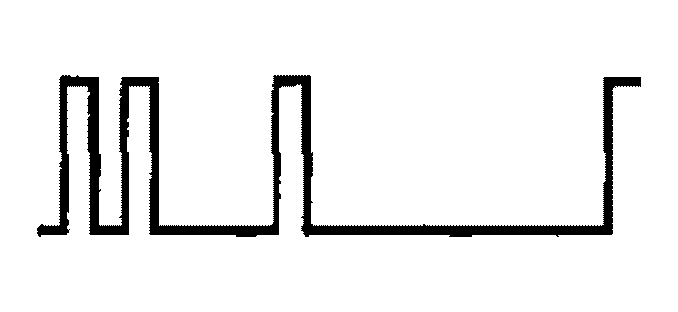

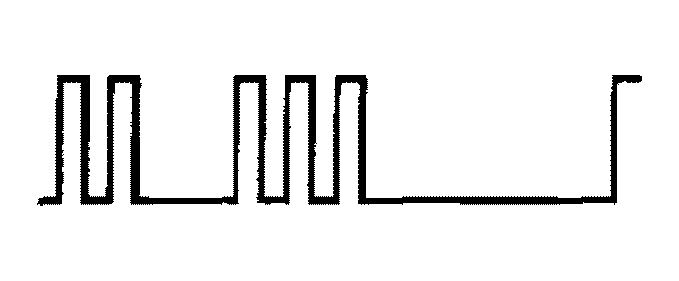

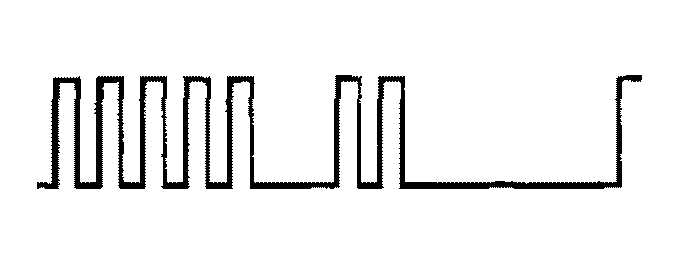

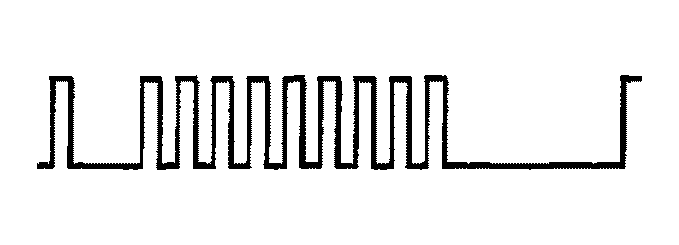

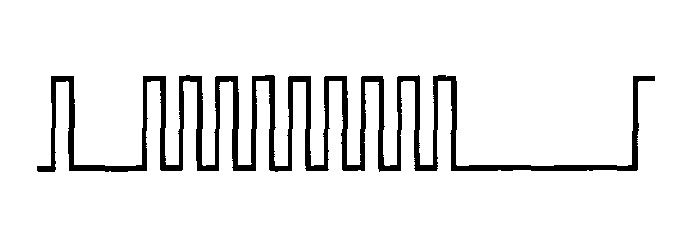

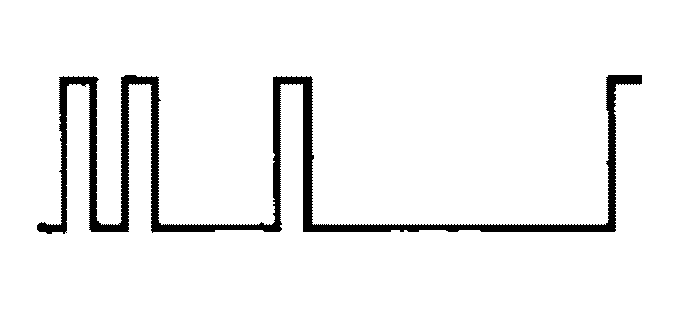

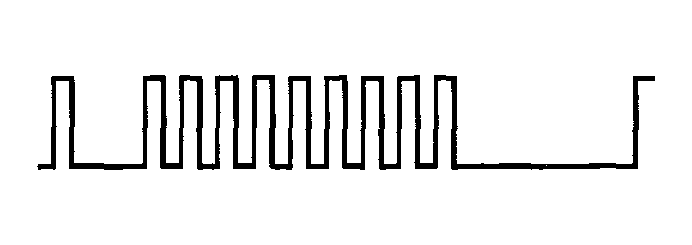

WDS display	Flashing pattern		Priority ranking
DTC B1013	16		19	Seat weight sensor calibration error
DTC B1231	13		3	SAS control module activation (deployment) control freeze
DTC B1342	12		2	SAS control module (internal circuit abnormal)
	-	Continuously illuminated	1	SAS control module (DTC 12 detection circuit malfunction)
	14		4	Deployment prohibited because configuration is not set
DTC B1426	57		21	Seat belt warning light circuit short to power supply
DTC B1427	57		21	Seat belt warning light circuit open
DTC B1869	-	Continuously illuminated	1	Air bag system warning light circuit open
DTC B1869	-	Does not illuminate	-	Air bag system warning light circuit short to body ground
DTC B1870	-	Continuously illuminated	1	Air bag system warning light circuit short to power supply
DTC B1877	33		13	Driver-side pre-tensioner seat belt circuit resistance high
DTC B1878				Driver-side pre-tensioner seat belt circuit short to power supply
DTC B1879				Driver-side pre-tensioner seat belt circuit short to body ground
DTC B1881	34		12	Passenger-side pre-tensioner seat belt circuit resistance high
DTC B1882				Passenger-side pre-tensioner seat belt circuit short to power supply
DTC B1883				Passenger-side pre-tensioner seat belt circuit short to body ground
DTC B1884	18		20	Passenger air bag deactivation (PAD) indicator circuit open or short to body ground
DTC B1885	33		13	Driver-side pre-tensioner seat belt circuit resistance low
DTC B1886	34		12	Passenger-side pre-tensioner seat belt circuit resistance low
DTC B1890	18		20	Passenger air bag deactivation (PAD) indicator circuit short to power supply
DTC B1913	19		11	Driver-side air bag module (inflator No.1) circuit short to body ground
DTC B1913	21		10	Passenger-side air bag module (inflator No. 1) circuit short to body ground
DTC B1916	19		11	Driver-side air bag module (inflator No.1) circuit short to power supply
DTC B1925	21		10	Passenger-side air bag module (inflator No.1) circuit short to power supply
DTC B1932	19		11	Driver-side air bag module (inflator No. 1) circuit resistance high
DTC B1933	21		10	Passenger-side air bag module (inflator No.1) circuit resistance high
DTC B1934	19		11	Driver-side air bag module (inflator No.1) circuit resistance low
DTC B1935	21		10	Passenger-side air bag module (inflator No.1) circuit resistance low
DTC B1992	22		15	Driver-side side air bag module circuit short to power supply
DTC B1993				Driver-side side air bag module circuit short to body ground
DTC B1994				Driver-side side air bag module circuit resistance high
DTC B1995				Driver-side side air bag module circuit resistance low
DTC B1996	23		14	Passenger-side side air bag module circuit short to power supply
DTC B1997				Passenger-side side air bag module circuit short to body ground
DTC B1998				Passenger-side side air bag module circuit resistance high
DTC B1999				Passenger-side side air bag module circuit resistance low
DTC B2228	19		11	Driver-side air bag module (inflator No.2) circuit short to body ground
DTC B2229	21		10	Passenger-side air bag module (inflator No.2) circuit short to body ground
DTC B2230	19		11	Driver-side air bag module (inflator No.2) circuit short to power supply
DTC B2231	21		10	Passenger-side air bag module (inflator No.2) circuit short to power supply
DTC B2232	19		11	Driver-side air bag module (inflator No.2) circuit resistance high
DTC B2233	21		10	Passenger-side air bag module (inflator No.2) circuit resistance high
DTC B2234	19		11	Driver-side air bag module (inflator No.2) circuit resistance low
DTC B2235	21		10	Passenger-side air bag module (inflator No.2) circuit resistance low
DTC B2290	16		19	Seat weight sensor signal malfunction
DTC B2296	42		9	Crash zone sensor (communication error, internal circuit abnormal)
DTC B2434	51		18	Driver-side front buckle switch circuit short to ground
DTC B2435	51		18	Driver-side front buckle switch circuit resistance not within specification
DTC B2438	52		19	Passenger-side front buckle switch circuit short to ground
DTC B2439	52		19	Passenger-side front buckle switch circuit resistance not within specification
DTC B2444	43		8	Driver-side side air bag sensor (internal circuit abnormal)
DTC B2445	44		7	Passenger-side side air bag sensor (internal circuit abnormal)
DTC B2691	51		18	Driver-side front buckle switch circuit open or short to power supply
DTC B2692	52		19	Passenger-side front buckle switch circuit open or short to power supply
DTC C1947	49		20	Seat track position sensor circuit short to body ground
DTC C1948				Seat track position sensor circuit resistance not within specification
DTC C1981				Seat track position sensor circuit open or short to power supply
DTC B2867	31		6	Poor connection of any SAS control module connectors
DTC U2017	43		8	Driver-side side air bag sensor (communication error)
DTC U2018	44		7	Passenger-side side air bag sensor (communication error)
