DTC Table [Standard Deployment Control System]

• DTCs are common for present and past malfunction diagnosis.
  NOTE:

  • When DTCs not shown in the DTC table are displayed, replace the SAS control module.
  • After a new SAS control module is installed, the air bag system warning light continuously flashes when the ignition switch is turned to the ON position. This is the deployment authorization standby code output by the SAS control module. Perform the deployment authorization and restore the system to an operational state.
  • If the air bag system warning light does not illuminate or remains illuminated when the ignition switch is turned to the ON position, inspect and repair the air bag system warning light circuitry and then confirm that the air bag system warning light is operational.

DTC OUTPUT SIGNAL DESCRIPTION

DTC	Output signal	Malfunction location

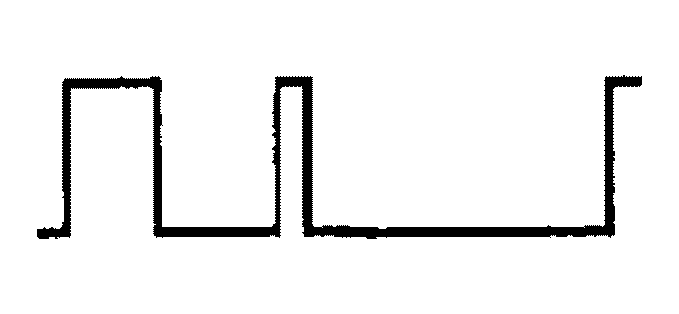

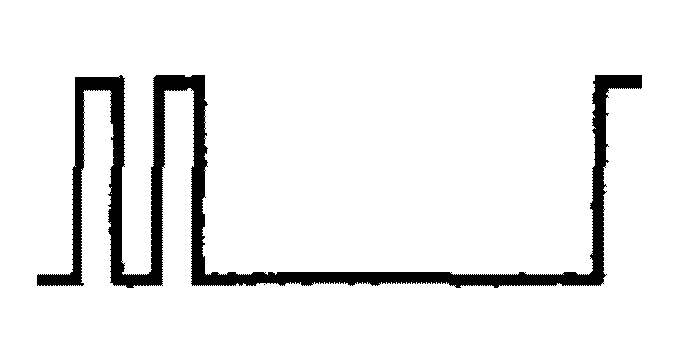

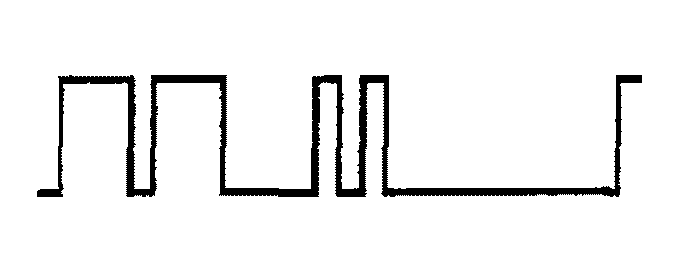

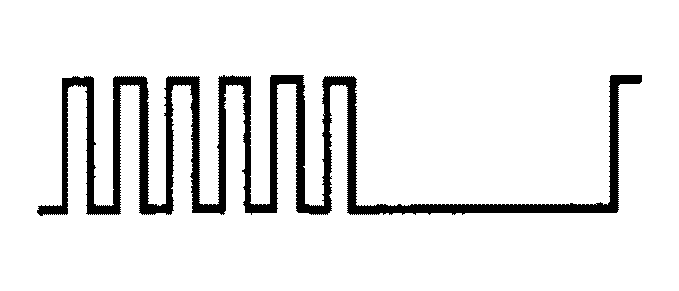

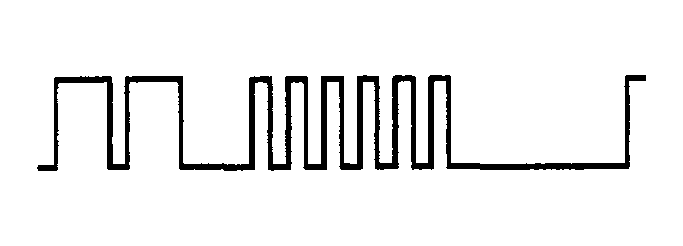

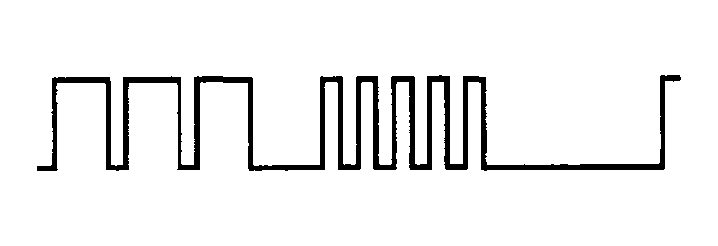

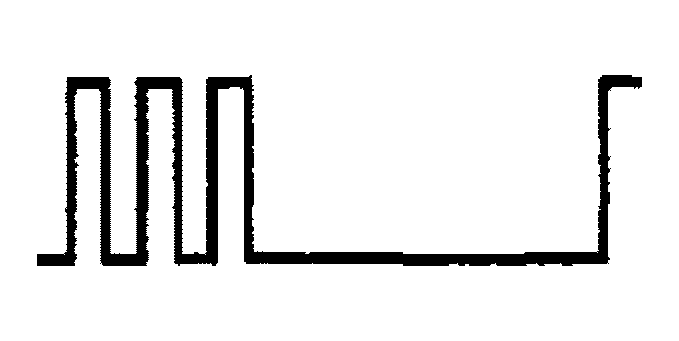

1	Courtesy of MAZDA MOTORS CORP.	SAS control module connector poor connection

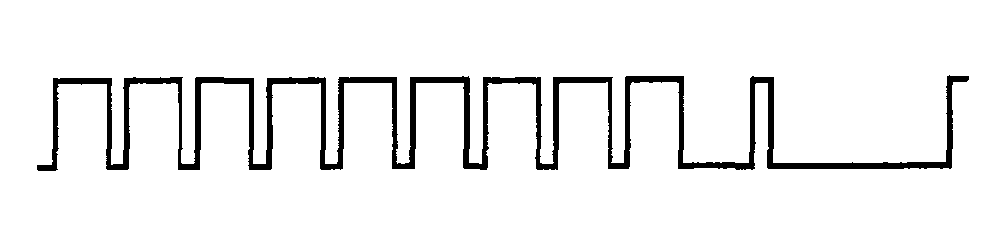

2	Courtesy of MAZDA MOTORS CORP.	SAS control module

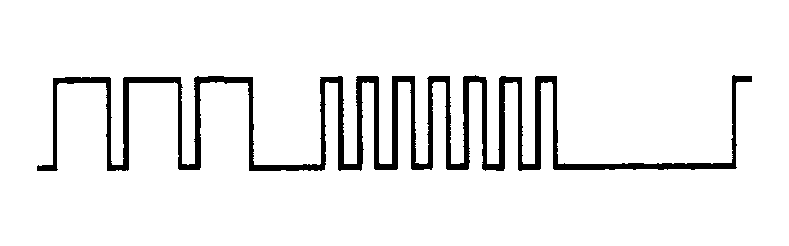

3	Courtesy of MAZDA MOTORS CORP.	Power supply of SAS control module

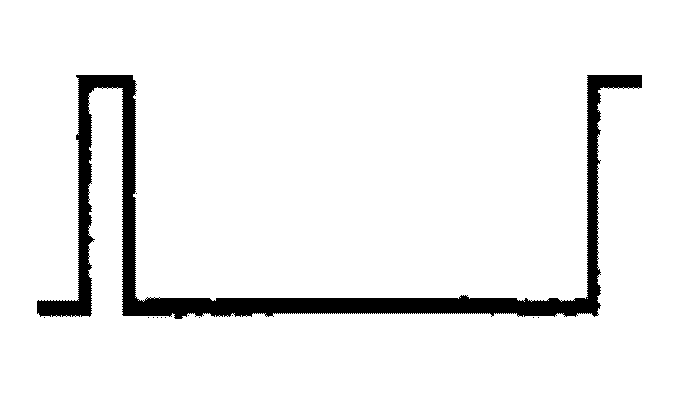

6	Courtesy of MAZDA MOTORS CORP.	Driver-side air bag module system

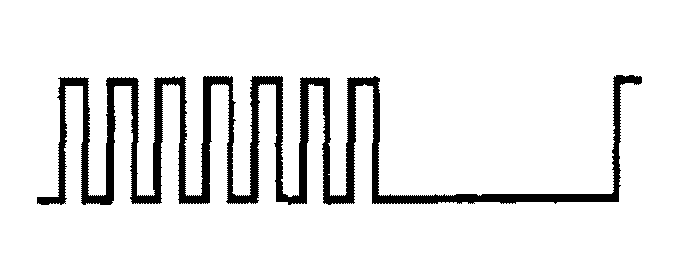

7	Courtesy of MAZDA MOTORS CORP.	Passenger-side air bag module system

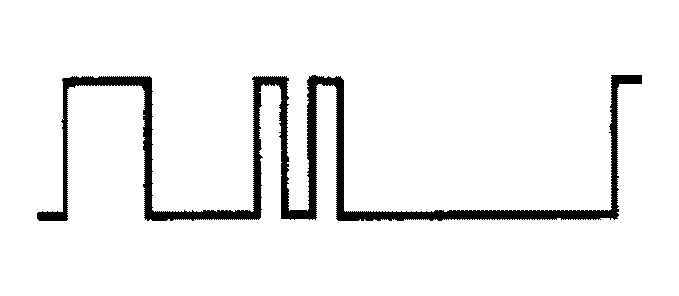

11	Courtesy of MAZDA MOTORS CORP.	Driver-side pre-tensioner seat belt system

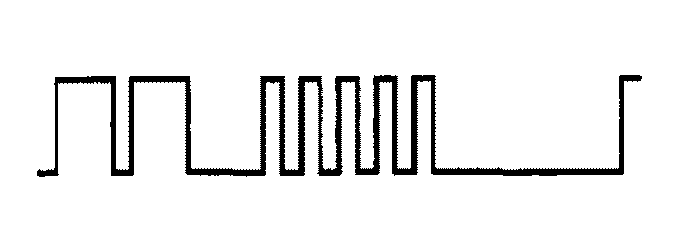

12	Courtesy of MAZDA MOTORS CORP.	Passenger-side pre-tensioner seat belt system

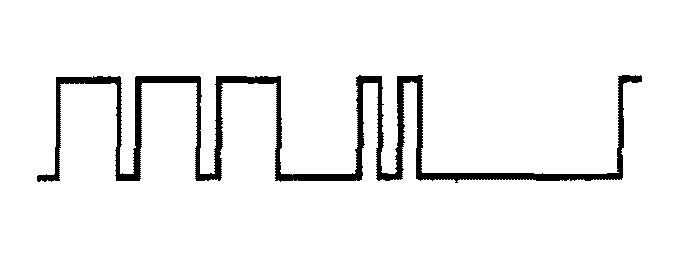

22	Courtesy of MAZDA MOTORS CORP.	Driver-side side air bag sensor system (Internal circuit abnormal)
25	Courtesy of MAZDA MOTORS CORP.	Driver-side side air bag sensor system (Communication error)
26	Courtesy of MAZDA MOTORS CORP.	Driver-side side air bag module system
32	Courtesy of MAZDA MOTORS CORP.	Passenger-side side air bag sensor system (Internal circuit abnormal)
35	Courtesy of MAZDA MOTORS CORP.	Passenger-side side air bag sensor system (Communication error)
37	Courtesy of MAZDA MOTORS CORP.	Passenger-side side air bag module system
91	Courtesy of MAZDA MOTORS CORP.	Air bag system warning light circuit
-	Continuously flashes	Deployment authorization standby code
