SAS Control Module Removal/Installation [Standard Deployment Control System]

WARNING:

Handling the SAS control module improperly can accidentally deploy the air bag modules, which may seriously injure you. Read the service warnings and cautions before handling the SAS control module. (See SERVICE WARNINGS or SERVICE CAUTIONS .)

Turn the ignition switch to LOCK position.
Disconnect the negative battery cable and wait for 1 min or more.
Partially peel off the floor covering.
Remove in the order indicated in Fig 1.

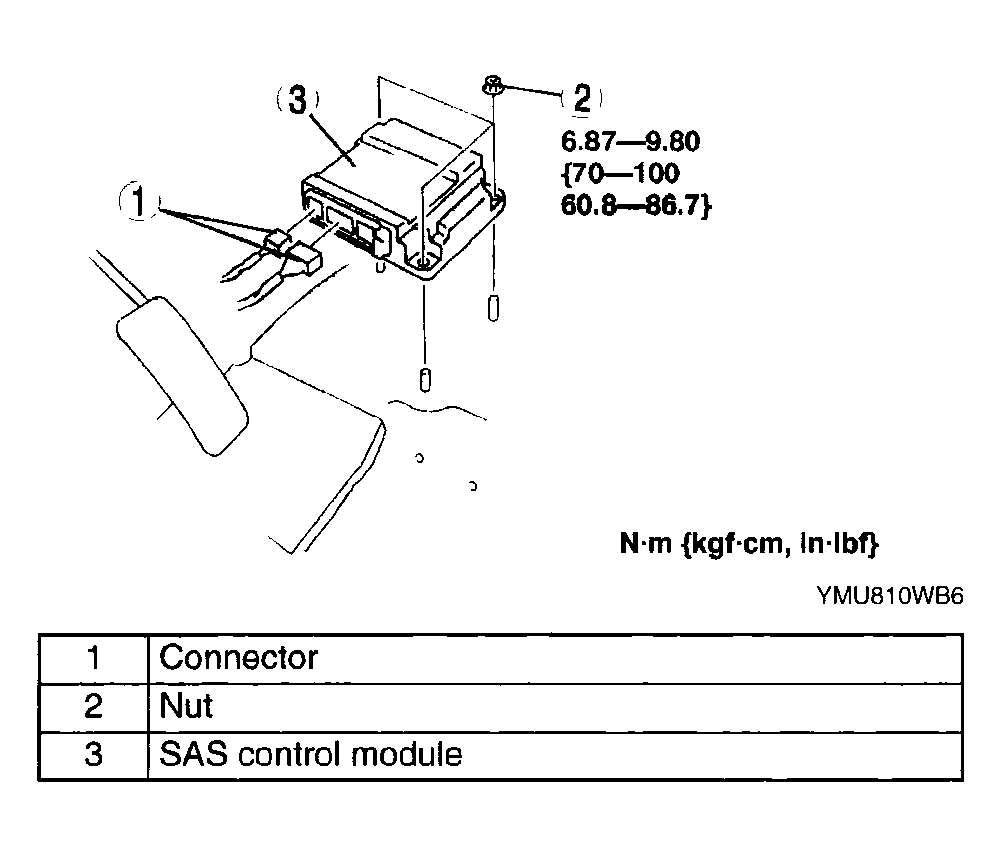

Fig 1: SAS Control Module With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Turn the ignition switch to ON position.
Verify that the air bag system warning light illuminates for approx. 6 s and goes out.
- If the air bag system warning light does not operate in the manner described above, there are malfunctions in the system. Inspect the system using the on-board diagnostic function. (See FOREWORD [STANDARD DEPLOYMENT CONTROL SYSTEM] .)

NOTE:

When a new SAS control module has been installed, the air bag system warning light flashes continuously if there aren't any malfunctions in the system. Perform the air bag module deployment authorization procedure. (See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT AUTHORIZATION PROCEDURES [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
