Passenger-Side Air Bag Module Removal/Installation [Two-Step Deployment Control System]
>>
Connector (A) Installation Note
Connector (A) Installation Note
Connect the connector, then install it as shown in
Fig 1
.

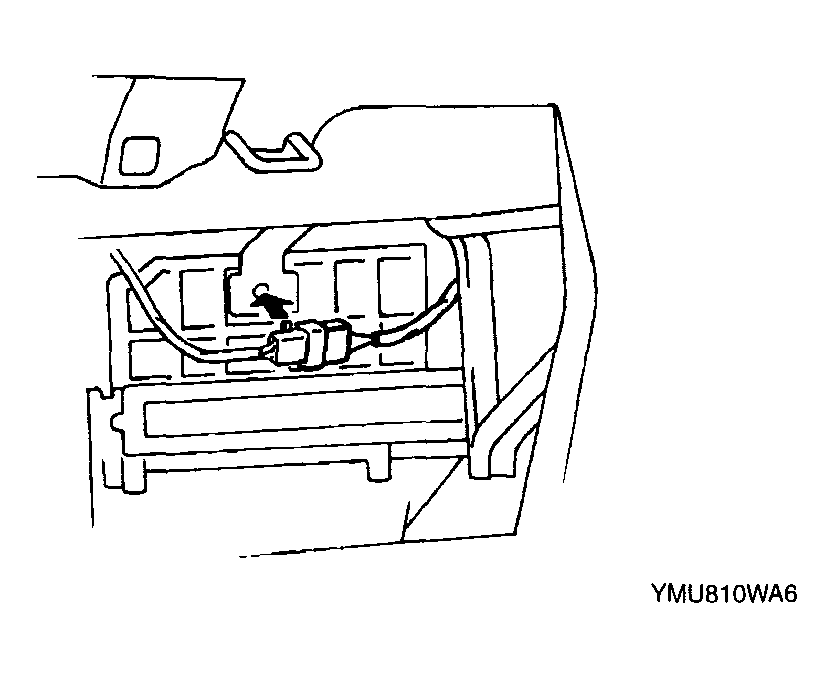

Fig 1: Connecting Connector
Courtesy of MAZDA MOTORS CORP.
