Connector Removal Note

  1. Using a flathead screwdriver, pry out the connector stopper plate.
  2. Disconnect the connector.

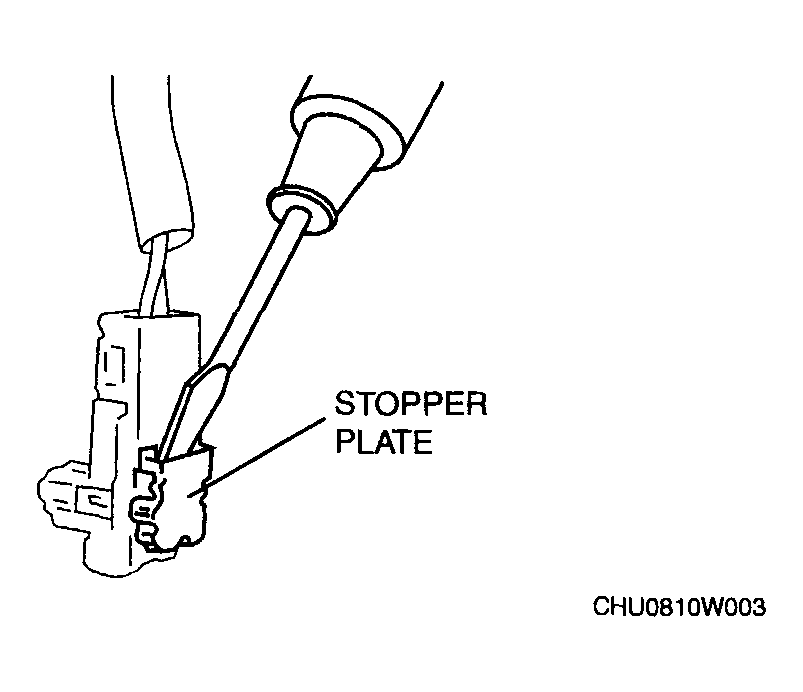

Fig 1: Prying Out Connector Stopper Plate
G04314857Courtesy of MAZDA MOTORS CORP.
