Input/Turbine Speed Sensor Connector End View
Input/Turbine Speed Sensor Connector End View

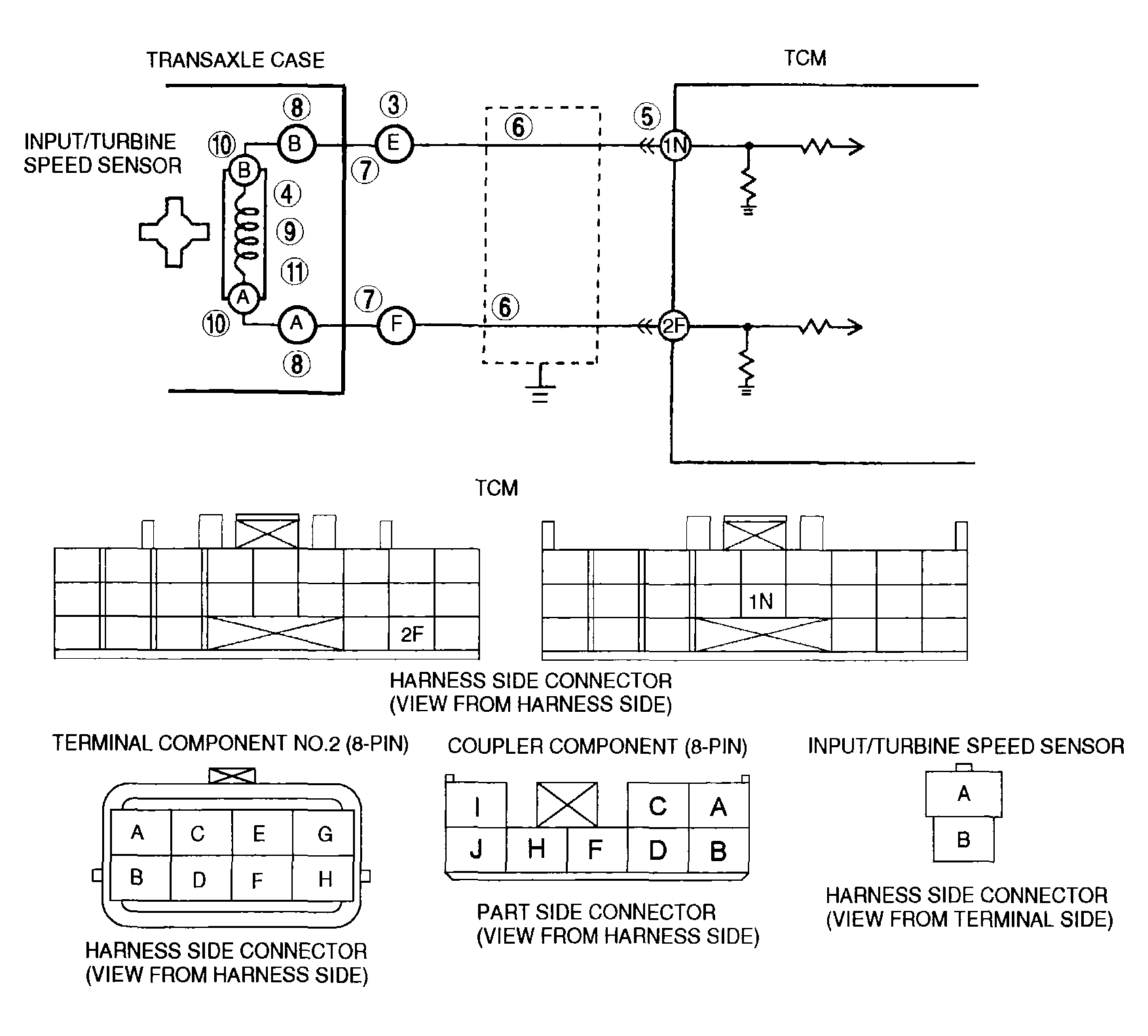

Fig 1: Input/Turbine Speed Sensor Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
