Front A/C Unit Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in Fig 1.
  2. Assemble in the reverse order of disassembly.

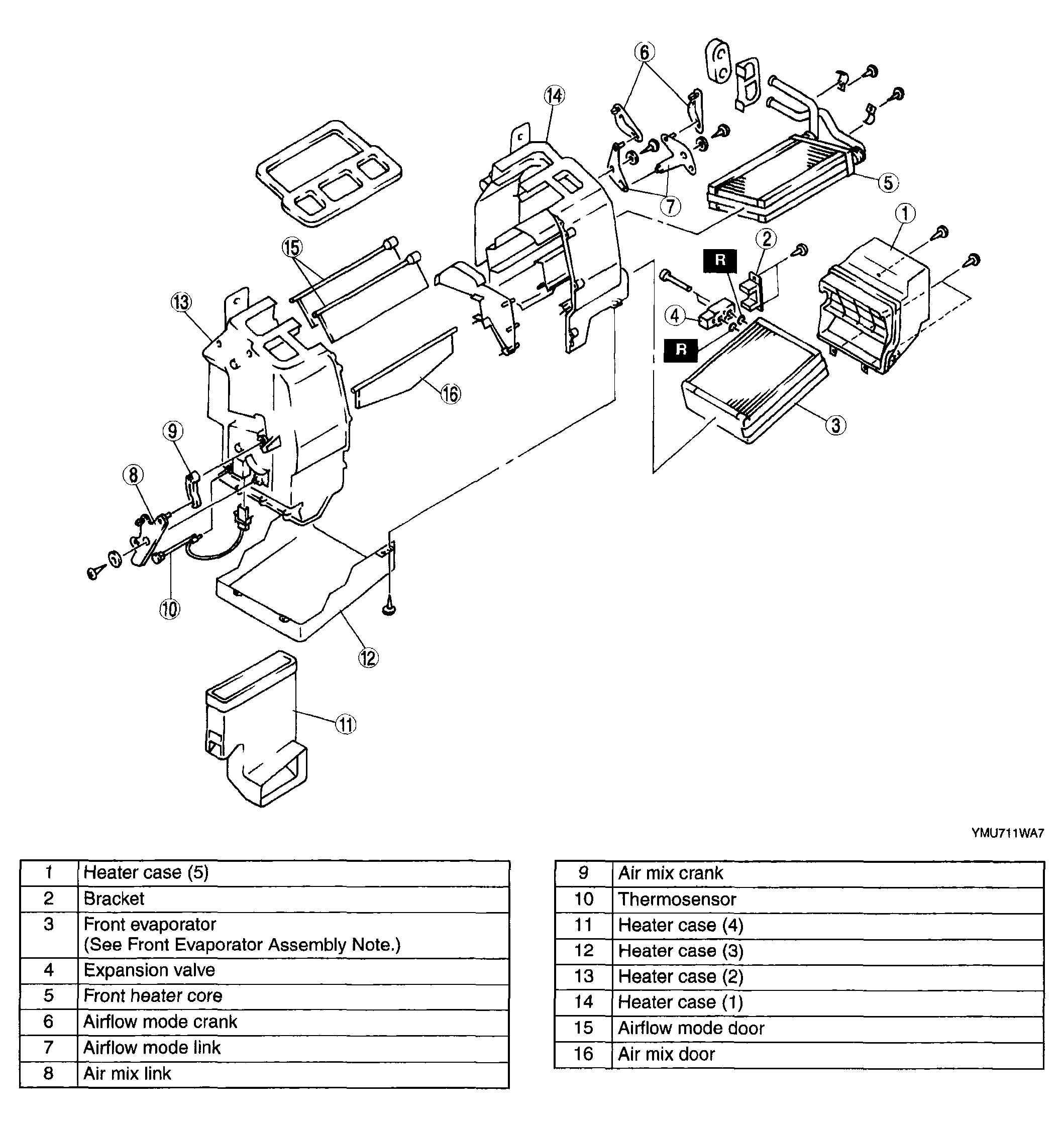

Fig 1: Exploded View Of Front A/C Unit
G04328945Courtesy of MAZDA MOTORS CORP.
