Panel Light Control Switch Removal/Installation: Notes

1. Disconnect the negative battery cable.
2. Remove the driver-side side panel.
3. Remove in the order indicated in Fig 1.
4. Install in the reverse order of removal.

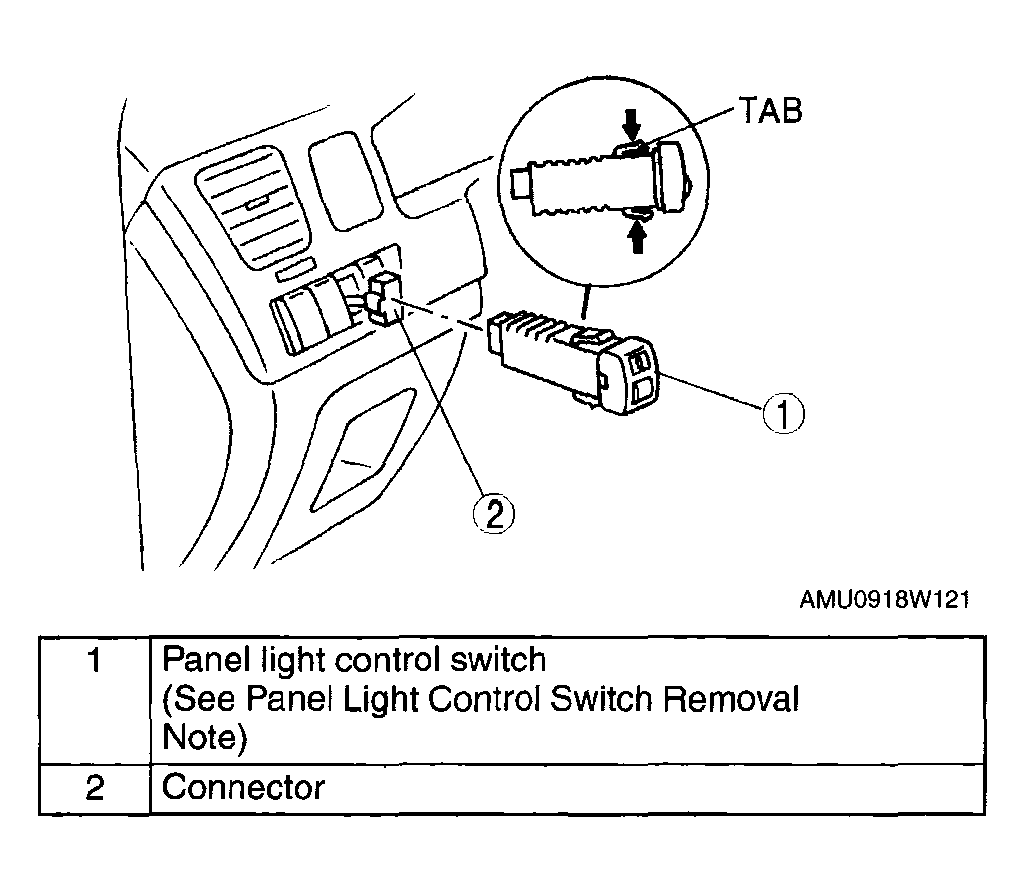

Fig 1: Removing/Installing Panel Light Control Switch

Courtesy of MAZDA MOTORS CORP.
