Home >> Mazda >> 2006 >> B4000 Base, Standard >> Repair and Diagnosis >> Steering >> Power Steering >> Power Steering System >> Power Steering Fluid Cooler >> Notes

Power Steering Fluid Cooler: Notes

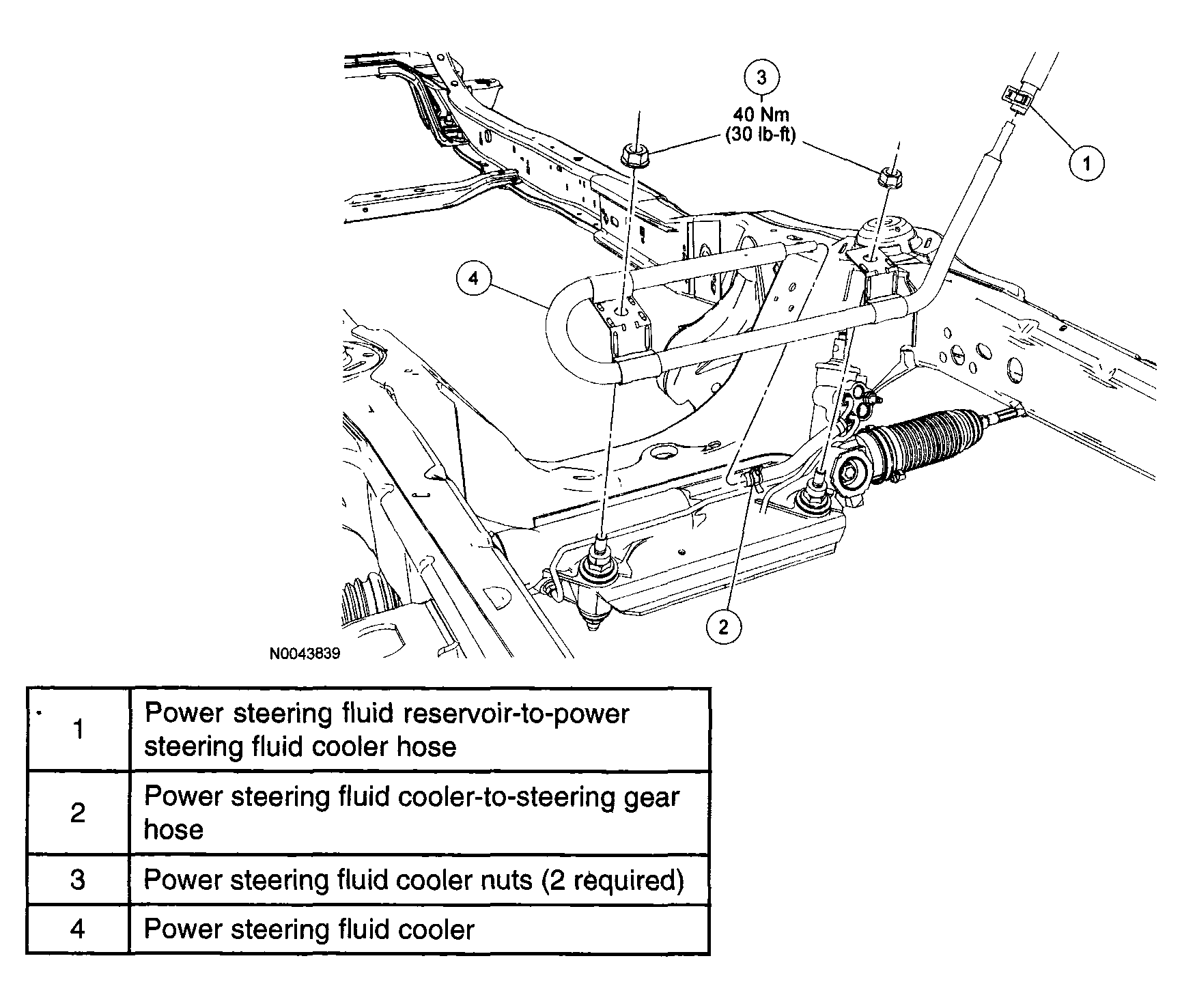

Fig 1: Removing/Installing Power Steering Fluid Cooler

G04309554

Courtesy of MAZDA MOTORS CORP.
