Connector End Views - Automatic Transmission

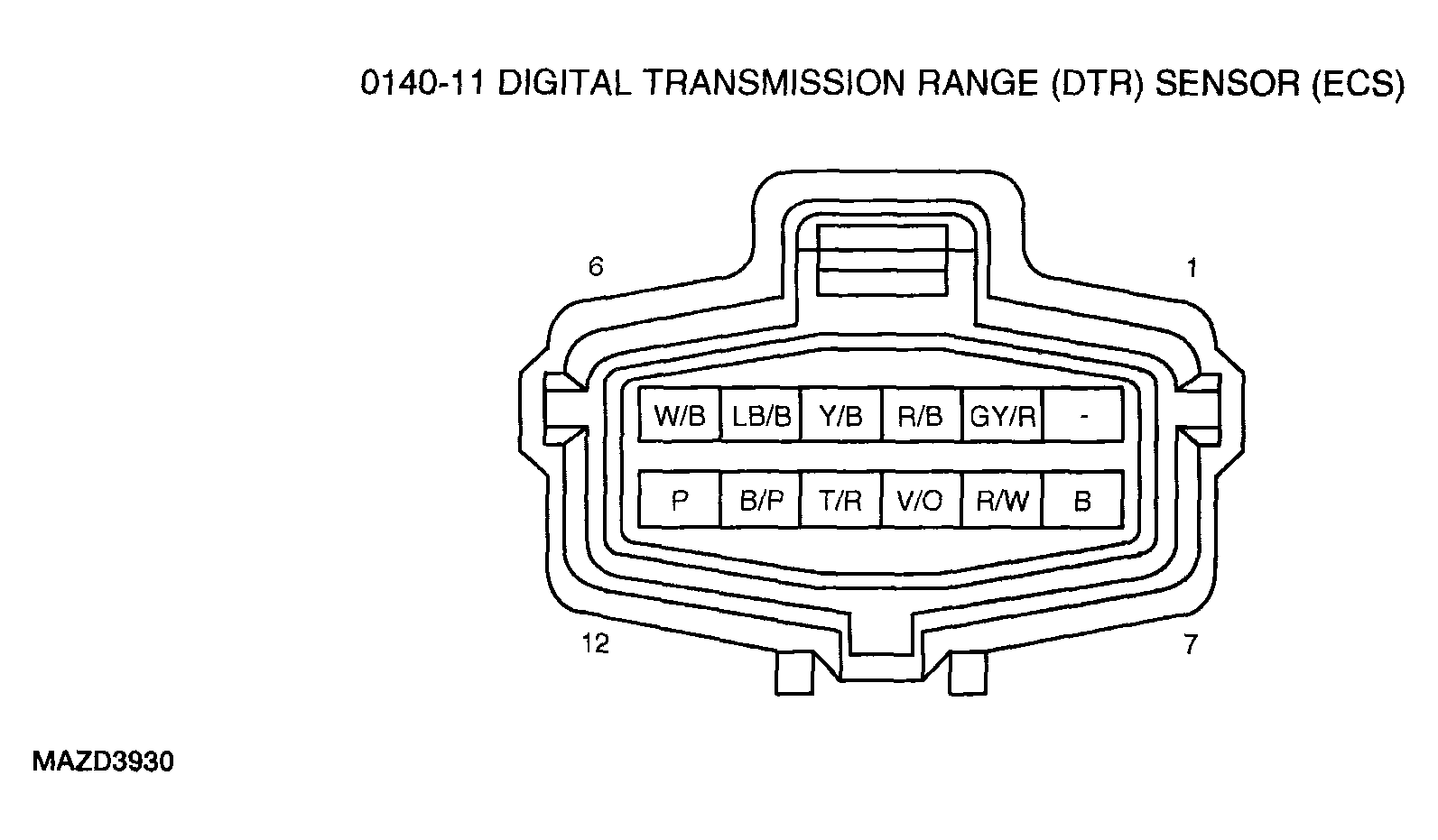

Fig 1: Identifying Digital Transmission Range Sensor Terminals

Courtesy of MAZDA MOTORS CORP.

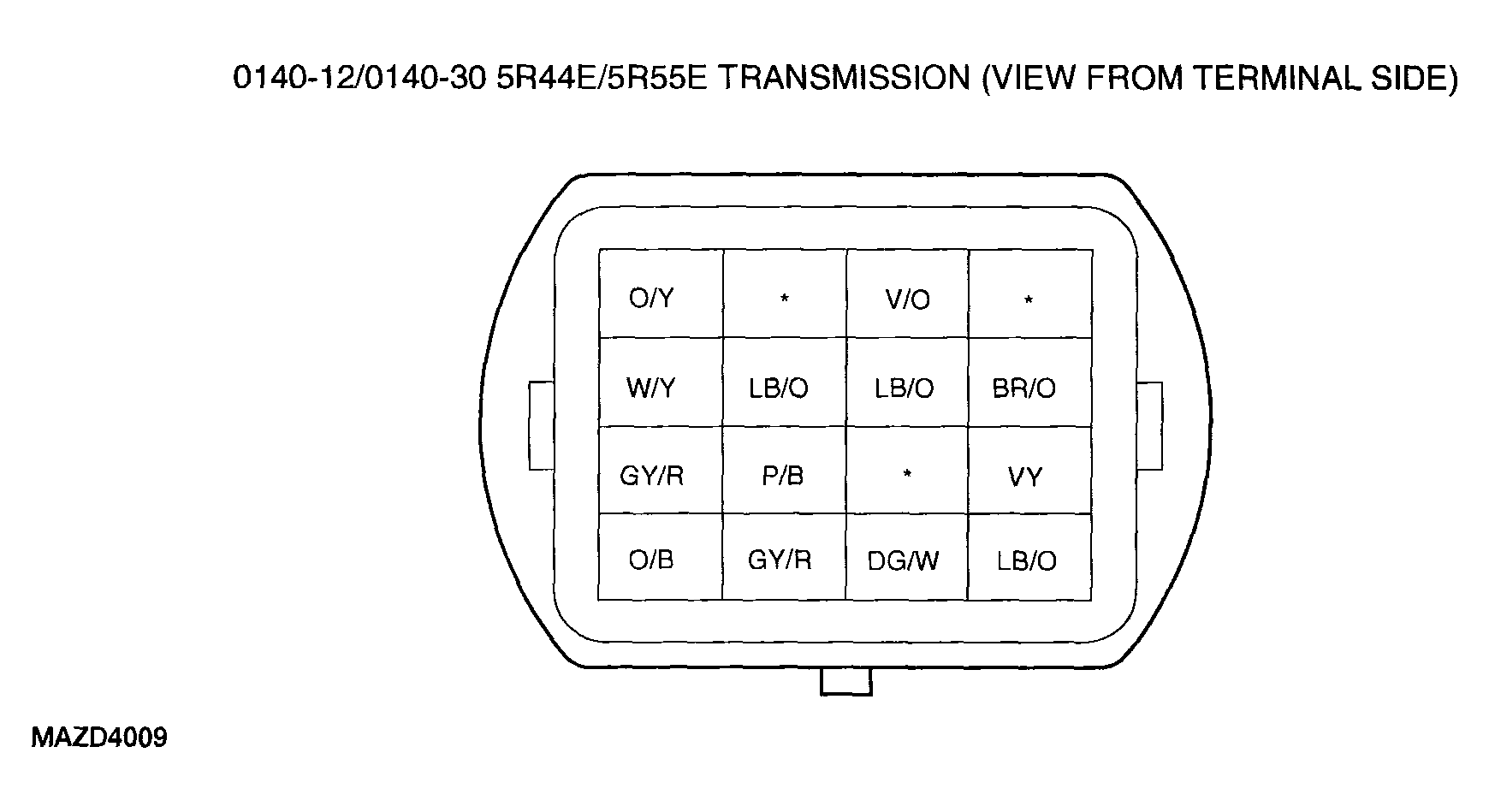

Fig 2: Identifying Transmission Terminals

Courtesy of MAZDA MOTORS CORP.

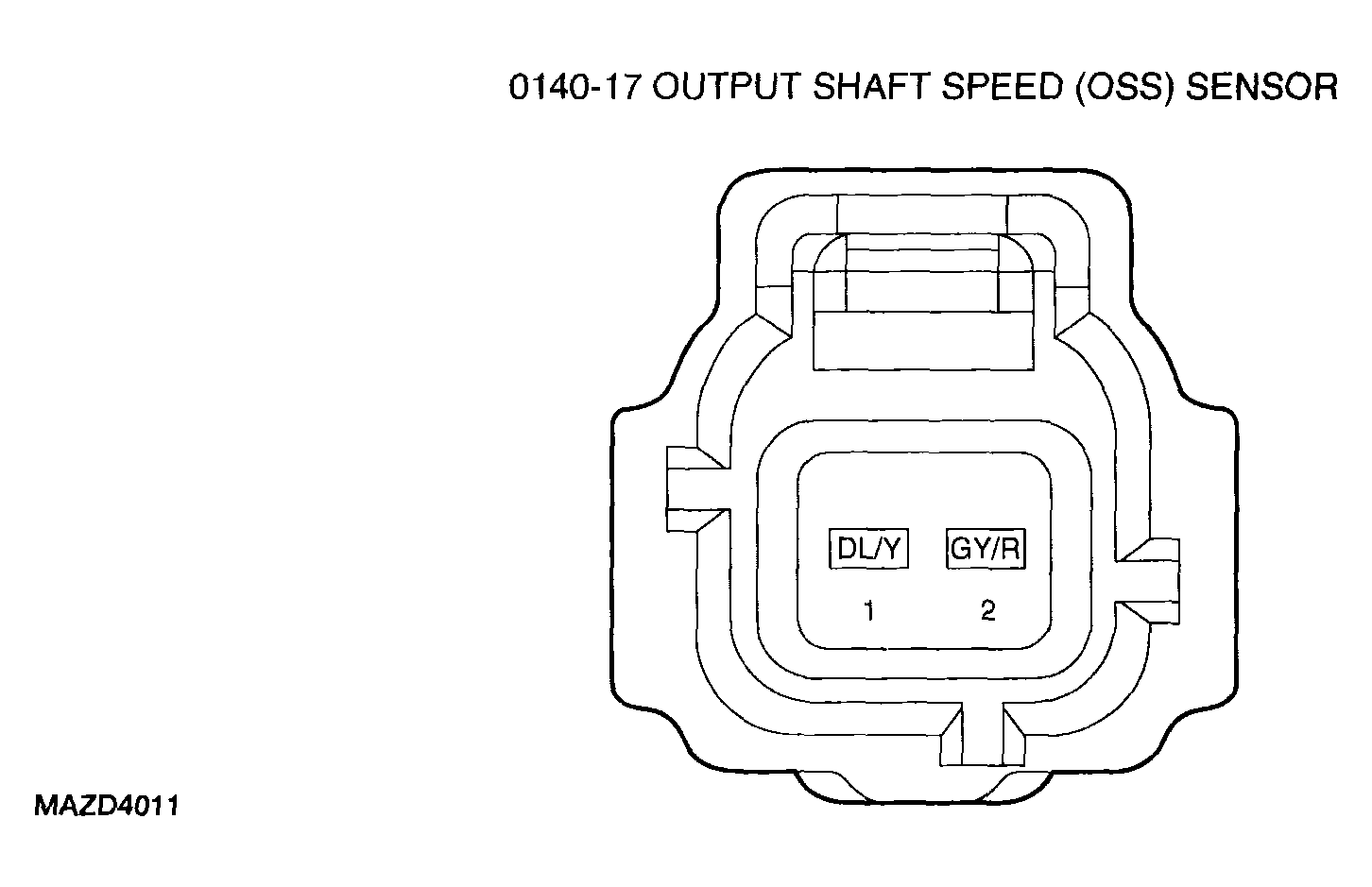

Fig 3: Identifying Output Shaft Speed Sensor Terminals

Courtesy of MAZDA MOTORS CORP.
