Steering Gear - 2WD: Notes

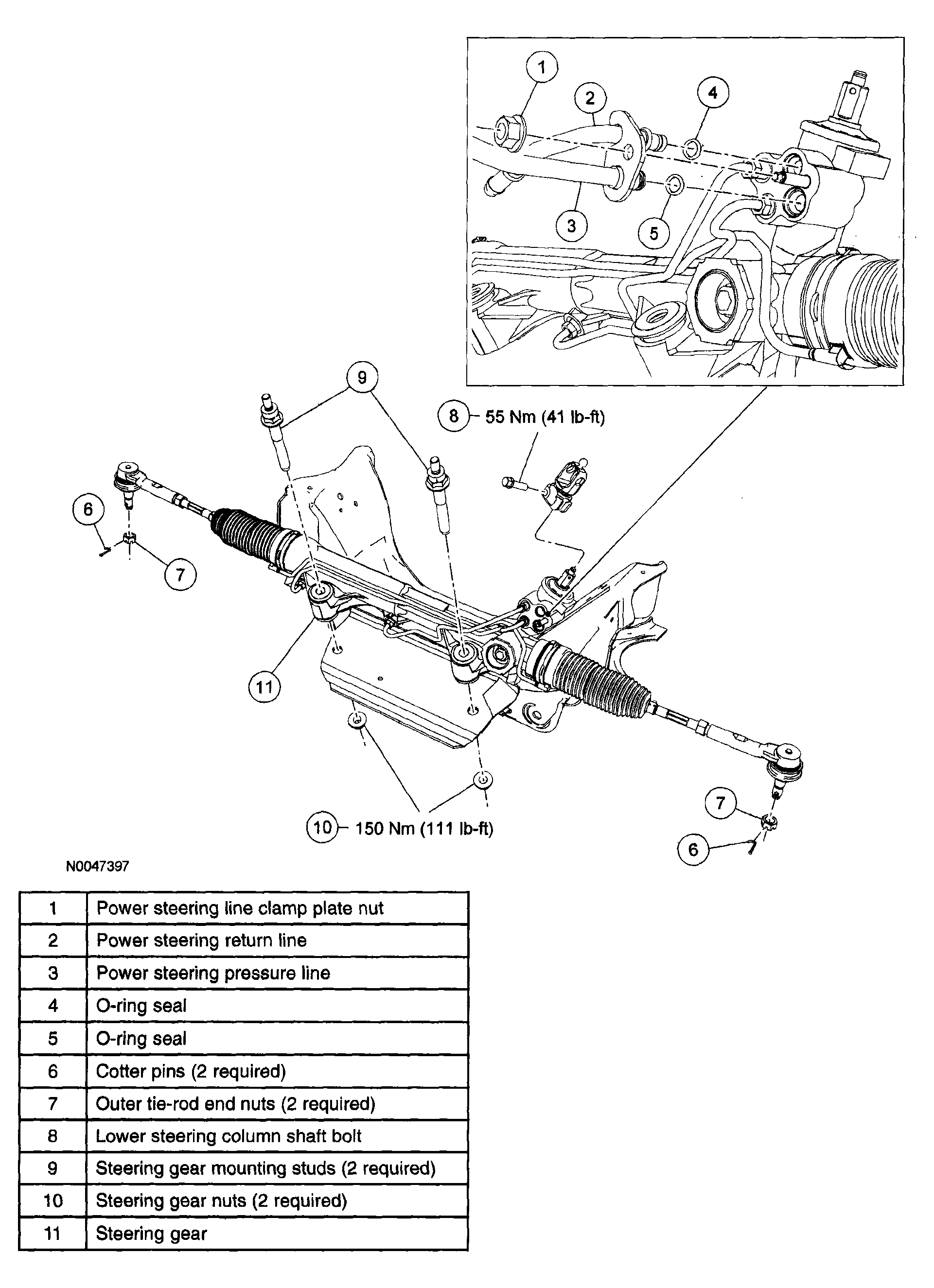

Fig 1: Removing/Installing Steering Gear With Torque Specifications

G04309569

Courtesy of MAZDA MOTORS CORP.
