Steering Column Components

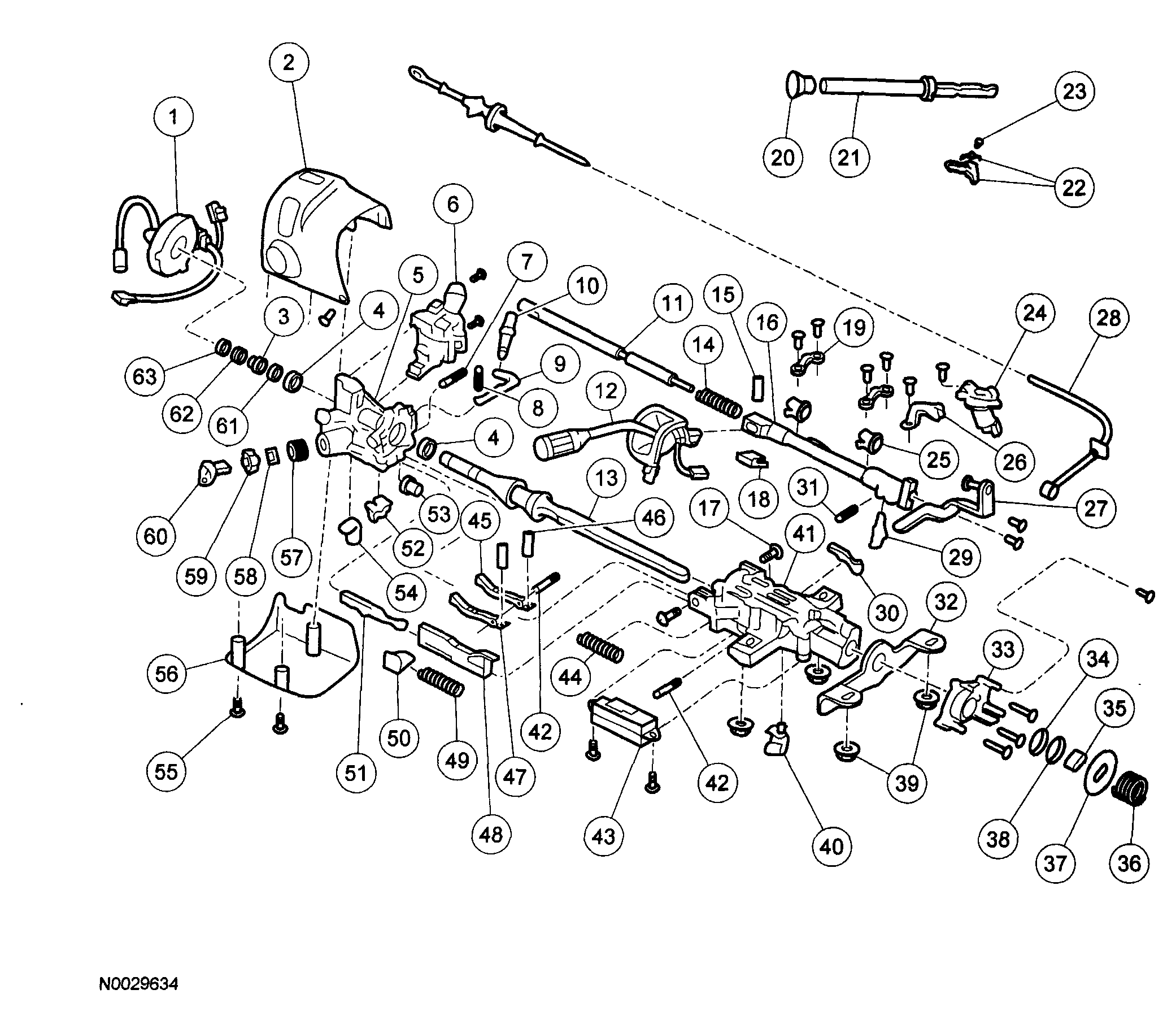

Fig 1: Exploded View Of Steering Column - Automatic Transmission (1 Of 2)
G04309632Courtesy of MAZDA MOTORS CORP.

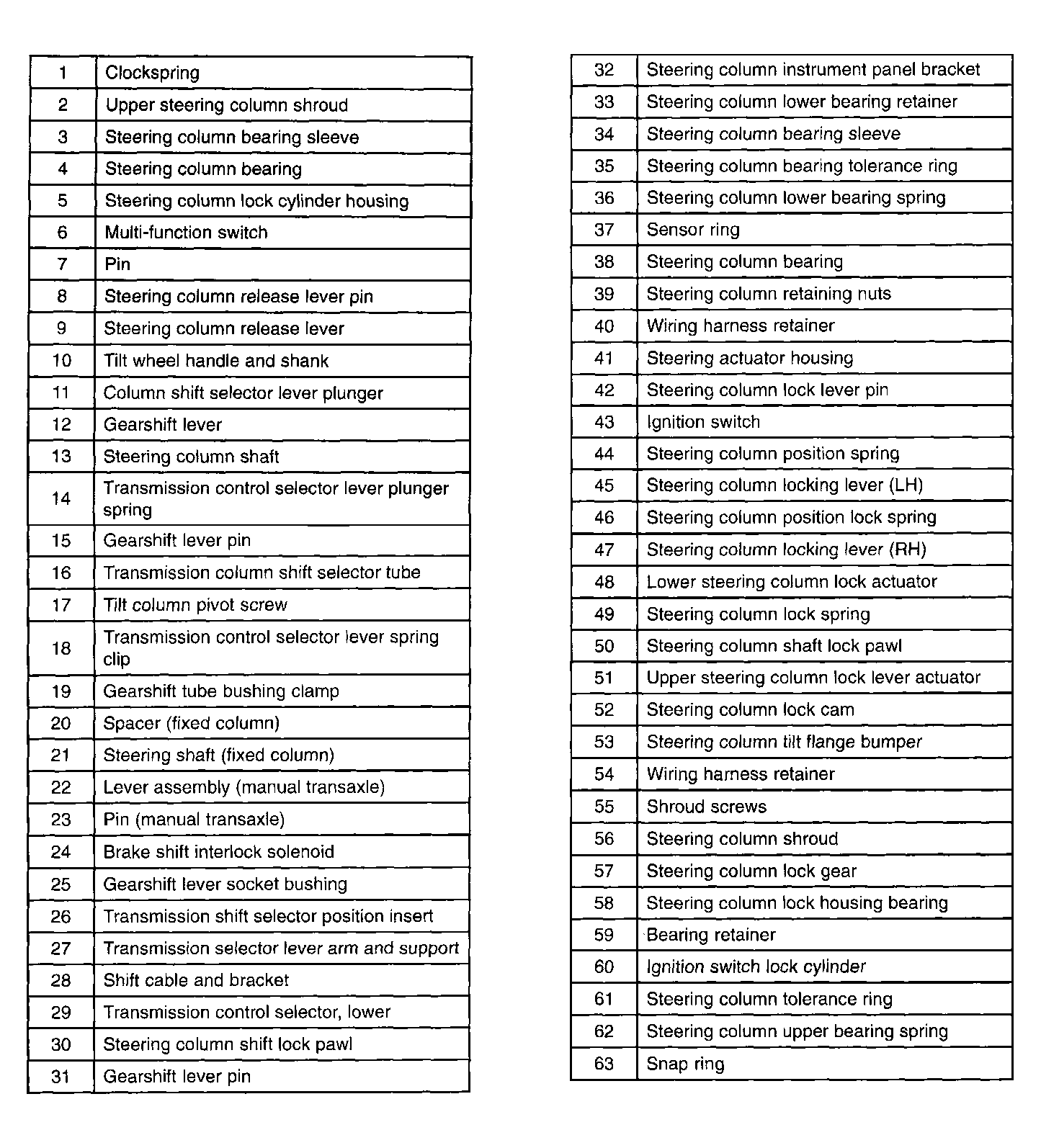

Fig 2: Exploded View Of Steering Column - Automatic Transmission (2 Of 2)
G04309633Courtesy of MAZDA MOTORS CORP.
