Clutch Triple Function Switch Jumper Connector End View (C2103)
Clutch Triple Function Switch Jumper Connector End View (C2103)

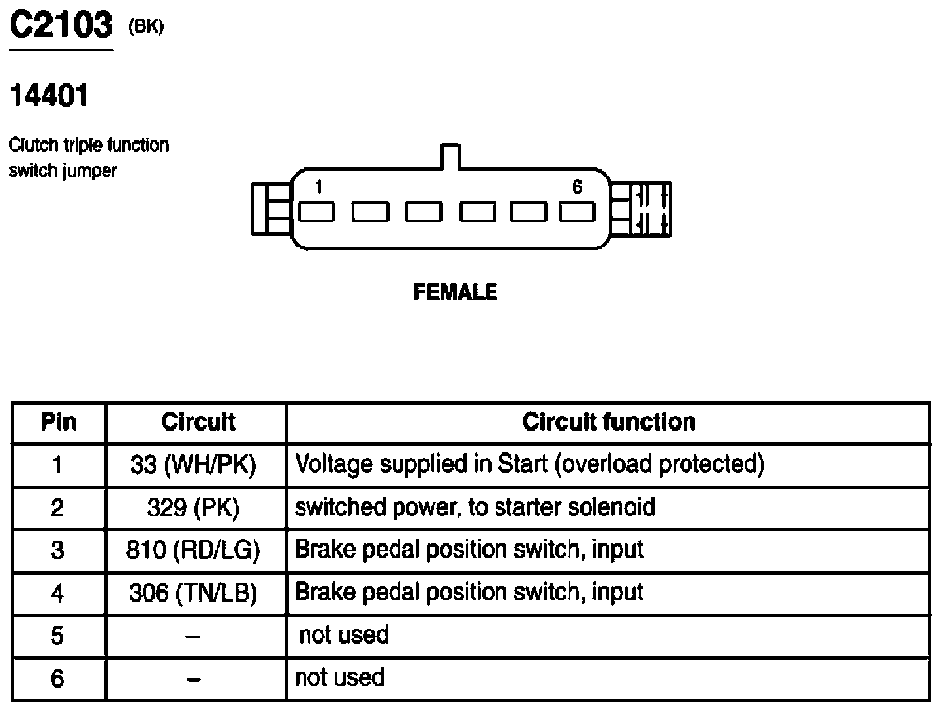

Fig 1: Clutch Triple Function Switch Jumper Connector End View (C2103)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
