Audio Unit Connector End View (C290b)

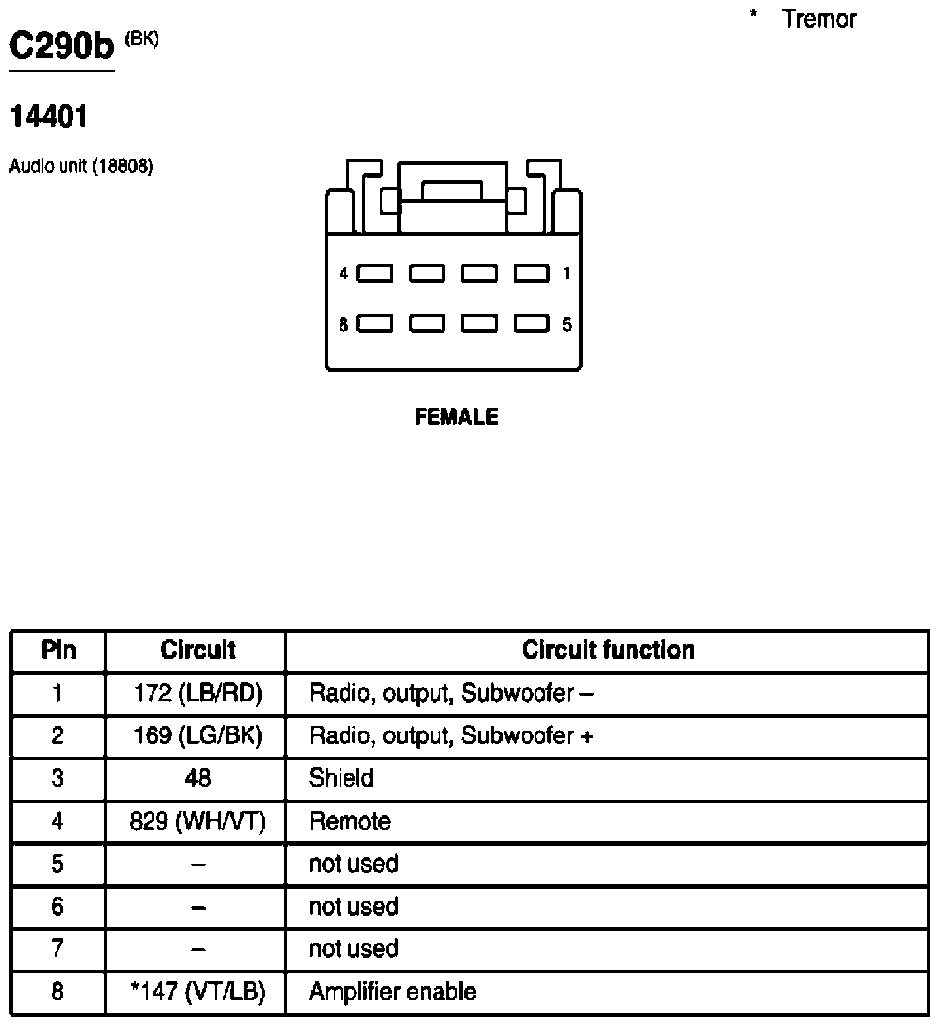

Fig 1: Audio Unit Connector End View (C290b)

G07847629

Courtesy of FORD MOTOR CO.
