Audio Unit Connector End View (C290a)

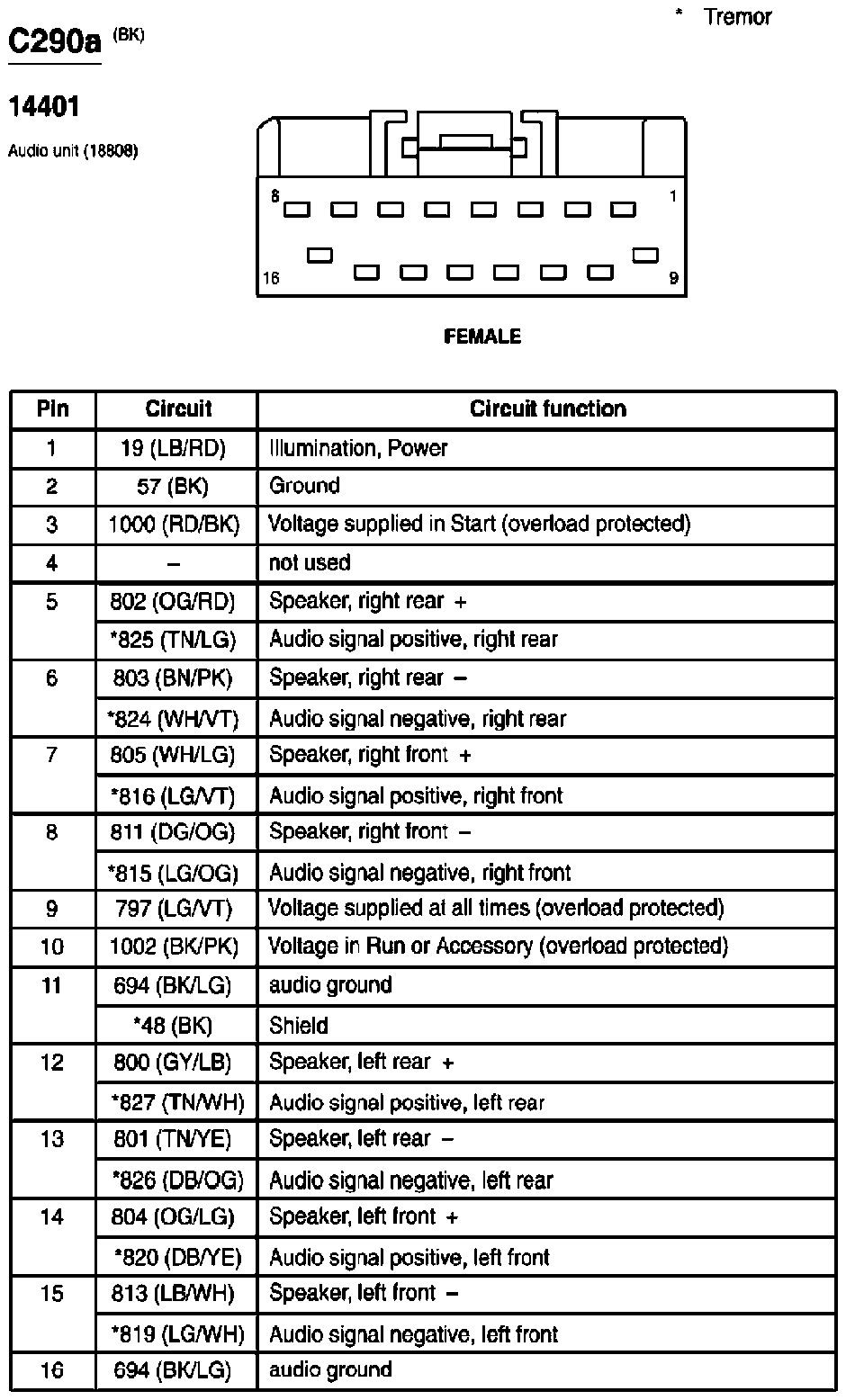

Fig 1: Audio Unit Connector End View (C290a)

G07847628

Courtesy of FORD MOTOR CO.
