Axle Structural View Rear (Standard)

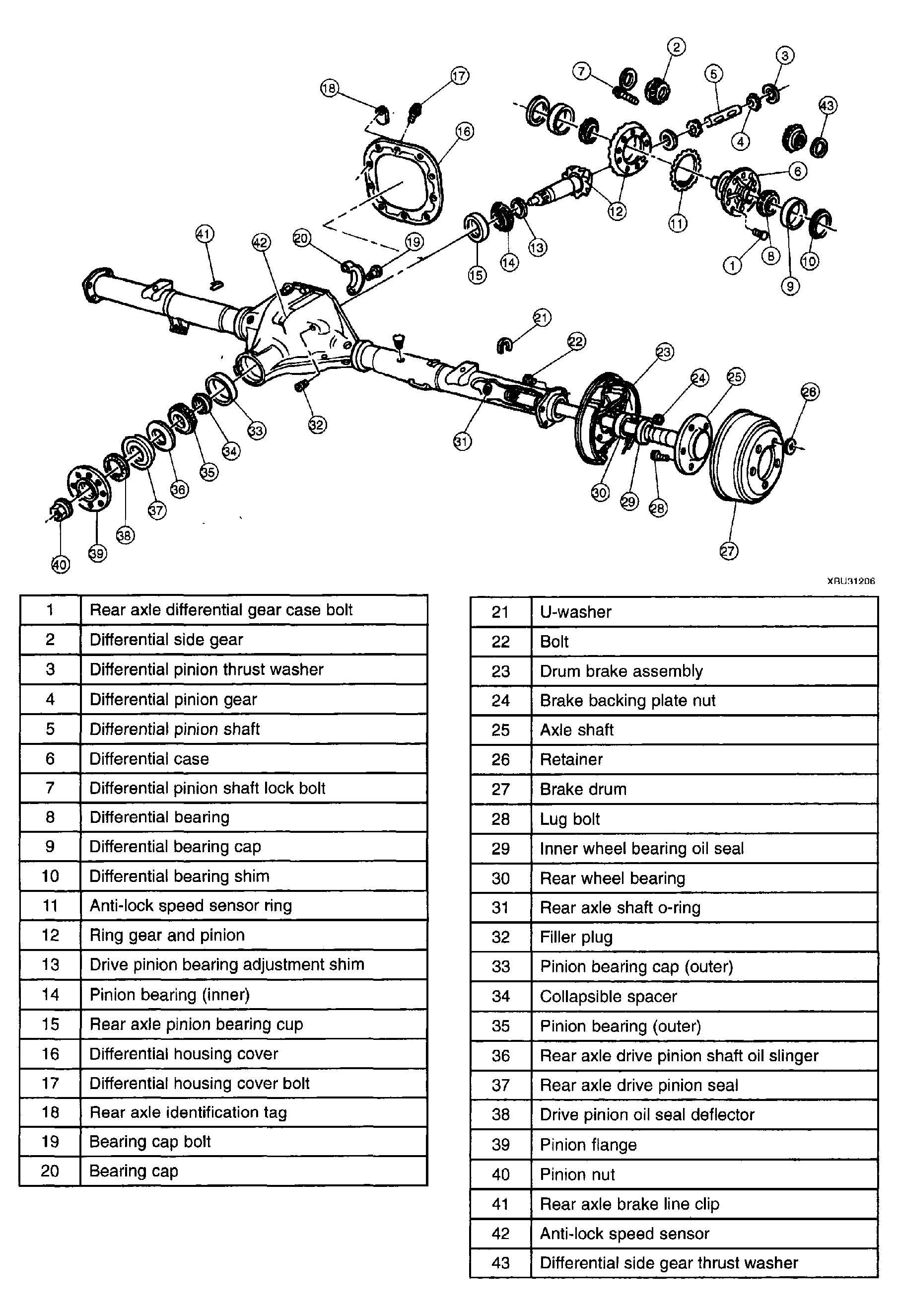

Fig 1: Exploded View Of Axle Structural View Rear (Standard)

G04308692

Courtesy of MAZDA MOTORS CORP.
