Connector End Views - Rear View Mirrors

REAR VIEW MIRRORS CONNECTOR END VIEWS

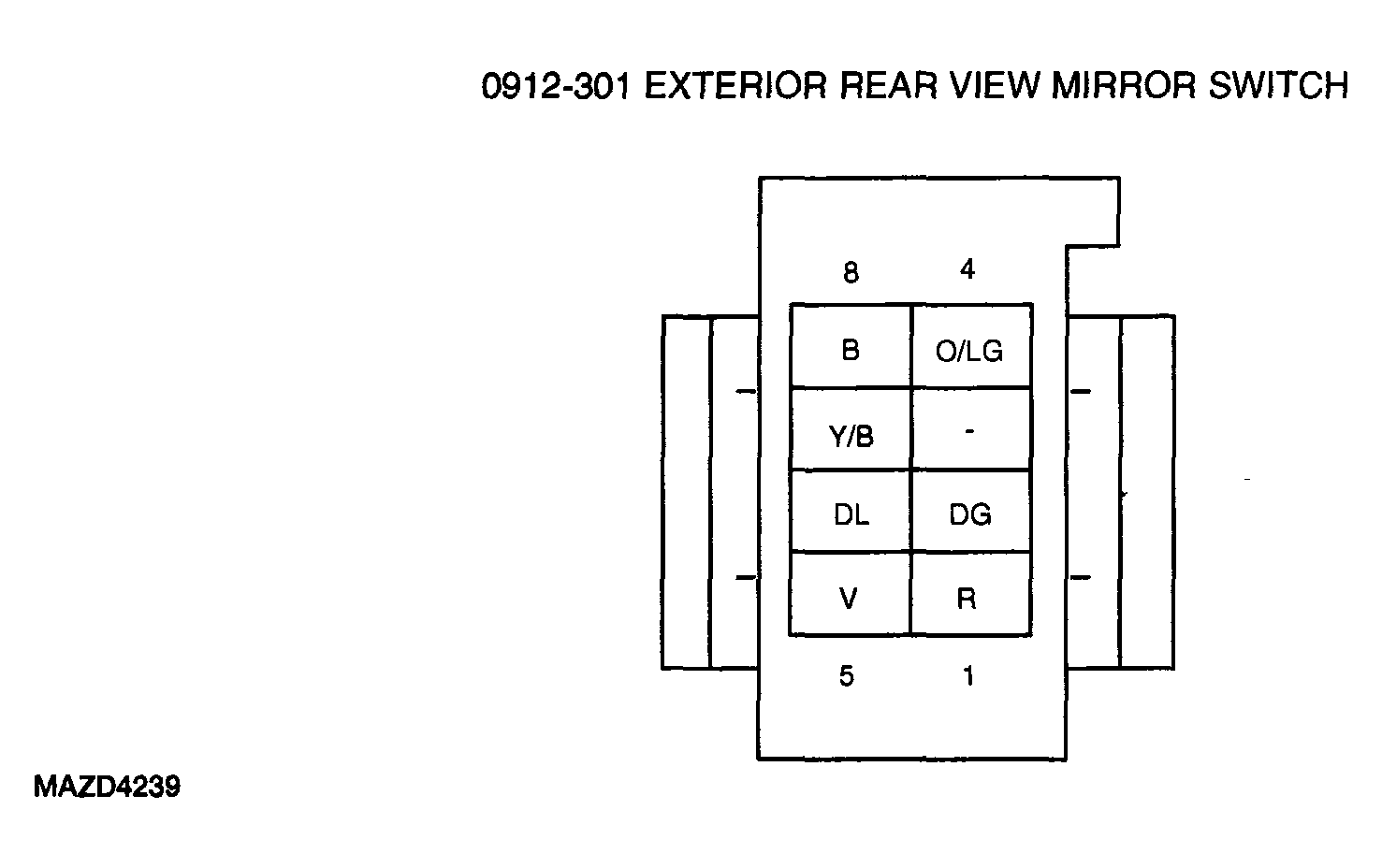

G04310026

G04310027

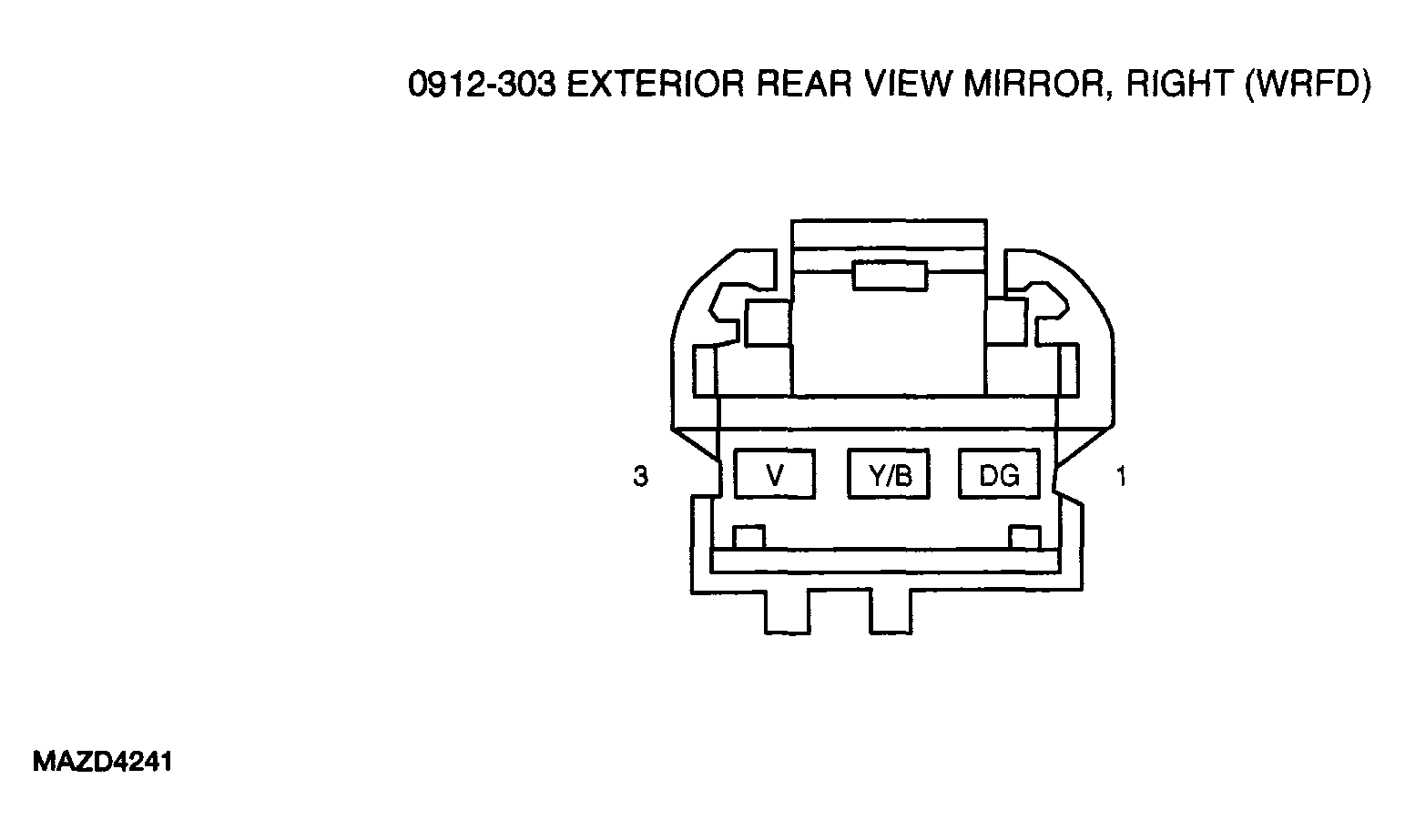

G04310028
