Inner Tie Rod: Notes

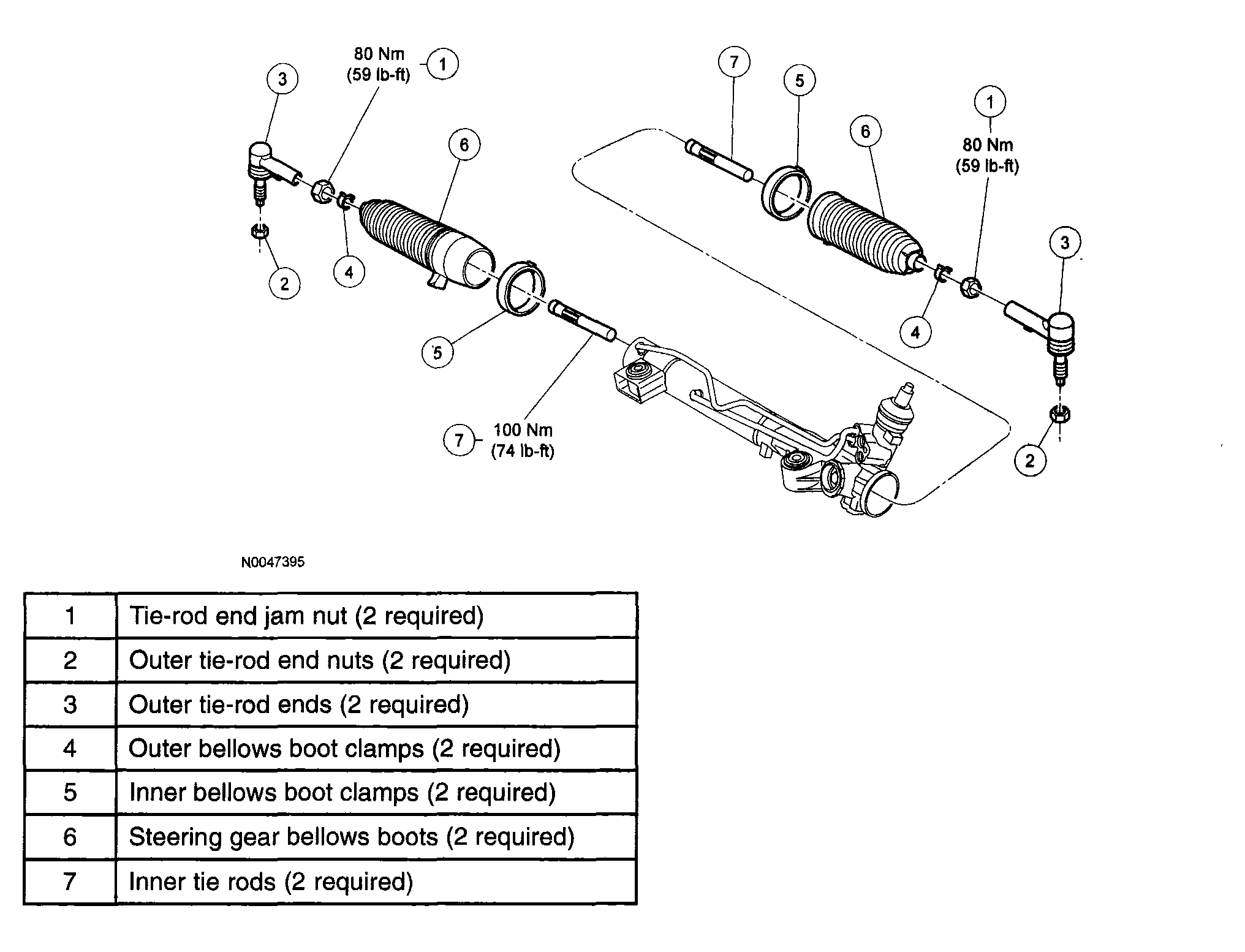

Fig 1: Exploded View Of Power Steering With Torque Specifications

G04309550

Courtesy of MAZDA MOTORS CORP.
