Instrument Cluster: Notes

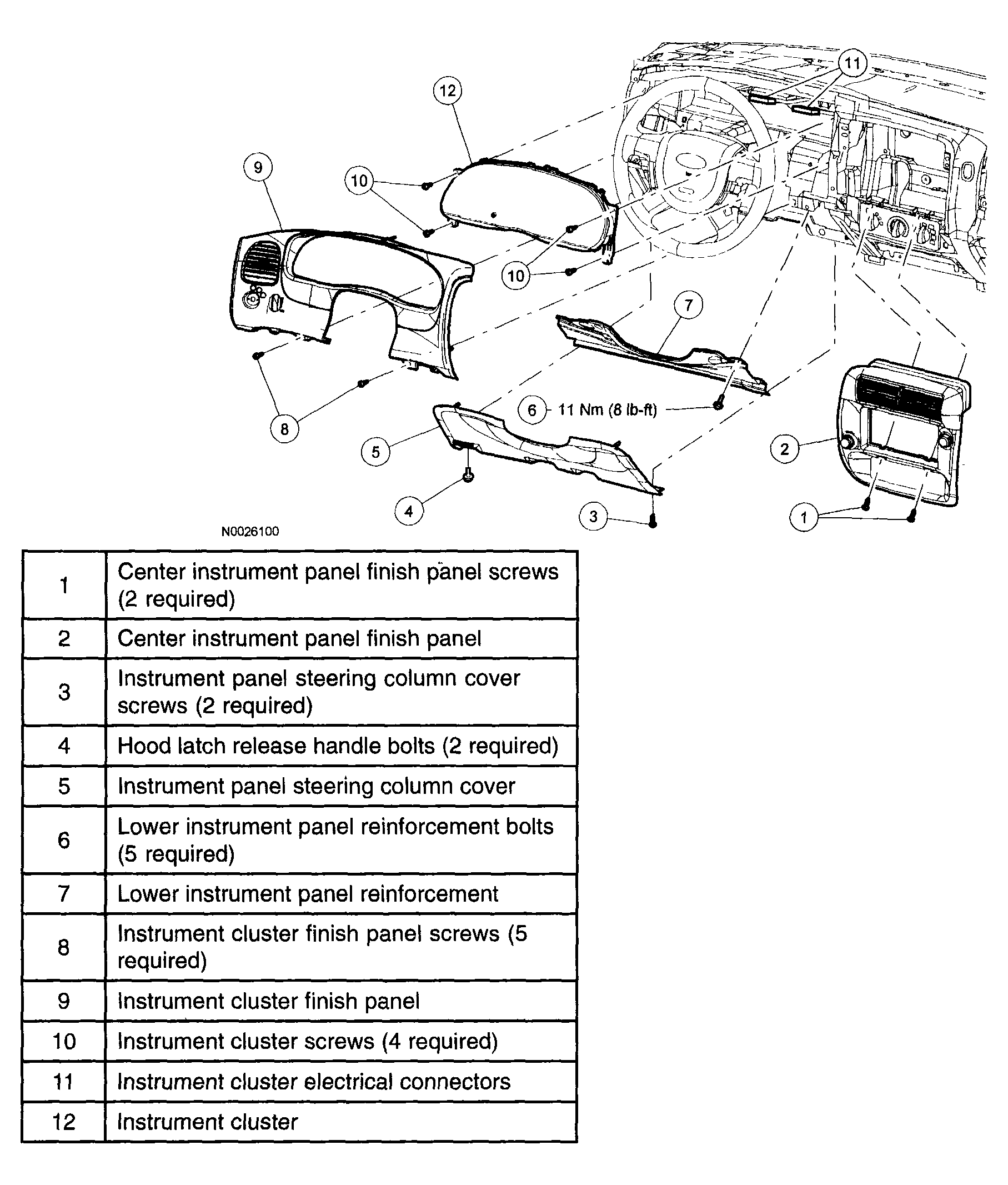

Fig 1: Exploded View Of Instrument Cluster With Torque Specifications

G04310565

Courtesy of MAZDA MOTORS CORP.
