Power Steering Pump - 3.0L
>>
Notes
Power Steering Pump - 3.0L: Notes

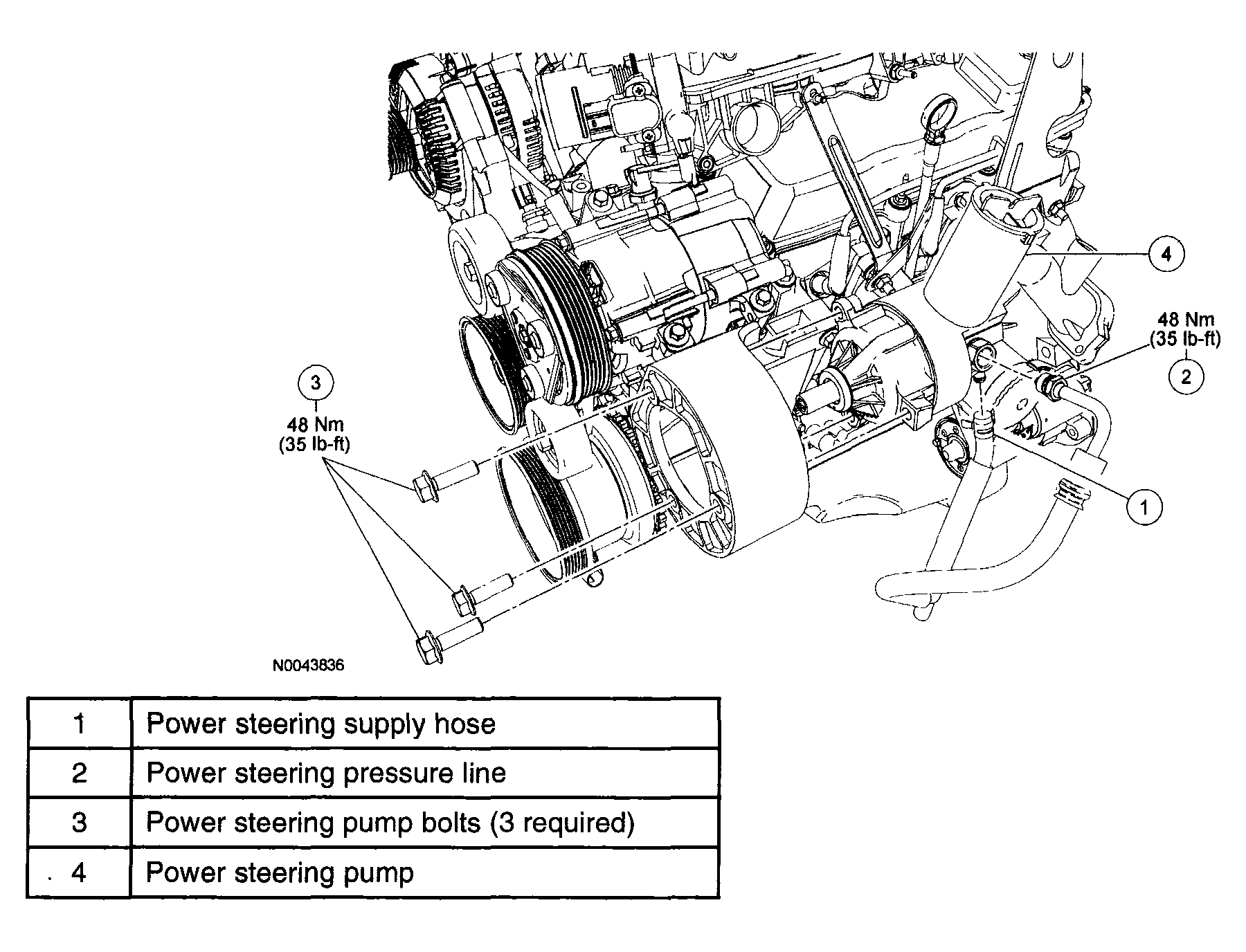

Fig 1: Removing/Installing Power Steering Pump - 3.0L With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
