POWER STEERING FLUID RESERVOIR - Clll PUMP
>>
Notes
POWER STEERING FLUID RESERVOIR - Clll PUMP: Notes
2.3L Engine

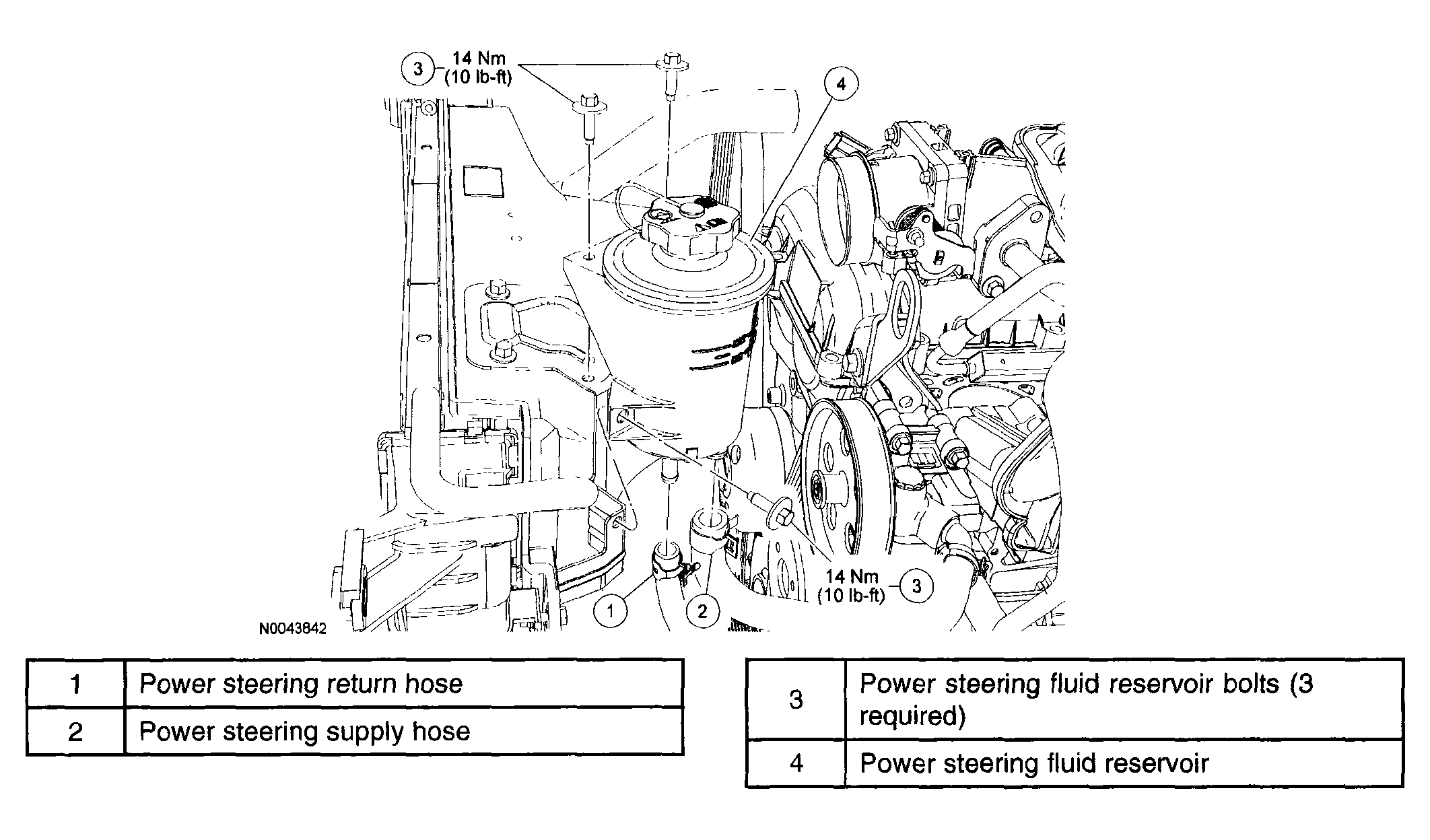

Fig 1: Removing/Installing Power Steering Fluid Reservoir Clll Pump (2.3L Engine) With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
4.0L Engine

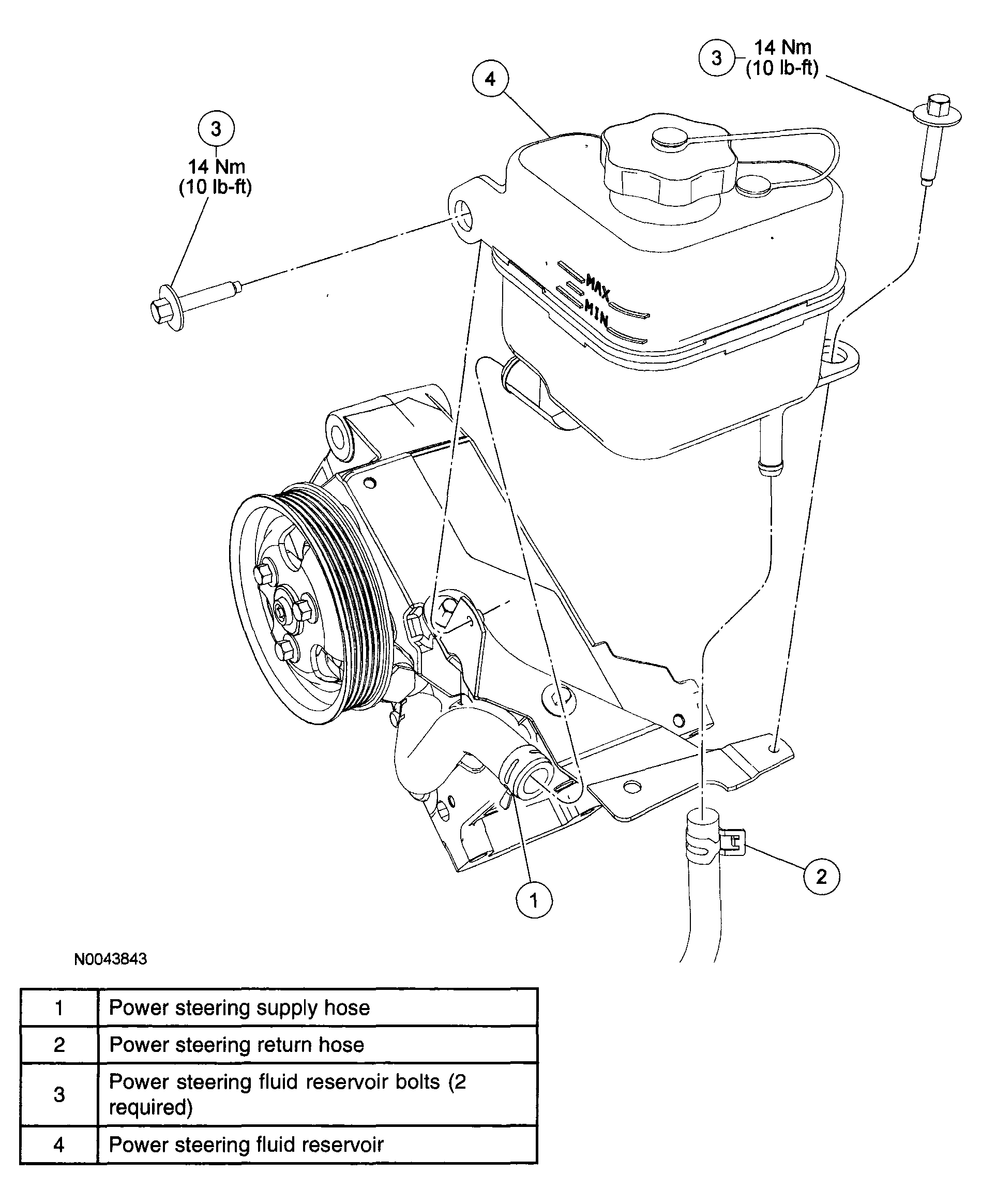

Fig 2: Removing/Installing Power Steering Fluid Reservoir Clll Pump (4.0L Engine) With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
