Removal and Installation

NOTE:

Remove the steering wheel. See STEERING WHEEL .

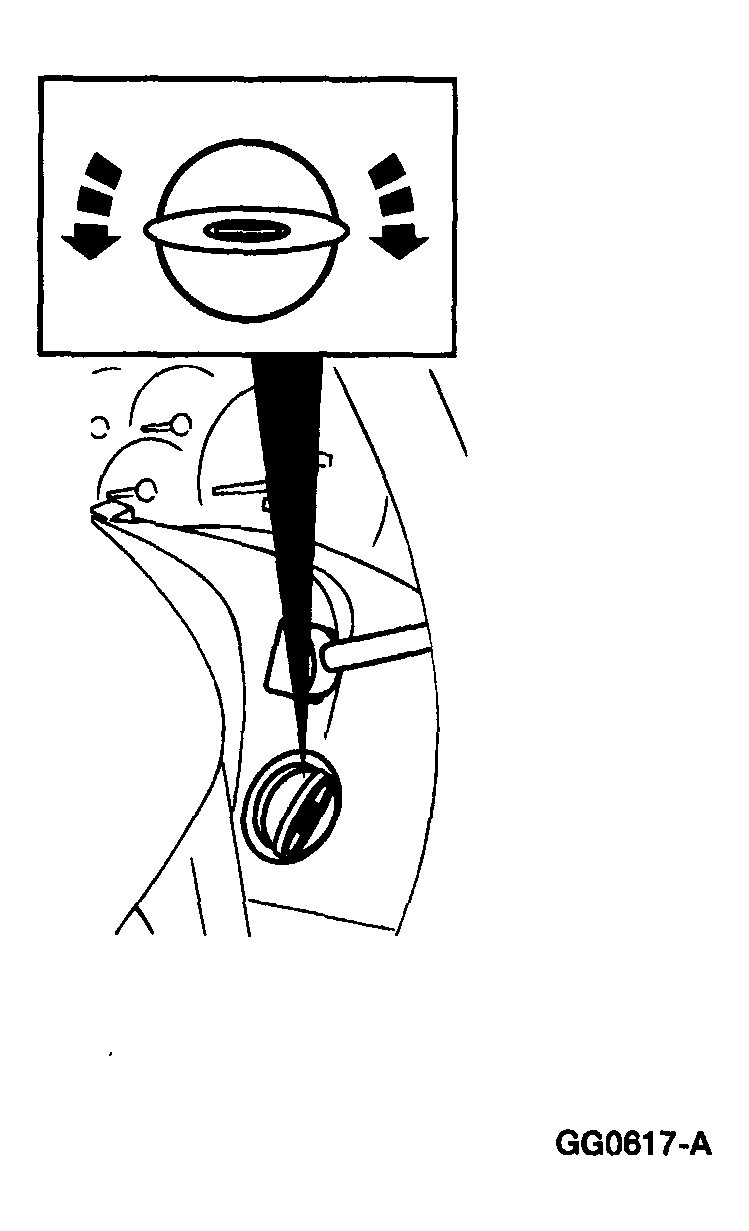

Twist off the cap from the ignition lock cylinder.

Fig 1: Removing/Installing Of Ignition Lock Cylinder - Non Functional
Courtesy of MAZDA MOTORS CORP.
NOTE:
- The lock cylinder is repaired by discarding the inoperative lock cylinder and building a new lock cylinder using the appropriate lock repair package. The lock repair package includes a detailed instruction sheet to build the new lock cylinder to the current key code of the vehicle.

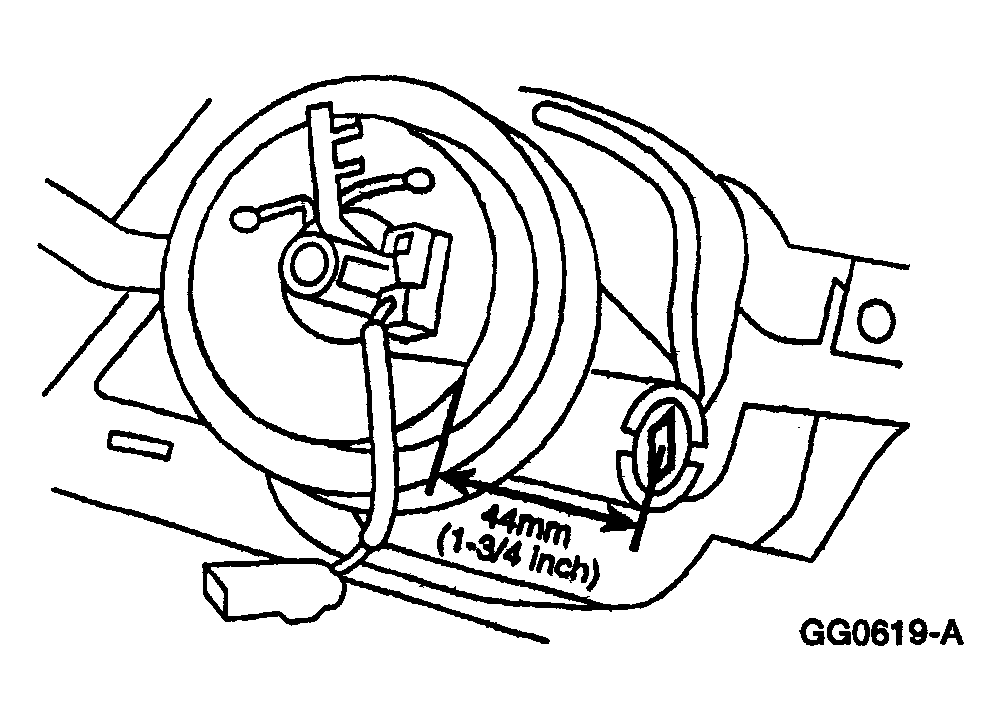

Remove the ignition lock cylinder.
- Use a 1/8-inch diameter drill bit to drill out the lock cylinder retaining pin.
- Use a 3/8-inch drill bit to drill down the middle of the ignition lock key slot until the ignition lock cylinder breaks loose.
- Remove and discard the ignition lock cylinder and clean the drill shavings from the steering column.

  Fig 2: Removing Ignition Lock Cylinder
  Courtesy of MAZDA MOTORS CORP.
Remove the bearing retainer.

Fig 3: Removing Bearing Retainer
Courtesy of MAZDA MOTORS CORP.
Remove the bearing and gear.
- Thoroughly clean all drill shavings from the steering column and inspect it for damage.

  Fig 4: Removing Bearing And Gear
  Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
- Install a new ignition lock cylinder.
- Verify ignition lock cylinder operation.
