Safety Belt Retractor - Front 4-Door, Cab Plus: Notes

NOTE:

• LH shown, RH similar.

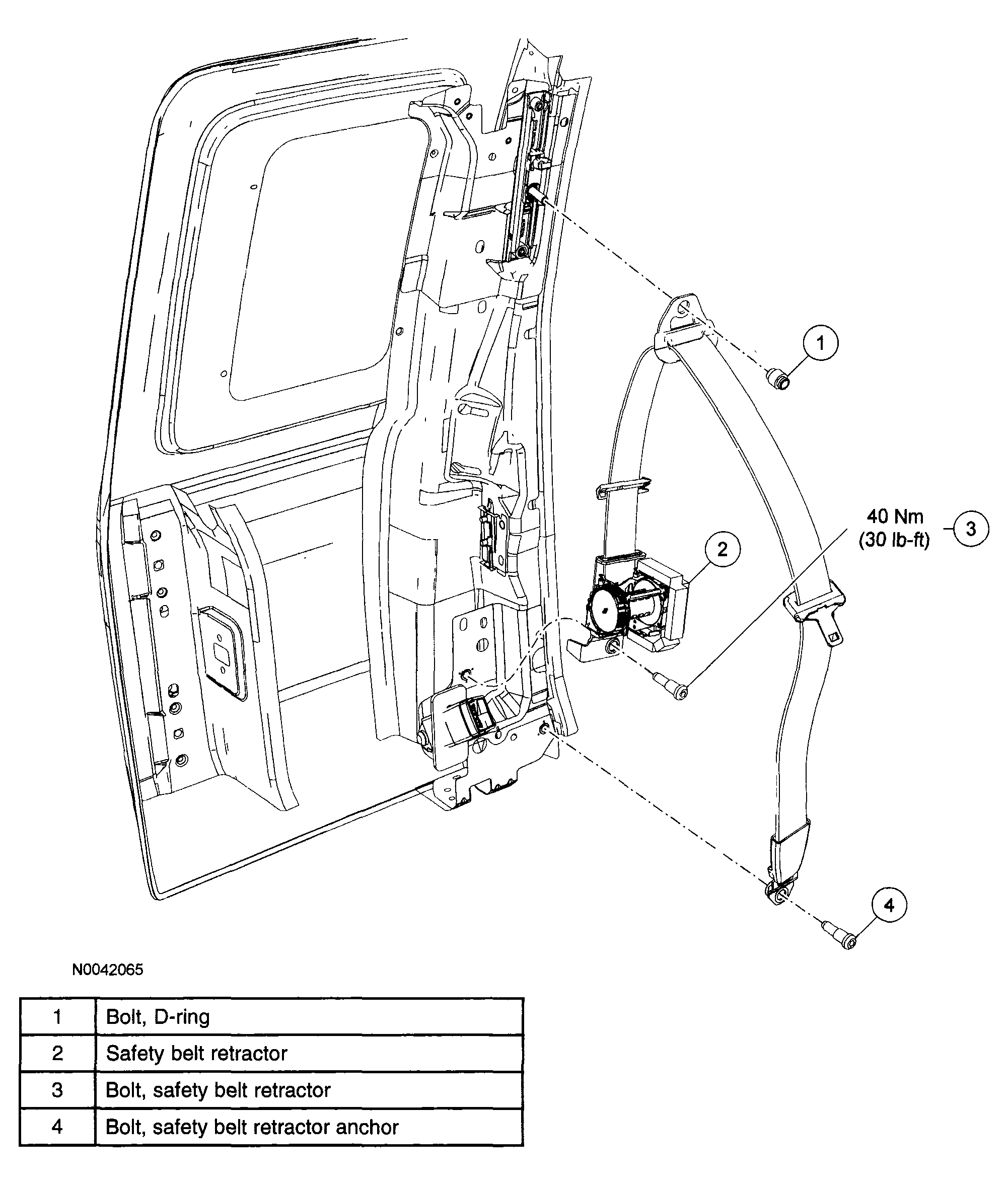

Fig 1: Removing & Installing Safety Belt Retractor - Front 4-Door With Torque Specifications

Courtesy of MAZDA MOTORS CORP.
