Removal and Installation

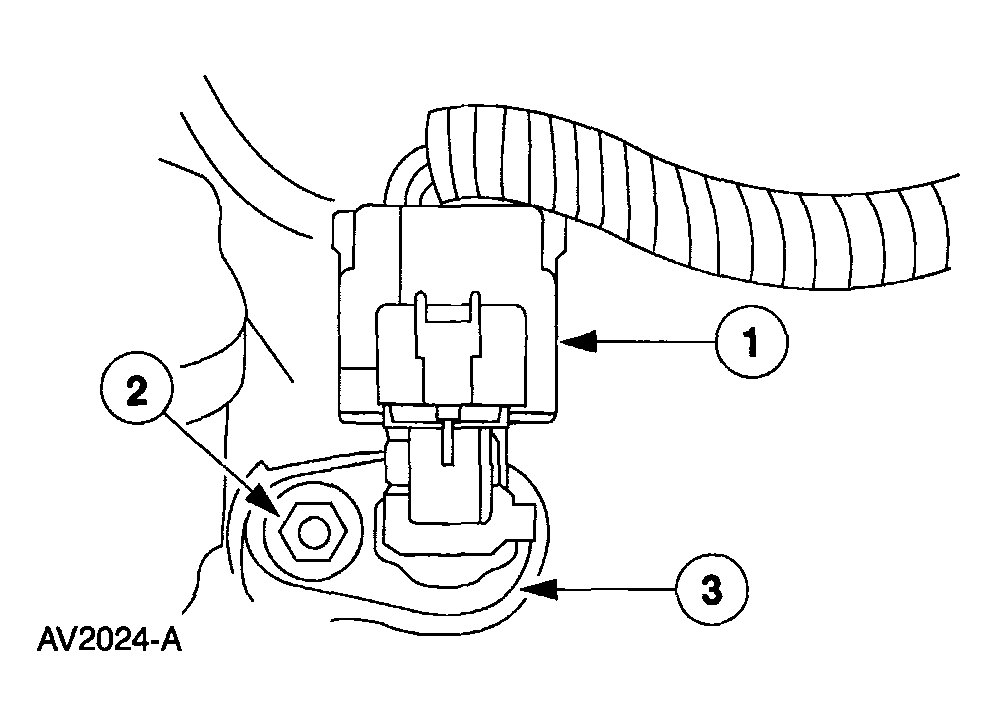

Fig 1: Removing Camshaft Position (CMP) Sensor
G04308372Courtesy of MAZDA MOTORS CORP.
  1. Remove the camshaft position (CMP) sensor.
    1. Disconnect the electrical connector.
    2. Remove the bolt.
    3. Remove the sensor.

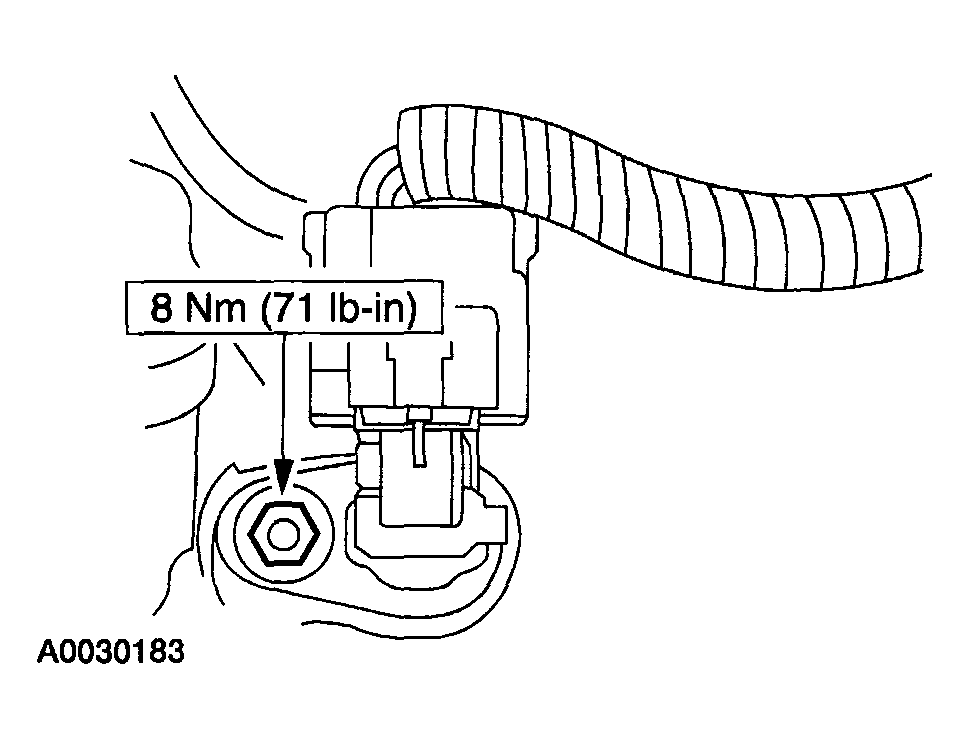

    Fig 2: Installing Camshaft Position Sensor
    G04308373Courtesy of MAZDA MOTORS CORP.
  2. To install, reverse the removal procedure.
