Home >> Mazda >> 2006 >> B3000 Base, Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> Control System (Body & Accessories) >> Smart Junction Box (SJB) >> Notes

Smart Junction Box (SJB): Notes

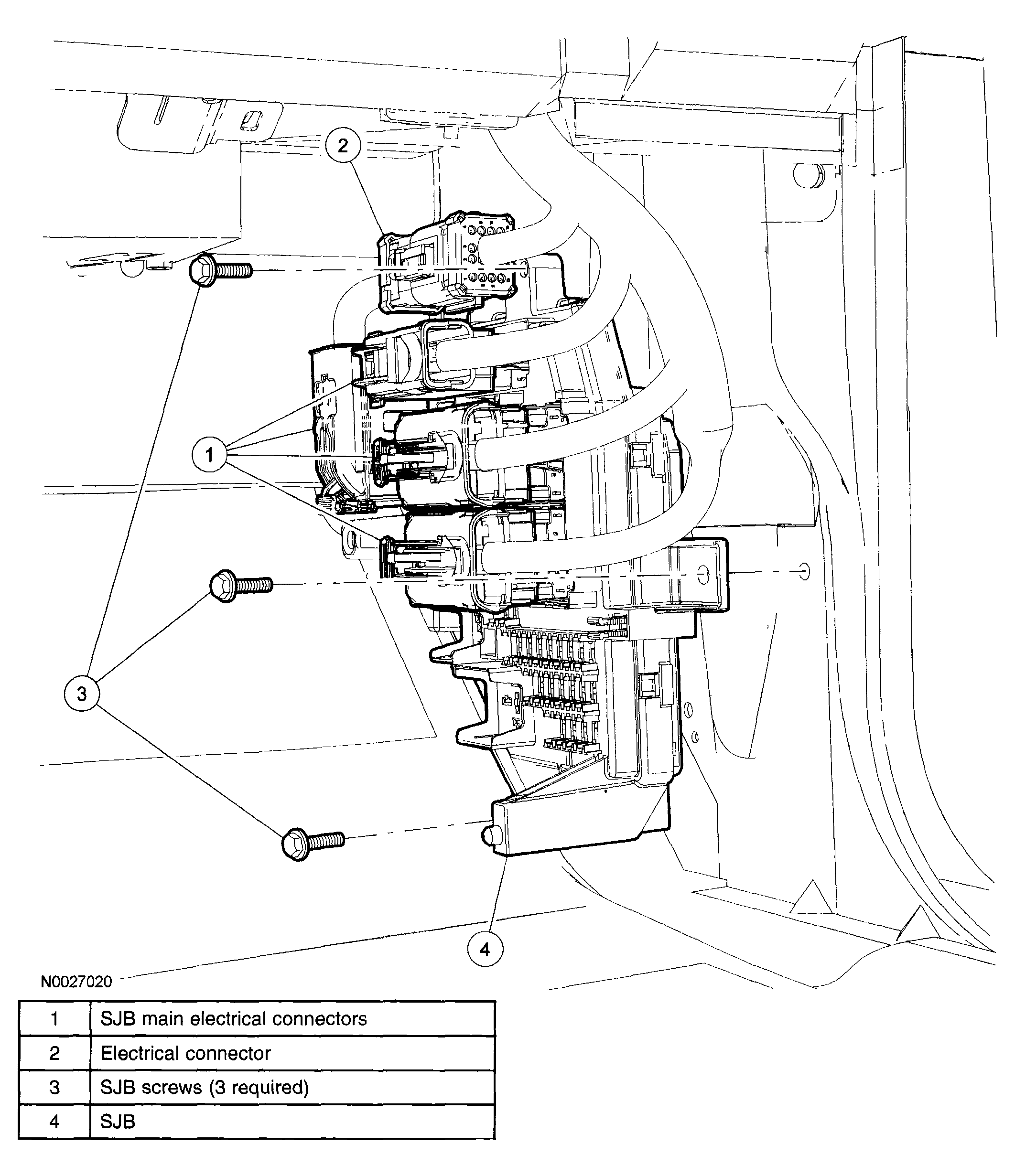

Fig 1: Identifying Smart Junction Box (SJB)

G04310580

Courtesy of MAZDA MOTORS CORP.
