Driver Door Power Door Lock Switch Inspection

  1. Remove the driver door lock switch.
  2. Inspect for continuity between the driver door lock switch terminals using an ohmmeter.

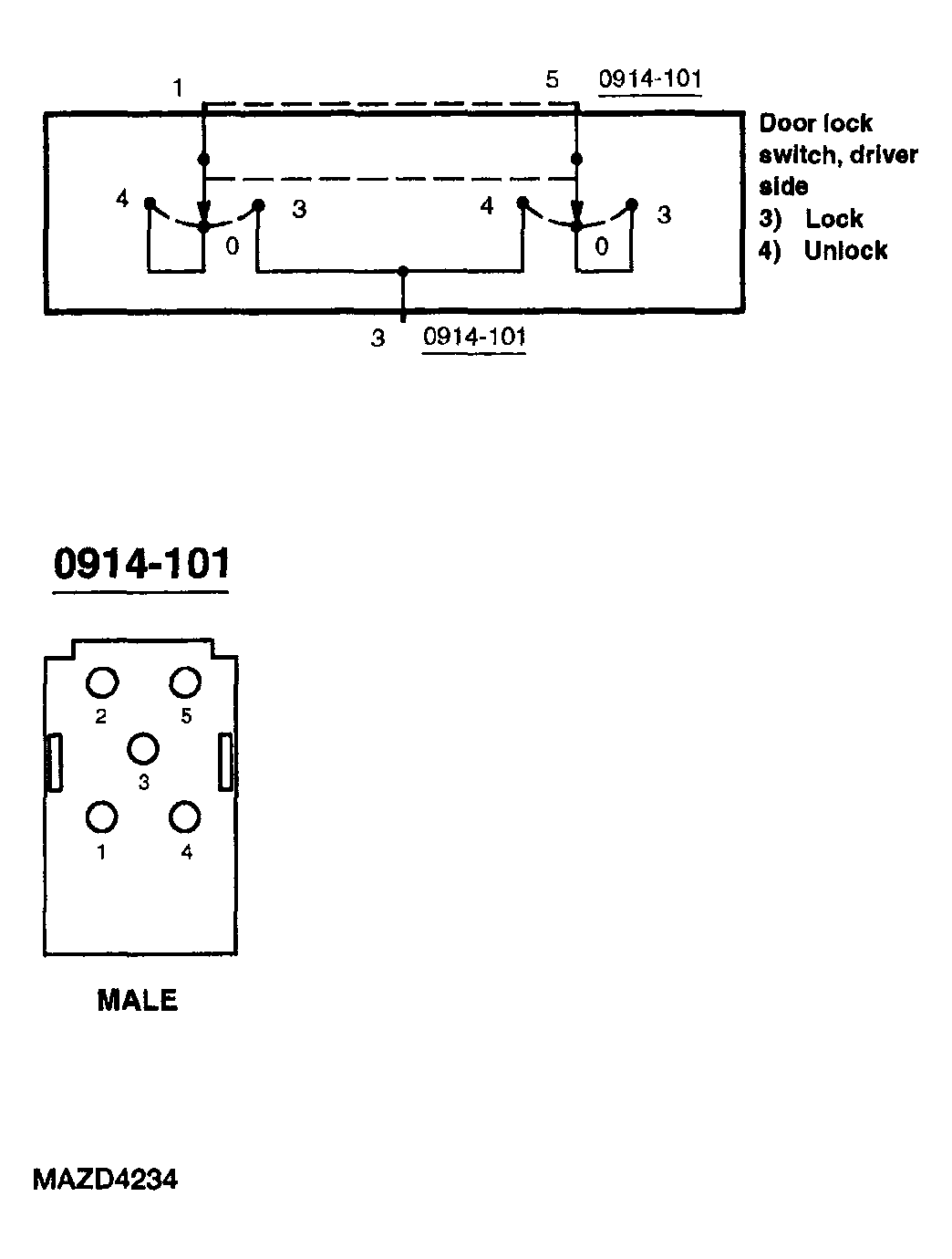

    Fig 1: Inspecting Driver Door Lock Switch
    G04310425Courtesy of MAZDA MOTORS CORP.

    Inspection

    DRIVER DOOR POWER DOOR LOCK SWITCH INSPECTION CHART

    Circuit to test Connect self-powered test light or ohmmeter to terminals Move switch to these positions A good switch will indicate
    Door lock switch 1 and 3 Lock Closed circuit
    Unlock Open circuit
    Neutral Open circuit
    5 and 3 Lock Open circuit
    Unlock Closed circuit
    Neutral Open circuit
  3. If not as specified, replace the driver door lock switch.
