Connector End Views - Control Systems

CONTROL SYSTEMS CONNECTOR END VIEWS

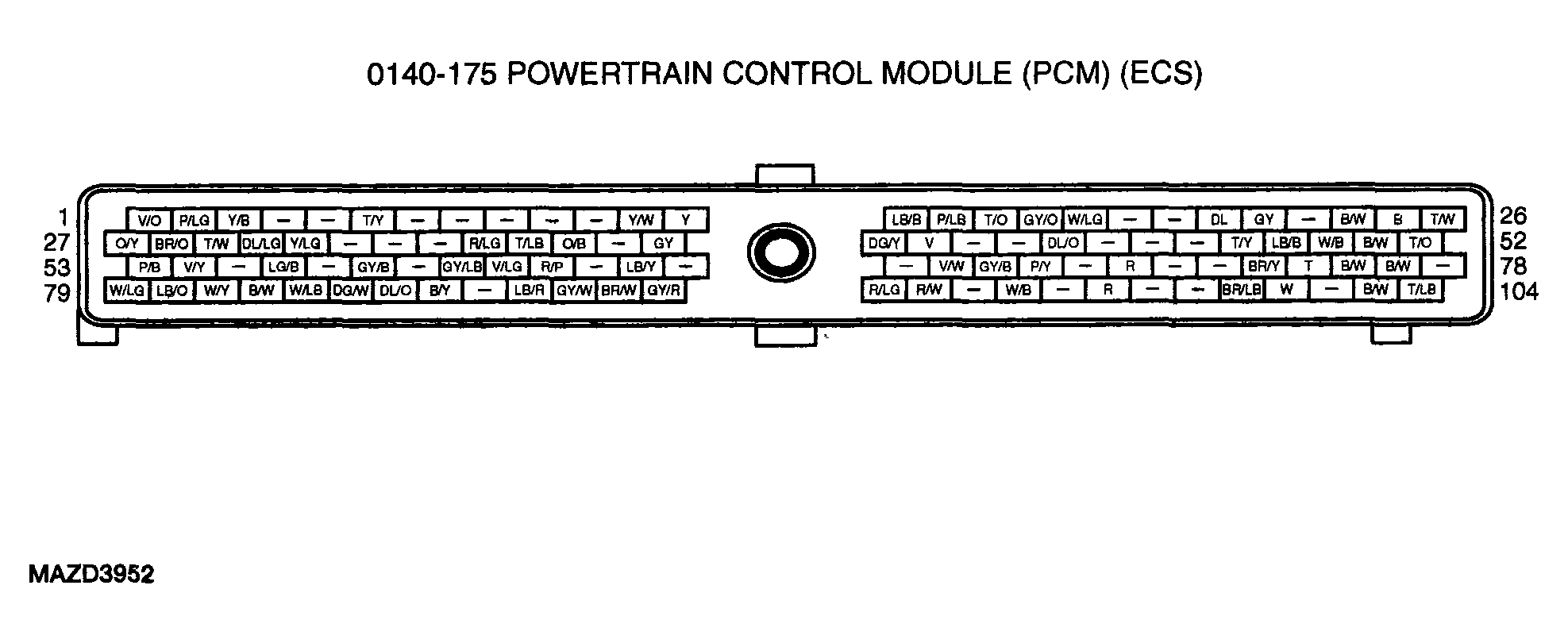

G04310141

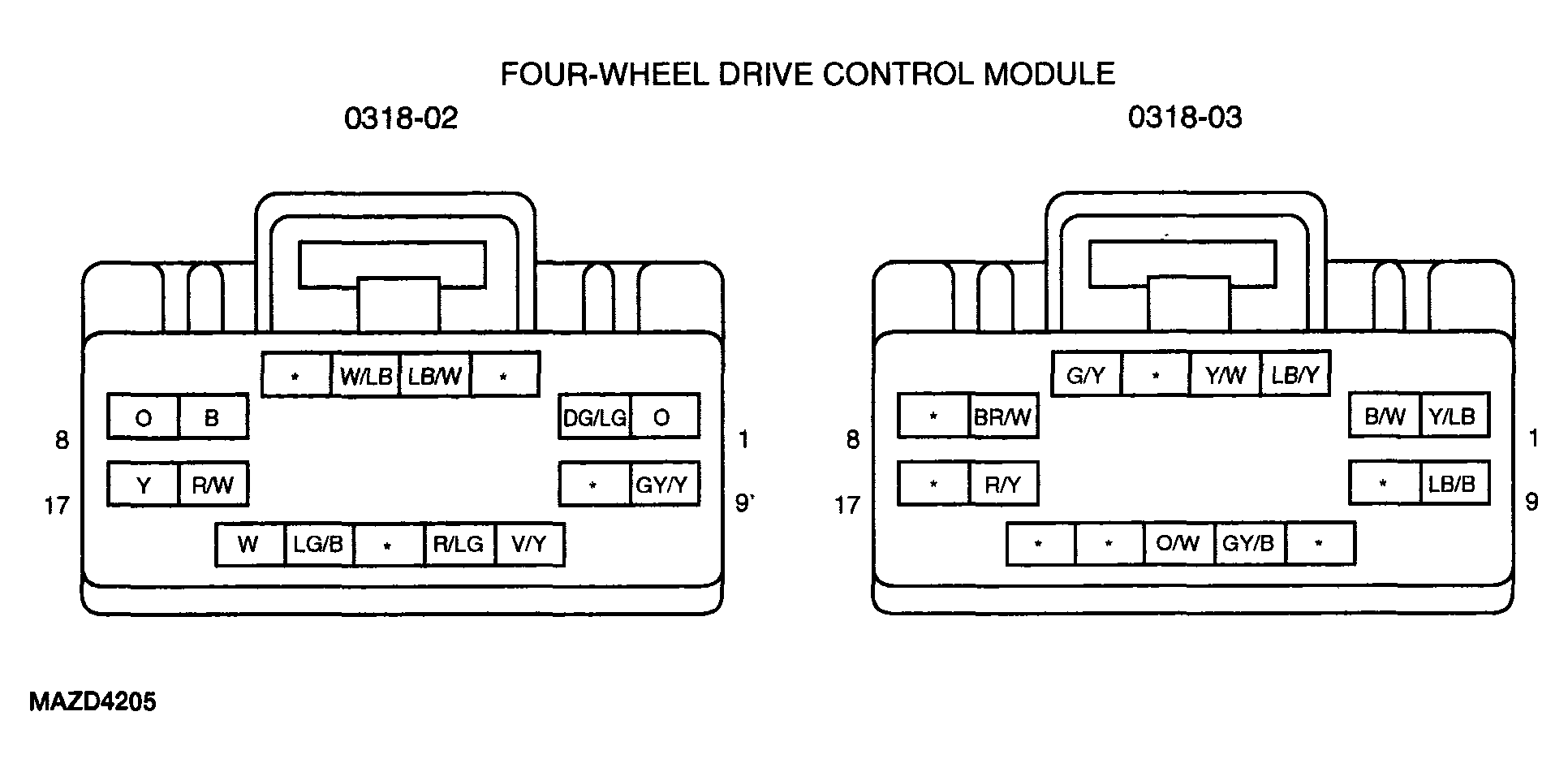

G04310142

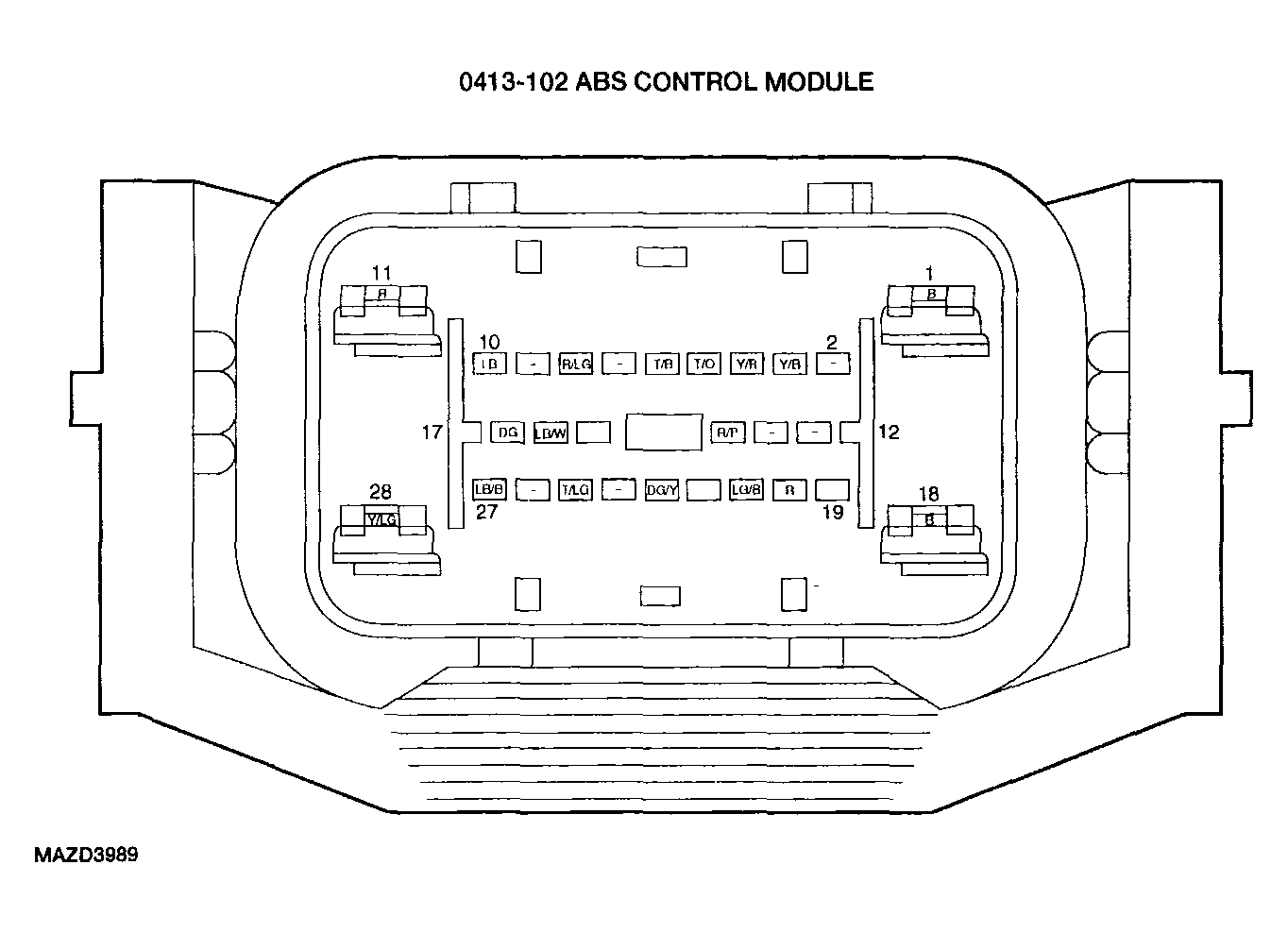

G04310143

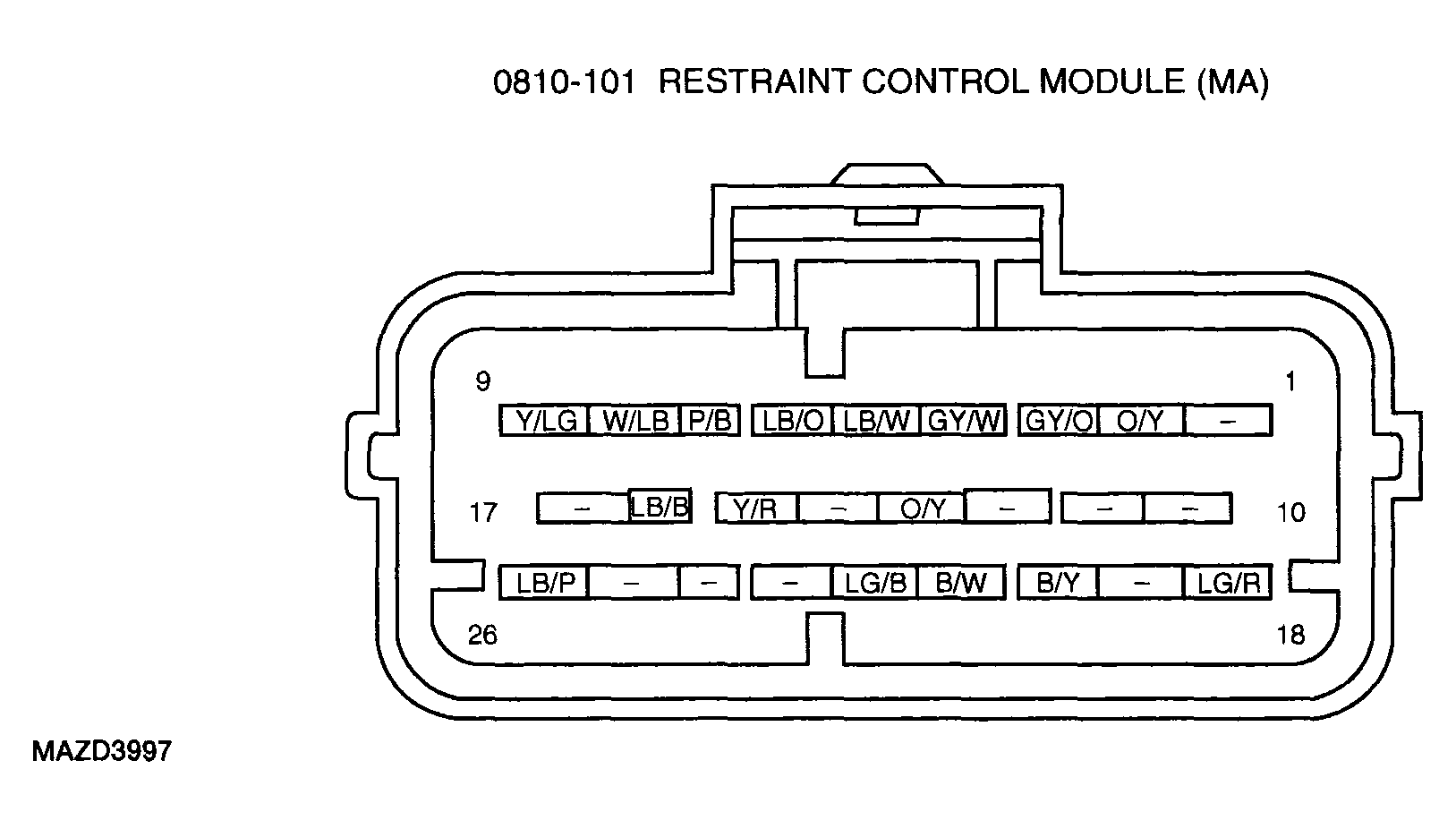

G04310144

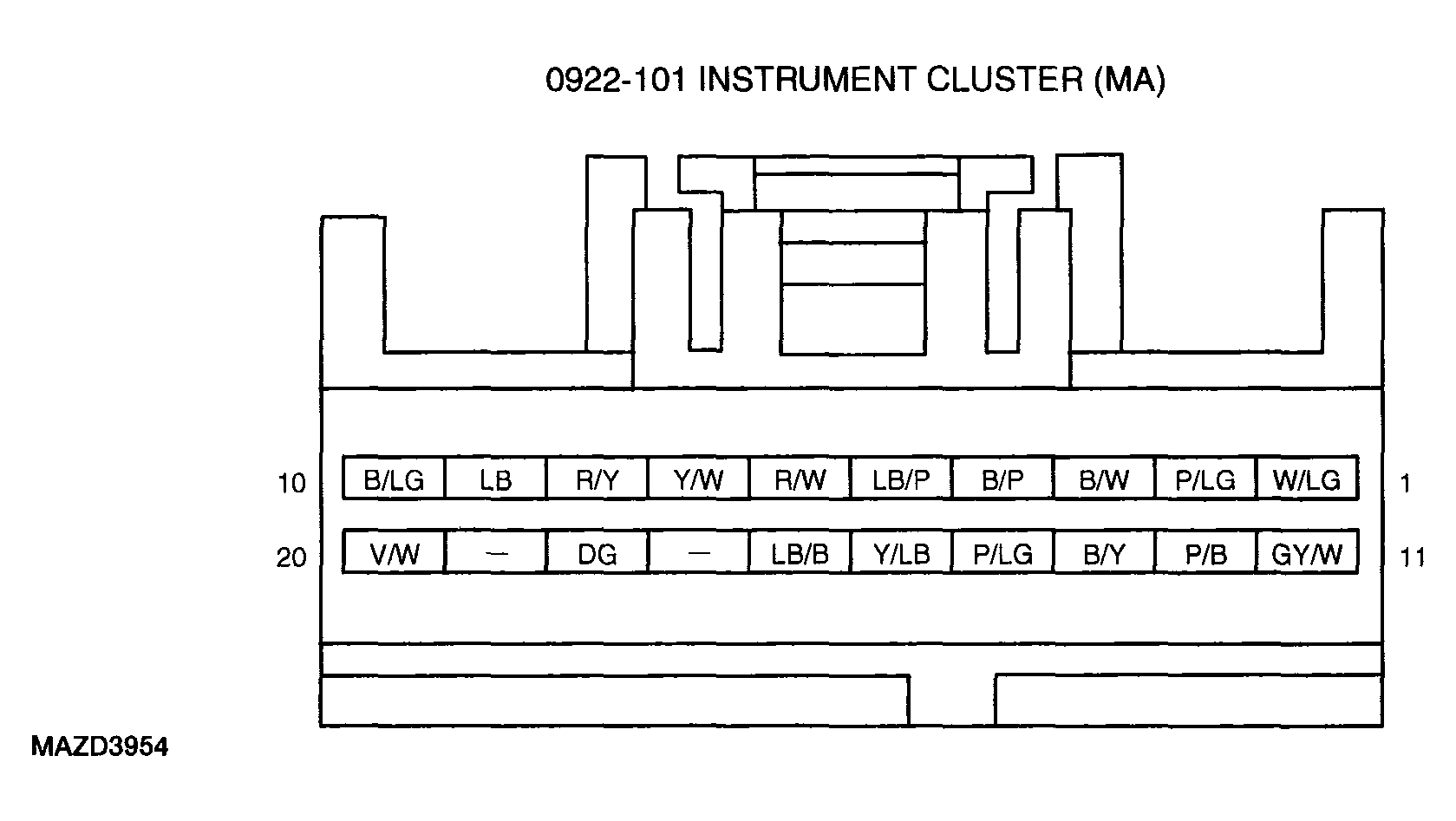

G04310145

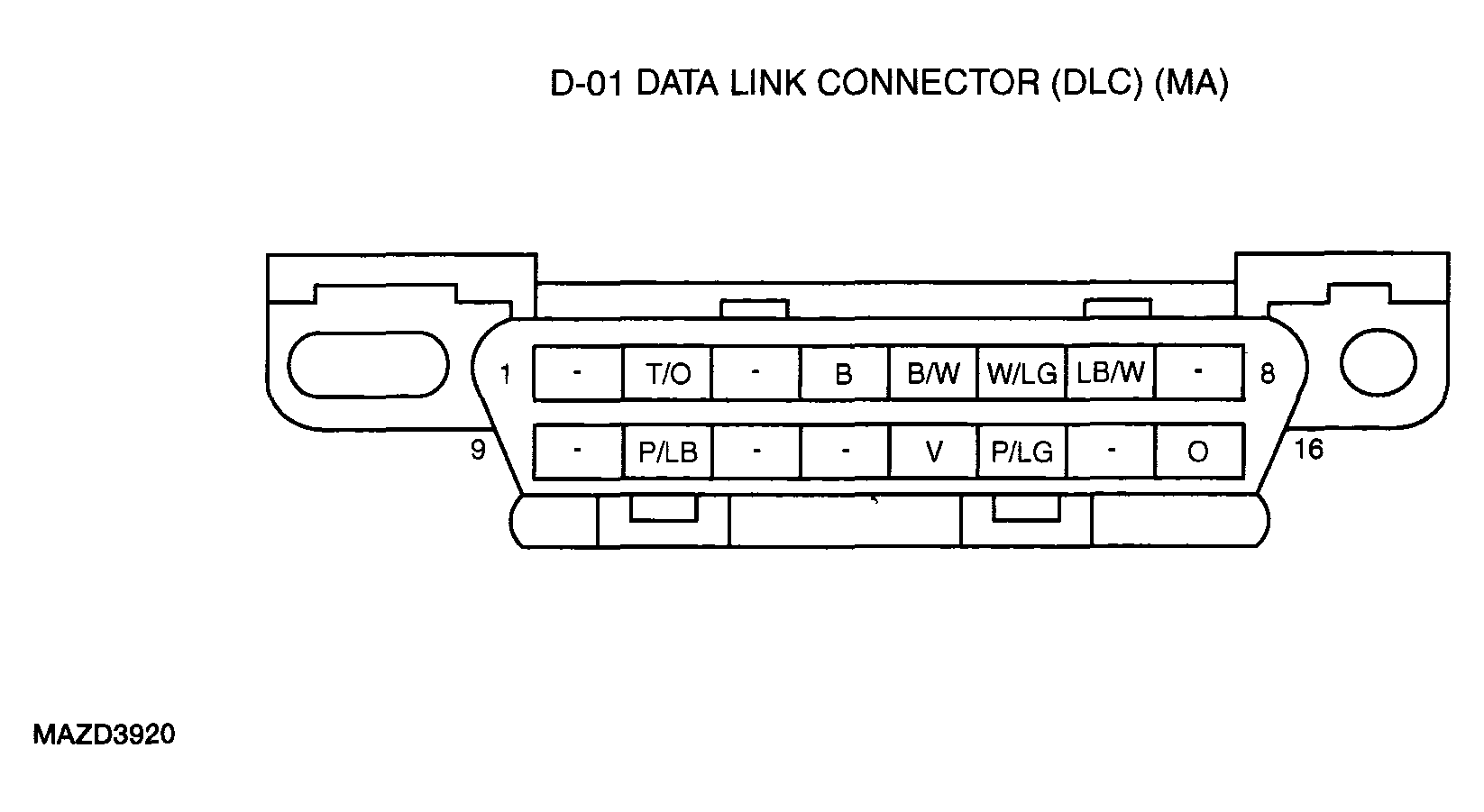

G04310146

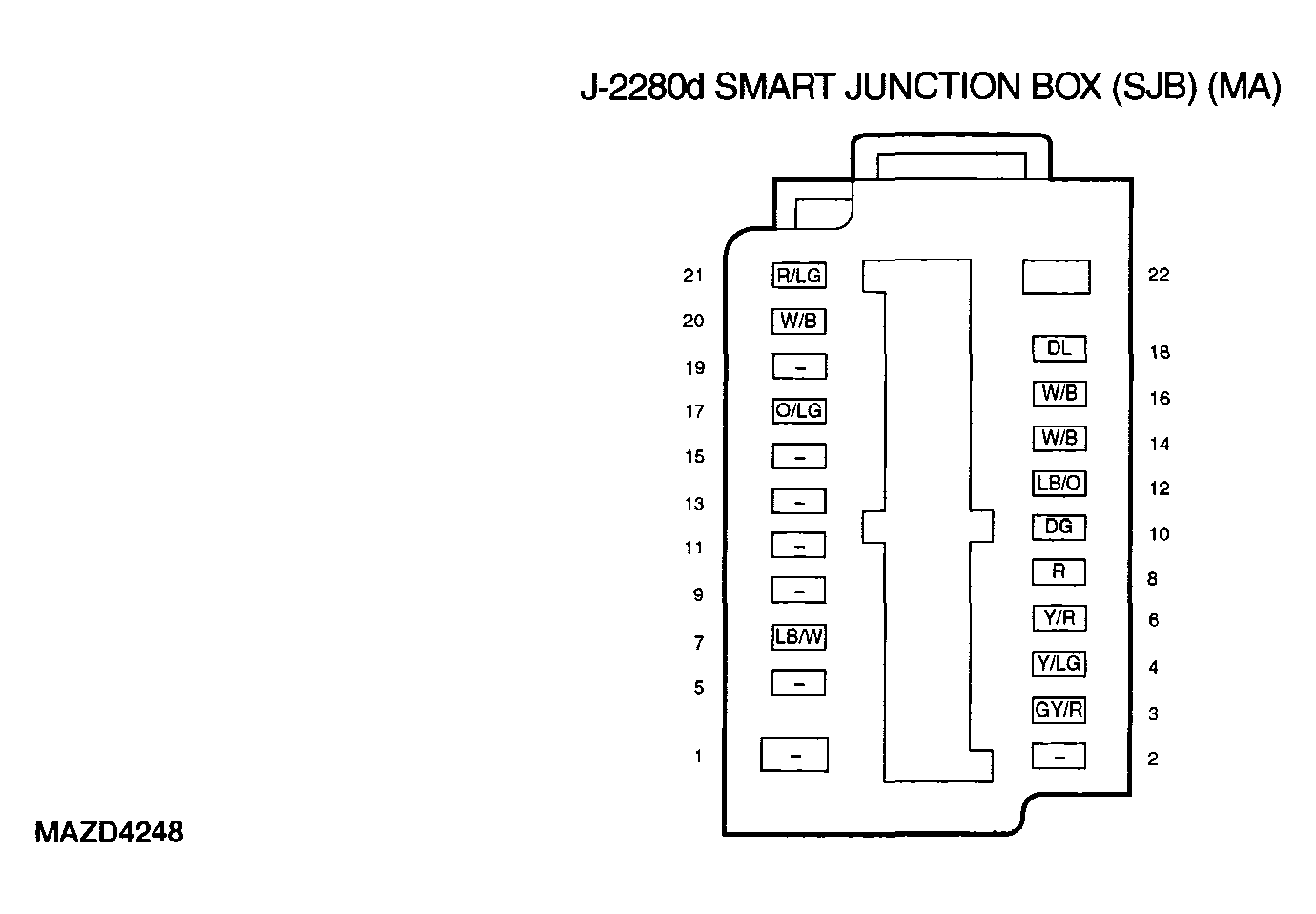

G04310147
